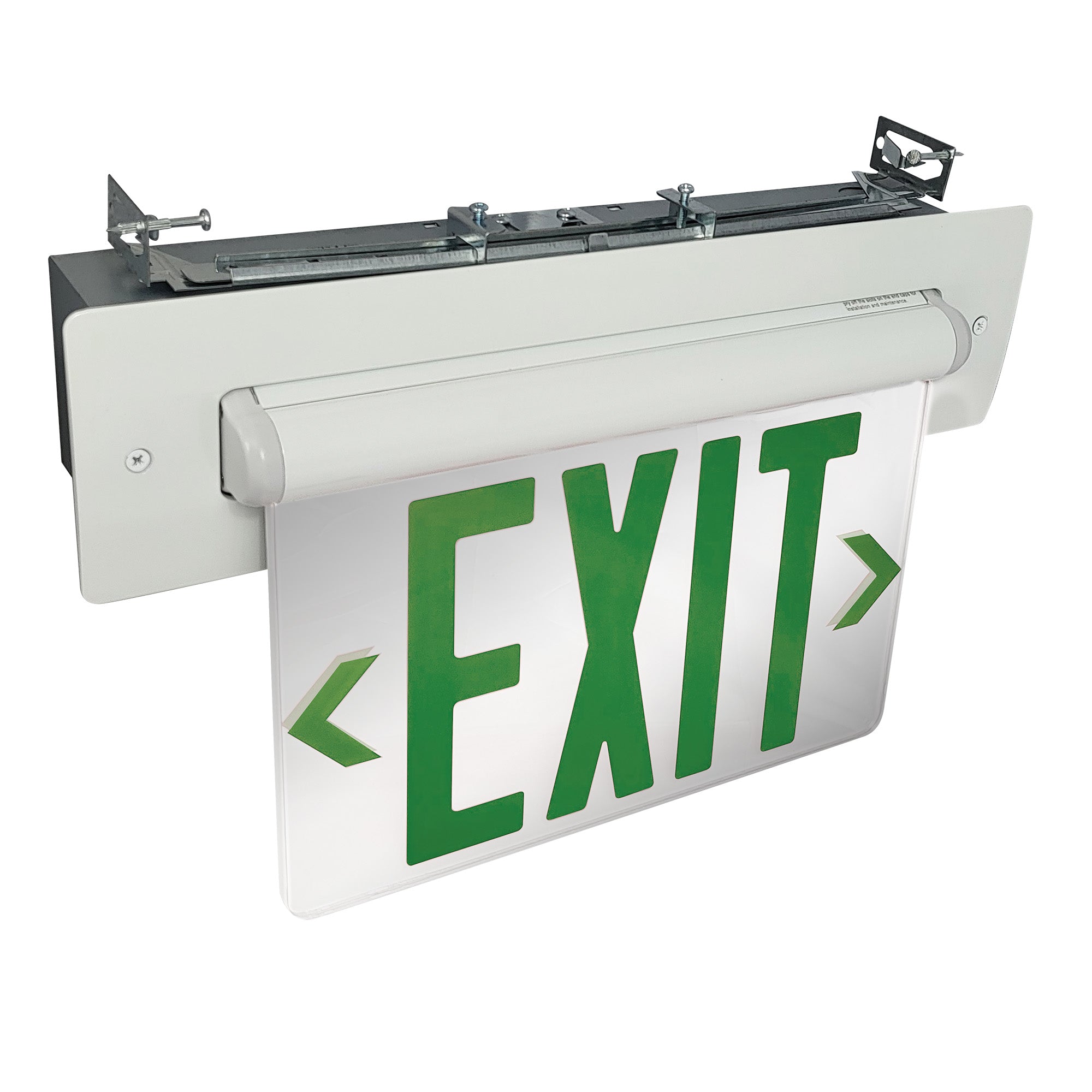

Details of the Nora Lighting NX-815-LEDG2MW Recessed Adjustable LED Edge-Lit Exit Sign, Battery Backup, 6" Green Letters, Double Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-815-LEDG2MW Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency signage solution designed to provide clear, code-compliant exit identification while maintaining a clean and sophisticated appearance. Featuring a double-face mirrored acrylic panel, bright 6-inch green EXIT lettering, and a sleek white housing, this recessed LED exit sign delivers excellent visibility from multiple directions, making it ideal for commercial buildings, offices, hotels, healthcare facilities, educational institutions, museums, galleries, and retail environments. Its elegant mirrored acrylic design blends seamlessly into contemporary architectural spaces while ensuring reliable emergency guidance.

Engineered with advanced edge-lit LED technology, the NX-815-LEDG2MW produces bright, uniform illumination while consuming minimal energy. The adjustable face can be positioned from 0° to 90°, allowing installation on walls, ceilings, or sloped ceilings to accommodate a variety of project requirements. The recessed galvanized steel housing conceals wiring and electrical components, creating a refined, low-profile appearance that complements modern interiors.

For dependable emergency operation, this model includes a replaceable Ni-Cad battery backup that provides a minimum of 90 minutes of illumination during power outages. Dual-voltage 120/277V input compatibility, integrated test button, charge indicator, and advanced surge and short-circuit protection help ensure long-term reliability and simplified maintenance. UL Listing and compliance with NEC, NFPA, and California Title 20 standards make this fixture an excellent choice for professional life-safety installations.

Key Features

• Recessed adjustable LED edge-lit exit sign
• Double-face mirrored acrylic panel for visibility from multiple directions
• Bright 6-inch green EXIT lettering for clear emergency guidance
• White housing with a clean architectural design
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling installations
• Energy-efficient long-life LED illumination
• Replaceable Ni-Cad battery backup included
• Provides a minimum of 90 minutes of emergency operation during power failures
• Dual-voltage 120/277V input compatibility
• Recessed galvanized steel housing conceals wiring and components
• Rounded and finished acrylic panel edges for an elegant appearance
• High-charge/ready indicator light with integrated test button
• Isolated surge and short-circuit protection
• Deep-discharge battery protection circuitry
• Includes directional chevrons for flexible exit configurations
• Ideal for offices, hotels, hospitals, schools, museums, galleries, and retail facilities
• UL Listed and compliant with NEC, NFPA, and California Title 20 requirements
• LED system rated for approximately 25 years of operation

Specifications

• Brand: Nora Lighting
• Model: NX-815-LEDG2MW
• Series: NX-815 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: Battery Backup
• Face Configuration: Double Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Green
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3W Normal Operation / 5W Emergency Operation
• Battery Type: Replaceable Ni-Cad
• Emergency Runtime: 90 Minutes
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Wall or Ceiling Mount
• Housing Construction: Galvanized Steel
• Testing Features: Test Button and Charge Indicator
• Protection: Surge, Short-Circuit, Brown-Out, and Deep-Discharge Protection
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Warranty: 5-Year Limited Warranty
