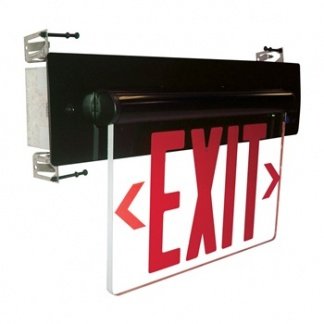

Details of the Nora Lighting NX-814-LEDRMA Recessed Adjustable LED Edge-Lit Exit Sign, 2 Circuit, 6" Red Letters, Single Face, Mirrored Acrylic, Aluminum Housing

The Nora Lighting NX-814-LEDRMA Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency egress solution designed for commercial environments where aesthetics and safety are equally important. Featuring a single-face mirrored acrylic panel, vivid 6-inch red EXIT lettering, and a sleek natural aluminum housing, this recessed exit sign delivers outstanding visibility while maintaining a clean, sophisticated appearance. Its low-profile design makes it ideal for office buildings, museums, galleries, hotels, healthcare facilities, educational institutions, and upscale retail spaces.

Utilizing advanced edge-lit LED technology, the fixture illuminates embedded EXIT lettering with bright, uniform light while consuming minimal energy. The adjustable acrylic face can be positioned from 0° to 90°, allowing flexible installation on walls, ceilings, or sloped surfaces. The recessed galvanized steel housing conceals wiring and electrical components, creating a seamless architectural look that complements modern interior designs.

Unlike battery-backup models, the NX-814-LEDRMA features a dedicated 2-circuit design that accepts a secondary input from an external Emergency Power Supply (EPS), generator, or alternate emergency power source. This configuration provides reliable operation in facilities that utilize centralized emergency power systems. The fixture also includes a test button, charge/ready indicator, surge protection, and brown-out protection to ensure dependable performance and code compliance.

Built with long-life LED technology rated for approximately 25 years of operation, the NX-814-LEDRMA offers low maintenance requirements and dependable illumination for critical life-safety applications. UL Listing and compliance with NEC, NFPA, State & Municipal codes, and California Title 20 standards make it an excellent choice for professional commercial installations.

Key Features

• Recessed adjustable LED edge-lit exit sign
• 2-circuit design for connection to external emergency power systems
• Bright 6-inch red EXIT lettering for high visibility
• Single-face mirrored acrylic panel with premium architectural styling
• Natural aluminum housing for a modern commercial appearance
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling installations
• Energy-efficient long-life LED illumination
• Secondary input for EPS, generator, or alternative emergency power source
• Dual-voltage 120/277V input compatibility
• Recessed galvanized steel housing conceals wiring and components
• Rounded and polished acrylic panel edges for a refined finish
• High-charge/ready indicator light with integrated test button
• Isolated surge, short-circuit, and brown-out protection
• Includes adhesive-mounted directional chevrons
• Ideal for offices, hotels, hospitals, schools, museums, galleries, and retail facilities
• Approximately 25-year LED life expectancy
• UL Listed and compliant with NEC, NFPA, State & Municipal codes, and California Title 20
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NX-814-LEDRMA
• Series: NX-814 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: 2-Circuit Emergency Power Input
• Face Configuration: Single Face
• Panel Material: Mirrored Acrylic
• Housing Finish: Natural Aluminum
• Letter Color: Red
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3W Normal Operation / 5W Emergency Operation
• Emergency Circuit: Secondary Input for EPS or Generator
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Wall or Ceiling Mount
• Housing Construction: Galvanized Steel with Die-Cast Cover Plate
• Testing Features: Test Button and Ready Indicator
• Protection: Surge, Short-Circuit, Brown-Out, and Deep-Discharge Protection
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Life Expectancy: Approximately 25 Years
• Warranty: 5-Year Limited Warranty
