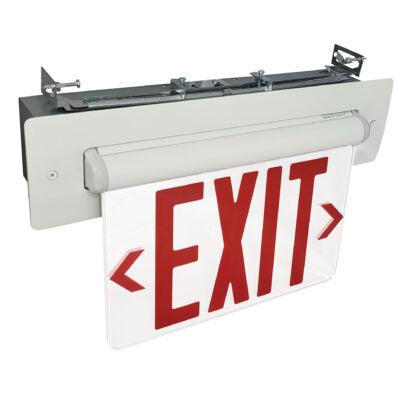

Details of the Nora Lighting NX-814-LEDRCA Recessed Adjustable LED Edge-Lit Exit Sign, 2 Circuit, 6" Red Letters, Single Face, Clear Acrylic, Aluminum Housing

The Nora Lighting NX-814-LEDRCA Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency signage solution designed for commercial and institutional environments. Featuring bright 6-inch red EXIT lettering, a crystal-clear acrylic panel, and a sleek natural aluminum housing, this recessed exit sign delivers exceptional visibility while maintaining a clean, contemporary appearance. Its sophisticated design makes it ideal for office buildings, hotels, healthcare facilities, educational institutions, airports, museums, galleries, and upscale retail spaces where both aesthetics and safety are essential.

Utilizing advanced LED edge-lighting technology, the NX-814-LEDRCA provides bright, uniform illumination with low energy consumption and long-lasting performance. The clear acrylic panel creates a refined floating-effect appearance, while the adjustable face rotates from 0° to 90°, allowing flexible installation on walls, ceilings, or sloped surfaces. The recessed housing conceals wiring and electrical components, resulting in a streamlined architectural finish that complements modern interiors.

This 2-circuit exit sign is specifically engineered for buildings that utilize centralized emergency power systems. A dedicated secondary circuit enables connection to an Emergency Power Supply (EPS), inverter, or backup generator, ensuring continuous operation during power outages. Dual-voltage 120/277V compatibility allows seamless integration into a wide range of commercial electrical systems.

Built for dependable life-safety performance, the NX-814-LEDRCA features long-life LED technology, integrated surge protection, short-circuit protection, and brown-out protection. UL Listed and compliant with NEC, NFPA, State and Municipal codes, and California Title 20 requirements, this exit sign provides reliable, code-compliant emergency egress guidance for demanding commercial applications.

Key Features

• Recessed adjustable LED edge-lit exit sign
• Bright 6-inch red EXIT lettering for maximum visibility
• Single-face clear acrylic panel with elegant architectural styling
• Natural aluminum housing for a modern commercial appearance
• Adjustable face rotates from 0° to 90° for versatile mounting options
• Energy-efficient LED illumination with long operating life
• 2-circuit design for connection to external emergency power systems
• Compatible with emergency generators, inverters, and EPS systems
• Dual-voltage 120/277V input compatibility
• Recessed installation conceals wiring and electrical components
• Premium edge-lit acrylic technology for uniform illumination
• Includes field-selectable directional chevrons
• Surge, short-circuit, and brown-out protection
• Suitable for commercial, hospitality, healthcare, retail, educational, and institutional applications
• Low-maintenance LED operation
• UL Listed for safety and reliability
• Complies with NEC, NFPA, State & Municipal Codes, and California Title 20
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NX-814-LEDRCA
• Series: NX-814 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation Type: 2-Circuit Emergency Power System
• Face Configuration: Single Face
• Panel Material: Clear Acrylic
• Housing Finish: Natural Aluminum
• Letter Color: Red
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Emergency Power Source: External EPS, Inverter, or Generator
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Wall or Ceiling Mount
• Housing Material: Galvanized Steel with Aluminum Trim
• Directional Indicators: Field-Selectable Chevrons Included
• Protection Features: Surge Protection, Short-Circuit Protection, Brown-Out Protection
• Certification: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Application: Commercial, Office, Hospitality, Healthcare, Retail, Educational, and Institutional Buildings
• Warranty: 5-Year Limited Warranty
