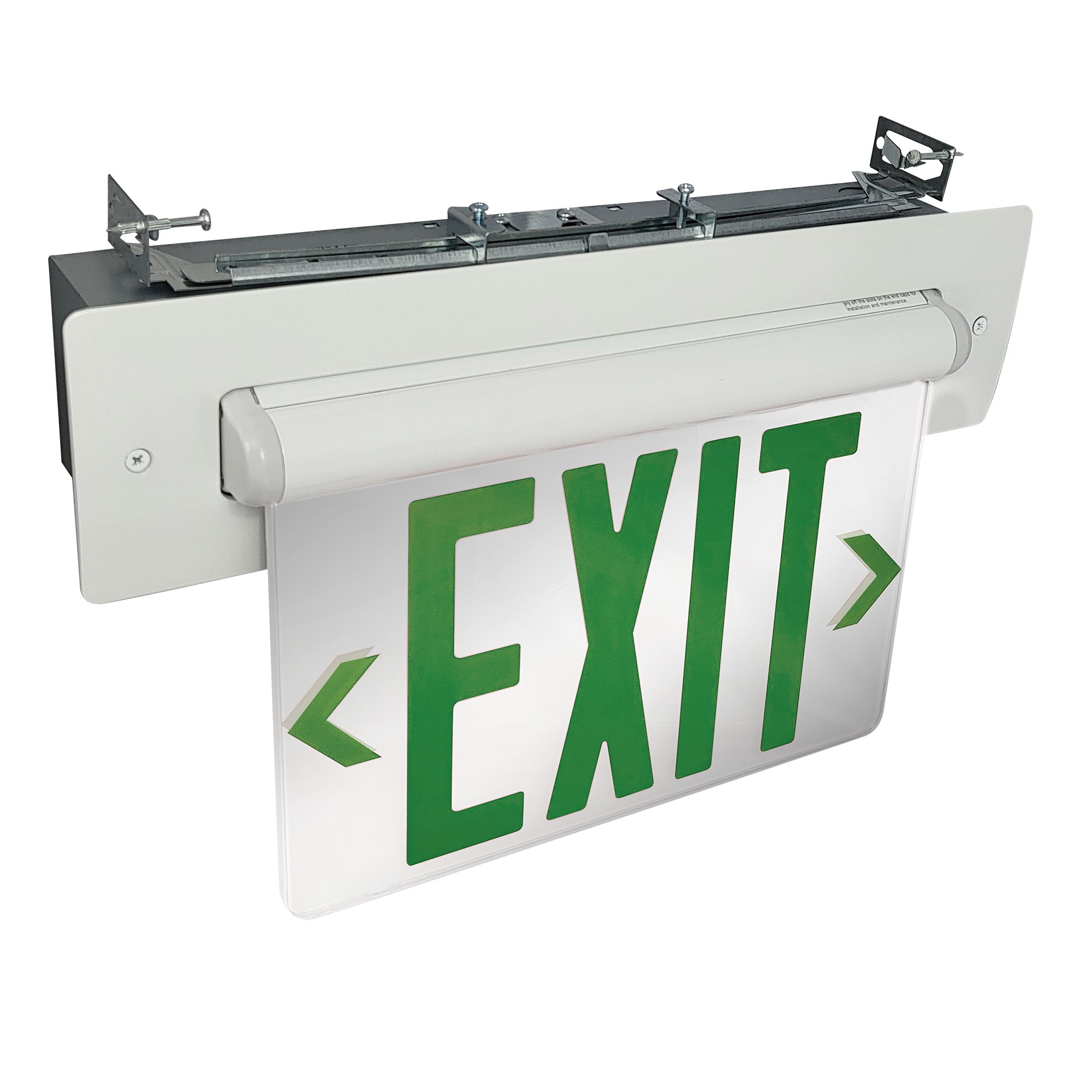

Details of the Nora Lighting NX-814-LEDGMW Recessed Adjustable LED Edge-Lit Exit Sign, 2 Circuit, 6" Green Letters, Single Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-814-LEDGMW Recessed Adjustable LED Edge-Lit Exit Sign is a sophisticated architectural emergency signage solution designed to provide clear, code-compliant exit identification while complementing modern interior spaces. Featuring bright 6-inch green EXIT lettering, a premium mirrored acrylic panel, and a clean white housing, this recessed LED exit sign delivers exceptional visibility with a refined, low-profile appearance. It is an ideal choice for office buildings, hotels, healthcare facilities, educational institutions, museums, galleries, airports, and upscale retail environments where aesthetics and safety are equally important.

Engineered with advanced edge-lit LED technology, the NX-814-LEDGMW provides brilliant, uniform illumination while maintaining excellent energy efficiency. The mirrored acrylic face features rounded, polished edges that create an elegant architectural look, while the adjustable face can be positioned from 0° to 90° for wall, ceiling, or sloped-ceiling installations. The recessed galvanized steel housing conceals wiring and internal components, creating a clean, seamless appearance that integrates beautifully into contemporary interiors.

This 2-circuit model is specifically designed for facilities utilizing centralized emergency power systems. A dedicated secondary input allows connection to an Emergency Power Supply (EPS), inverter, or backup generator, ensuring continuous operation during emergency conditions. Long-life LED technology, integrated test functionality, and advanced circuit protection provide dependable performance and reduced maintenance requirements.

UL Listed and compliant with NEC, NFPA, State & Municipal regulations, and California Title 20 energy-efficiency standards, the NX-814-LEDGMW offers reliable emergency egress identification for demanding commercial applications.

Key Features

• Recessed adjustable LED edge-lit exit sign
• Bright 6-inch green EXIT lettering for enhanced visibility
• Single-face mirrored acrylic panel with premium architectural styling
• White housing for a clean, contemporary appearance
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling installations
• Energy-efficient long-life LED illumination
• 2-circuit design for external emergency power integration
• Compatible with EPS systems, inverters, and backup generators
• Dual-voltage 120/277V input
• Recessed design conceals wiring and electrical components
• Mirrored acrylic panel with rounded, polished edges
• High-charge/ready indicator light with integrated test button
• Surge, short-circuit, and brown-out protection
• Includes field-installable directional chevrons
• Approximately 25-year LED life expectancy
• Ideal for commercial, hospitality, healthcare, educational, and institutional facilities
• UL Listed and code compliant
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NX-814-LEDGMW
• Series: NX-814 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: 2-Circuit Emergency Power System
• Face Configuration: Single Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Green
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3W Normal Operation / 5W Emergency Operation
• Emergency Power Input: External EPS, Inverter, or Generator
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Ceiling or Wall Mount
• Housing Construction: Galvanized Steel with Die-Cast Cover Plate
• Testing Features: Test Button and Ready Indicator
• Protection: Surge, Short-Circuit, Brown-Out, and Deep-Discharge Protection
• Included Accessories: Directional Chevrons
• Life Expectancy: Approximately 25 Years
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Warranty: 5-Year Limited Warranty
