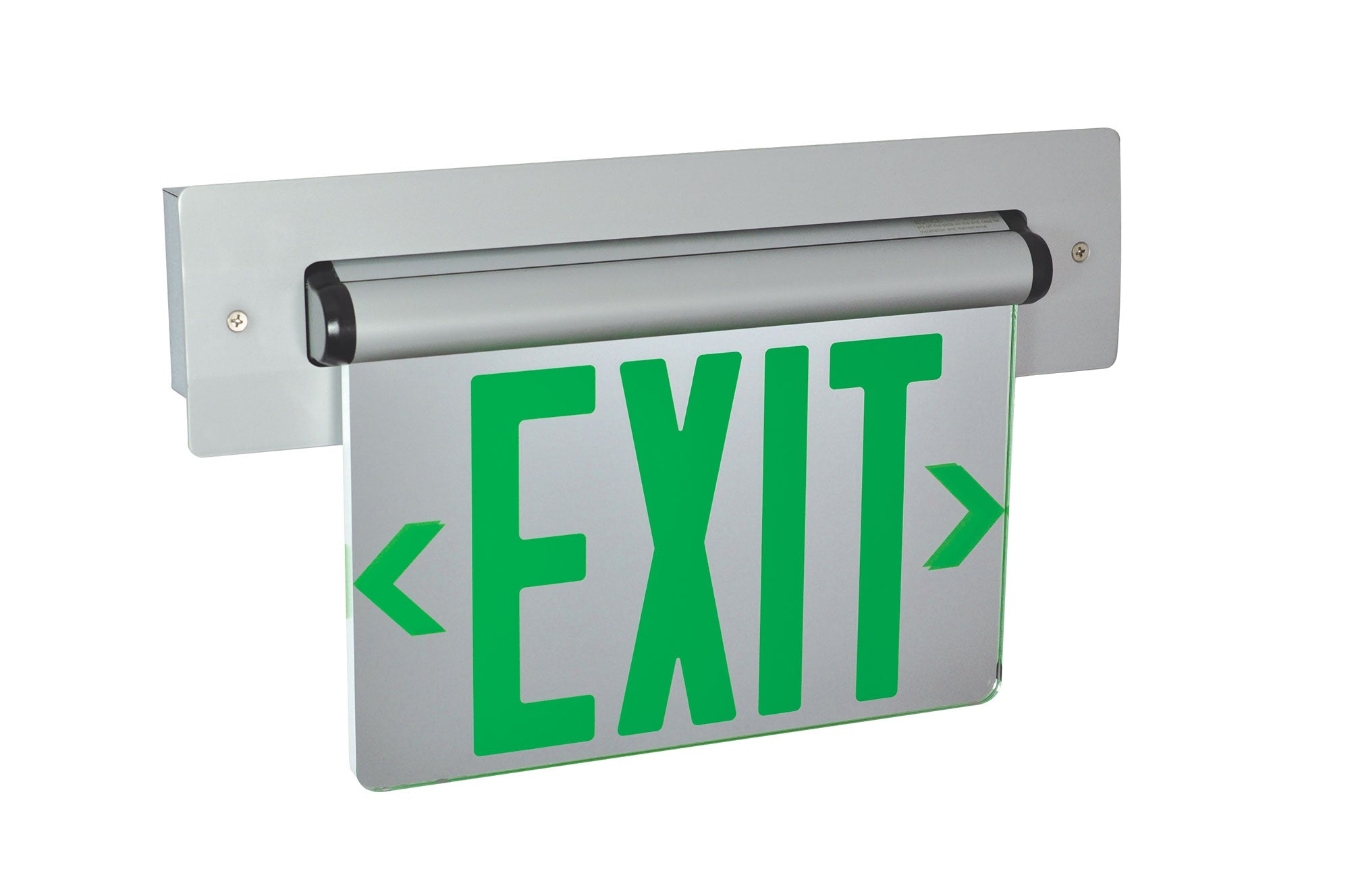

Nora Lighting NX-814-LEDGMA EXIT REC ADJ 2C 1F GRN/MIR ALU

Details of the Nora Lighting NX-814-LEDGMA EXIT REC ADJ 2C 1F GRN/MIR ALU

Ideal for architectural applications where aesthetic and minimal profile appearance is desired. LED sources within the adjustable housing cast a brilliant red or green illumination on letters embedded inside the acrylic face.

BODY
12″ Width X 8-1/4″ Height X 4″ Depth
Extruded aluminum housing, acrylic panel, and die-cast cover plate

HOUSING
Galvanized steel construction

FACE
Single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6″ lettering inside face. Stick-on chevrons included.

MOUNTING
24-1/2″ Bar Hangers included

ELECTRICAL
Voltage: 120V or 277V dual input
Power Consumption: 3 watts normal / 5 watts emergency operation
Light Source: Long life LED sources
Testing: High-charge/ready operation indicator light with test button
Circuitry Protection: Short circuit and brown-out protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination

EMERGENCY CIRCUIT
2nd Circuit for input for external EPS or other alternative emergency power source or generator

LABELS AND LISTINGS
UL Listed
NEC
NFPA
State & Municipal
Certified to the energy efficiency standards of California Title 20

Specification

• Brand: Nora Lighting
• SKU: NX-814-LEDGMA
• UPC: 732180704330
• Product Line: 5010
