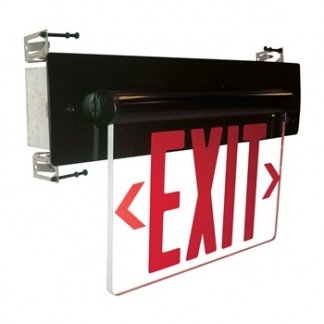

Details of the Nora Lighting NX-813-LEDRCA Recessed Adjustable LED Edge-Lit Exit Sign, AC Only, 6" Red Letters, Single Face, Clear Acrylic, Aluminum Housing

The Nora Lighting NX-813-LEDRCA Recessed Adjustable LED Edge-Lit Exit Sign combines modern architectural styling with dependable exit identification for commercial and institutional applications. Featuring bright 6-inch red EXIT lettering, a crystal-clear acrylic face panel, and a sleek natural aluminum housing, this recessed LED exit sign delivers outstanding visibility while maintaining a clean, sophisticated appearance. Designed for offices, hotels, museums, galleries, healthcare facilities, educational institutions, and retail environments, it seamlessly integrates into contemporary interiors while meeting life-safety requirements.

Utilizing advanced edge-lit LED technology, the NX-813-LEDRCA provides crisp, uniform illumination with exceptional energy efficiency. The clear acrylic panel features rounded, polished edges that create an elegant floating-sign effect, enhancing the fixture's architectural appeal. Its adjustable face can be positioned from 0° to 90°, making it suitable for wall, ceiling, or sloped-ceiling installations. The recessed galvanized steel housing conceals wiring and electrical components, creating a streamlined, low-profile appearance.

As an AC-only exit sign, the NX-813-LEDRCA is designed for facilities operating on standard building power or centralized emergency systems. Long-life LED technology is rated for approximately 25 years of operation with minimal maintenance requirements, helping reduce operating costs over time. Dual-voltage 120/277V compatibility, integrated test functionality, and protective circuitry ensure reliable performance in demanding commercial environments.

UL Listed and compliant with NEC, NFPA, State and Municipal regulations, and California Title 20 energy-efficiency standards, this recessed edge-lit exit sign provides a dependable and code-compliant emergency egress solution for professional installations.

Key Features

• Recessed adjustable LED edge-lit exit sign
• AC-only operation for standard building power systems
• Bright 6-inch red EXIT lettering for high visibility
• Single-face clear acrylic panel with modern architectural styling
• Natural aluminum housing for a sleek commercial appearance
• Advanced edge-lit LED technology for uniform illumination
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling applications
• Energy-efficient long-life LED light source
• Recessed installation conceals wiring and electrical components
• Rounded and polished acrylic panel edges for an elegant finish
• Dual-voltage 120/277V input compatibility
• High-charge/ready indicator light with integrated test button
• Short-circuit and brown-out protection
• Includes adhesive-mounted directional chevrons
• Approximately 25-year LED life expectancy
• Ideal for offices, hotels, healthcare facilities, schools, museums, galleries, and retail spaces
• UL Listed and code compliant
• California Title 20 certified
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NX-813-LEDRCA
• Series: NX-813 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: AC Only
• Face Configuration: Single Face
• Panel Material: Clear Acrylic
• Housing Finish: Natural Aluminum
• Letter Color: Red
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3.8W Normal Operation
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Ceiling or Wall Mount
• Housing Construction: Galvanized Steel with Die-Cast Cover Plate
• Included Accessories: Directional Chevrons
• Testing Features: Ready Indicator and Test Button
• Protection: Short-Circuit and Brown-Out Protection
• Life Expectancy: Approximately 25 Years
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Construction Type: Commercial / Architectural
• Warranty: 5-Year Limited Warranty
