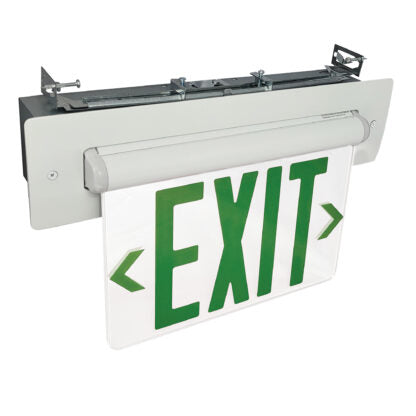

Details of the Nora Lighting NX-813-LEDGMW Recessed Adjustable LED Edge-Lit Exit Sign, AC Only, 6" Green Letters, Single Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-813-LEDGMW Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency egress solution designed to provide clear exit identification while enhancing modern interior spaces. Featuring bright 6-inch green EXIT lettering, a single-face mirrored acrylic panel, and a clean white housing, this recessed LED exit sign offers outstanding visibility and a sophisticated, low-profile appearance. Ideal for offices, hotels, healthcare facilities, educational institutions, museums, galleries, airports, and retail environments, it combines safety, efficiency, and contemporary design in one professional-grade fixture.

Engineered with advanced edge-lit LED technology, the NX-813-LEDGMW delivers crisp, uniform illumination while consuming minimal energy. The mirrored acrylic face panel creates an elegant floating-sign effect, while polished edges add a refined architectural touch. Its adjustable face rotates from 0° to 90°, allowing flexible installation on walls, ceilings, or sloped ceilings. The recessed housing conceals wiring and internal components, providing a seamless appearance that blends beautifully into modern commercial interiors.

Designed for AC-only operation, this exit sign is ideal for facilities that utilize standard building power or centralized emergency systems. Long-life LED technology provides dependable illumination for years with virtually no maintenance. Dual-voltage 120/277V compatibility ensures easy installation across a wide range of commercial applications, while built-in protection features help maintain reliable performance.

UL Listed and compliant with NEC, NFPA, State and Municipal regulations, and California Title 20 standards, the NX-813-LEDGMW provides a dependable and code-compliant emergency exit signage solution for professional installations.

Key Features

• Recessed adjustable LED edge-lit exit sign
• AC-only operation for standard building power systems
• Bright 6-inch green EXIT lettering for enhanced visibility
• Single-face mirrored acrylic panel with premium architectural styling
• White housing for a clean, modern appearance
• Advanced edge-lit LED technology for uniform illumination
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling applications
• Energy-efficient long-life LED light source
• Recessed design conceals wiring and electrical components
• Mirrored acrylic panel with polished finished edges
• Dual-voltage 120/277V input compatibility
• Includes test button and ready-operation indicator
• Built-in short-circuit and brown-out protection
• Field-installable directional chevrons included
• Approximately 25-year LED life expectancy
• Suitable for offices, hotels, hospitals, schools, museums, galleries, airports, and retail facilities
• UL Listed and code compliant
• California Title 20 compliant
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NX-813-LEDGMW
• Series: NX-813 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: AC Only
• Face Configuration: Single Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Green
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3.8W
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Wall or Ceiling Mount
• Housing Construction: Galvanized Steel
• Included Accessories: Directional Chevrons
• Testing Features: Test Button and Ready Indicator
• Protection Features: Short-Circuit Protection and Brown-Out Protection
• Life Expectancy: Approximately 25 Years
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Application: Commercial, Hospitality, Healthcare, Educational, Retail, and Institutional Buildings
• Warranty: 5-Year Limited Warranty

Download PDF File

Specification

Installation Guide
