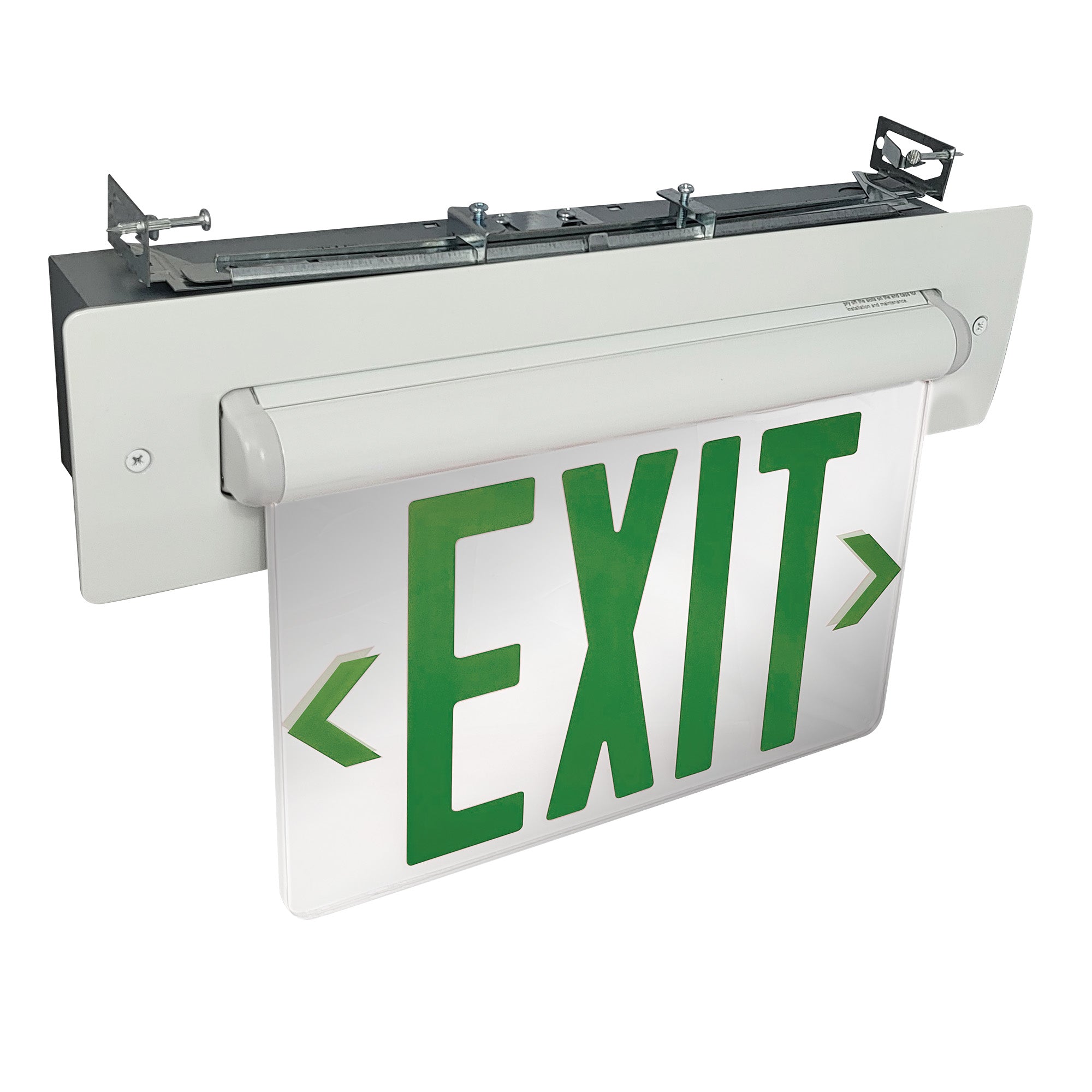

Details of the Nora Lighting NX-813-LEDG2MW Recessed Adjustable LED Edge-Lit Exit Sign, AC Only, 6" Green Letters, Double Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-813-LEDG2MW Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural exit sign designed to deliver highly visible emergency egress identification while maintaining a clean, modern appearance. Featuring bright 6-inch green EXIT lettering, a double-face mirrored acrylic panel, and a sleek white housing, this recessed LED exit sign provides excellent visibility from multiple directions, making it ideal for commercial, institutional, and hospitality environments. Its elegant edge-lit design blends seamlessly into contemporary interiors while meeting critical life-safety requirements.

Powered by advanced LED edge-lighting technology, the NX-813-LEDG2MW produces crisp, uniform illumination with exceptional energy efficiency. The mirrored acrylic panel creates a sophisticated floating-sign effect, while polished edges enhance its architectural appeal. The adjustable face rotates from 0° to 90°, allowing flexible installation on walls, ceilings, or sloped ceilings. Its recessed housing conceals wiring and electrical components, resulting in a streamlined appearance that complements modern building designs.

Designed for AC-only operation, this exit sign is ideal for facilities utilizing standard building power or centralized emergency systems. The long-life LED light source delivers dependable performance for years while reducing maintenance costs and energy consumption. Dual-voltage 120/277V compatibility provides installation flexibility across a wide range of commercial electrical systems.

UL Listed and compliant with NEC, NFPA, State and Municipal codes, and California Title 20 energy-efficiency standards, the NX-813-LEDG2MW offers a reliable and code-compliant solution for professional emergency exit signage applications.

Key Features

• Recessed adjustable LED edge-lit exit sign
• AC-only operation for standard building power systems
• Double-face mirrored acrylic panel for visibility from both directions
• Bright 6-inch green EXIT lettering for clear emergency guidance
• White housing with clean architectural styling
• Advanced edge-lit LED technology for uniform illumination
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling installations
• Energy-efficient long-life LED light source
• Recessed design conceals wiring and electrical components
• Mirrored acrylic panel with polished finished edges
• Dual-voltage 120/277V input compatibility
• Includes test button and ready-operation indicator
• Built-in short-circuit and brown-out protection
• Field-installable directional chevrons included
• Approximately 25-year LED life expectancy
• Suitable for offices, hotels, hospitals, schools, airports, museums, galleries, and retail facilities
• UL Listed and code compliant
• California Title 20 compliant
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NX-813-LEDG2MW
• Series: NX-813 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: AC Only
• Face Configuration: Double Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Green
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3.8W
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Wall or Ceiling Mount
• Housing Construction: Galvanized Steel
• Included Accessories: Directional Chevrons
• Testing Features: Test Button and Ready Indicator
• Protection Features: Short-Circuit Protection and Brown-Out Protection
• Life Expectancy: Approximately 25 Years
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Application: Commercial, Hospitality, Healthcare, Educational, Retail, and Institutional Buildings
• Warranty: 5-Year Limited Warranty
