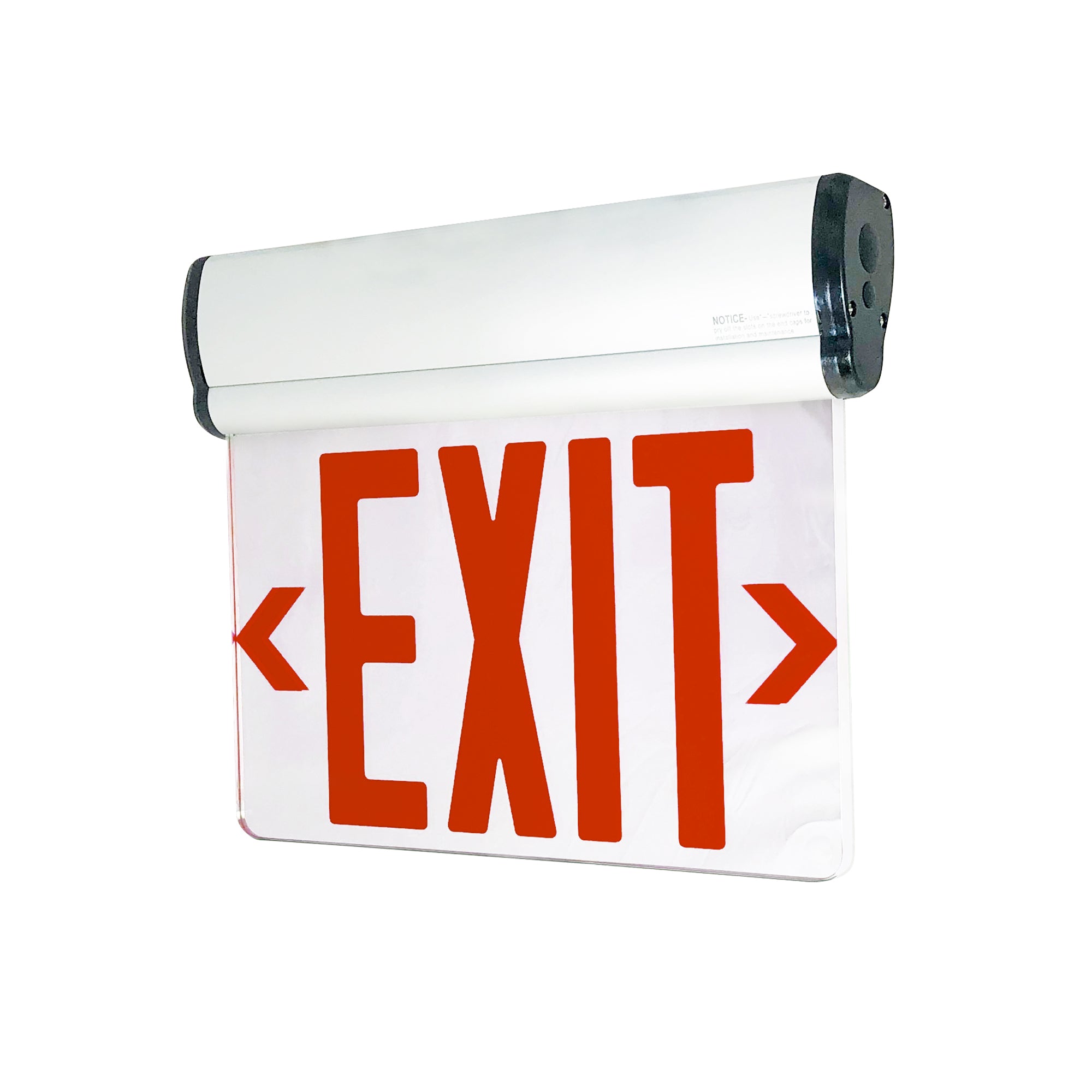

Nora Lighting NX-812-LEDR2MW EXIT ADJ BAT 2F RED/MIR WHITE

Details of the Nora Lighting NX-812-LEDR2MW EXIT ADJ BAT 2F RED/MIR WHITE

Ideal for architectural applications where aesthetic and minimal profile appearance is desired. LED sources within the adjustable housing cast a brilliant red or green illumination on letters embedded inside the acrylic face.

BODY
12³ Width X 10-5/8³ Height X 1-5/8³ Depth
Extruded aluminum housing and acrylic panel

HOUSING
2-piece snap-together aluminum extrusion holding battery, LED source, PC board, and top of acrylic face. Housing adjusts to any angle up to 90 degrees.

FACE
Single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6³ lettering inside face. Stick-on chevrons included.

MOUNTING
Universal mount to wall, ceiling or side
Mounting hardware included

ELECTRICAL
Voltage: 120V or 277V dual input
Power Consumption: 3 watts normal / 5 watts emergency operation
Light Source: Long life LED sources
Testing: High-charge/ready operation indicator light with test button
Circuitry Protection: Short circuit and brown-out protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination

BATTERY
Replaceable 90-minute Ni-Cad battery included

LABELS AND LISTINGS
UL Listed
NEC
NFPA
State & Municipal
Certified to the energy efficiency standards of California Title 20

Specification

• Brand: Nora Lighting
• SKU: NX-812-LEDR2MW
• UPC: 732180703883
• Product Line: 5010
