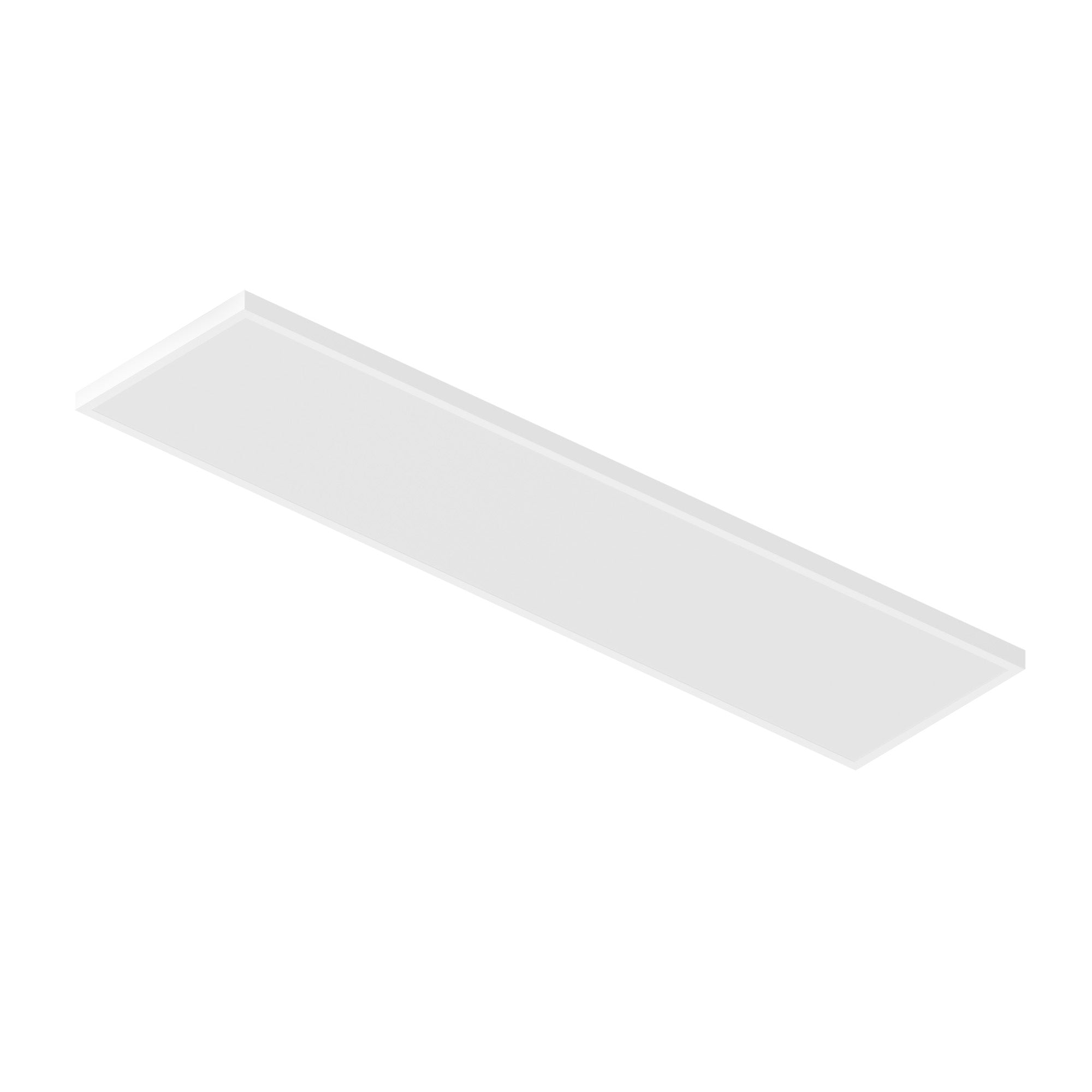

Nora Lighting NSPDSW-14/SCW 1'x4' LED Surface Mount Panel with Selectable Lumens & CCT - White Finish

Nora Lighting NSPDSW-14/SCW 1'x4' LED Surface Mount Panel with Selectable Lumens & CCT - White Finish

$151.11

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

In Stock

Ships in 1–3 Business Days

Free Nationwide Shipping

View minimums β†’

30-Day Returns

Read Terms β†’

Questions?

Contact via Chat, Email or Phone

Product Details

Description

Details of the Nora Lighting 1'x4' LED Surface Mount Panel with Selectable Lumens & CCT - White Finish

The Nora Lighting NSPDSW-14 is a low-profile 1' x 4' LED surface mount panel designed to provide efficient, uniform general illumination for commercial and industrial spaces. Featuring edge-lit LED technology and a diffused polycarbonate lens, this panel offers field-selectable lumen output from 2400 to 4550 lumens and selectable color temperatures from 2700K to 5000K. Its smooth matte white finish and only 1-inch-thick profile provide a clean, modern appearance, while the included hinged ceiling bracket allows easy snap-in installation and removal. The panel operates from 120-277VAC and supports Triac/ELV dimming.

Key Features

  • 1' x 4' LED surface mount panel
  • Field-selectable lumen output from 2400 to 4550 lumens
  • Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
  • Selectable wattage from 20W to 40W
  • Edge-lit LED technology for uniform illumination
  • Diffused polycarbonate lens
  • Slim 1-inch-thick design
  • Smooth matte white finish
  • Easy snap-in installation and removal
  • Hinged ceiling bracket included
  • Designed for installation over a junction box
  • 120-277VAC input voltage
  • Triac/ELV dimming compatible
  • Optional remote emergency LED driver available
  • Suitable for commercial and industrial applications

Specifications

  • Brand: Nora Lighting
  • Model: NSPDSW-14
  • Product Type: LED Surface Mount Panel
  • Panel Size: 1' x 4'
  • Light Source: LED
  • Lumens: 2400-4550 lm, selectable
  • Wattage: 20W-40W, selectable
  • Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K, selectable
  • Input Voltage: 120-277VAC
  • Dimming: Triac / ELV
  • Lens: Diffused Polycarbonate
  • Finish: White
  • Mounting: Surface Mounted
  • Mounting Bracket: Ceiling bracket included
  • Installation: Over junction box
  • Construction Type: New Construction / Remodel / Commercial & Architectural
  • Emergency Option: NEPK-23LEDUNV or NEPK-23LEDUNV-JB, sold separately

Dimensions

  • Nominal Size: 1' x 4'
  • Thickness: 1"
  • Mounting: Surface mount
  • Installation: Ceiling-mounted over a junction box

Applications

  • Offices
  • Retail stores
  • Schools
  • Hospitals
  • Healthcare facilities
  • Kitchens
  • Corridors
  • Bathrooms
  • Hospitality spaces
  • Commercial buildings
  • Industrial facilities
  • General-purpose surface-mounted lighting
  • New construction and remodeling projects

Download PDF File

Specification

Installation Guide

Sales Sheet
