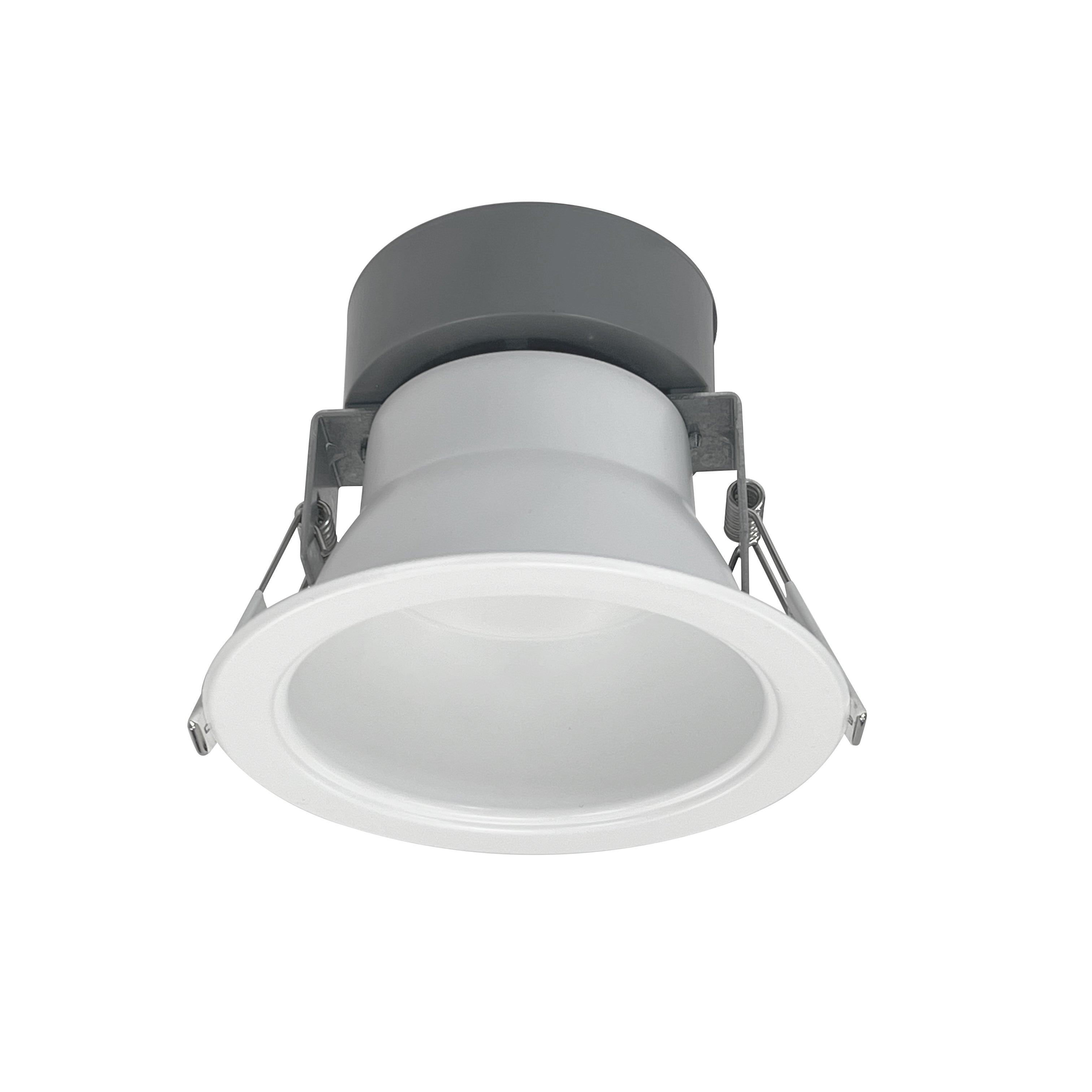

Nora Lighting NQZ2-41TWTW-MPW 4" Quartz Round Can-less LED Downlight with Selectable Lumens & CCT, 120-277V input, Up to 1250lm, Matte Powder White Finish

Details of the Nora Lighting NQZ2-41TWTW-MPW 4" Quartz Round Can-less LED Downlight with Selectable Lumens & CCT, 120-277V input, Up to 1250lm, Matte Powder White Finish

4" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (800lm / 7W; 950lm / 9W; 1250lm / 12W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: Matte Powder White Accessories: New construction frame-in (NQZ-4R-F) or Reflector inserts (NQZ-41REFL) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

FEATURES

• Can-less installation (No frame-in or housing required)
• Easy installation for retrofit, remodel, or new construction applications
• Selectable Lumen switch allows for selectable lumen outputs from 800lm to 1250lm
• Selectable CCT switch allows for selectable kelvin temperatures from 3000K / 3500K / 4000K
• Field changeable reflector allows for easy customization
• Optional emergency backup
• 5-year limited warranty
• ENERGY STAR certified
• Certified to the high efficacy requirements of California Title 24 JA8-2022
• cETLus Listed for Wet Locations

Specification

• Brand: Nora Lighting
• SKU: NQZ2-41TWTW-MPW
• UPC: 732180379606
• Product Line: LE80
• Product Family: Quartz
• Product Type: Recessed
• Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
• Wattage: Selectable Wattage (7W / 9W / 12W)
• Lumens: Selectable Lumens (800lm / 950lm / 1250lm)
• CRI: 90
• Product Dimensions (W x H x L): 5.75 x 4.5 x 5.75
• Finish Color: Matte Powder White
• Product Weight (lb): 1.3

Accessories:

• NQZ-4R-F: New Construction Frame-In with Collar

• NQZ-41REFL: Reflector Insert (Specular Clear, Diffused or Haze)

• NEPK-20LEDUNV: 20W Remote Emergency Driver

Photometric Layout
