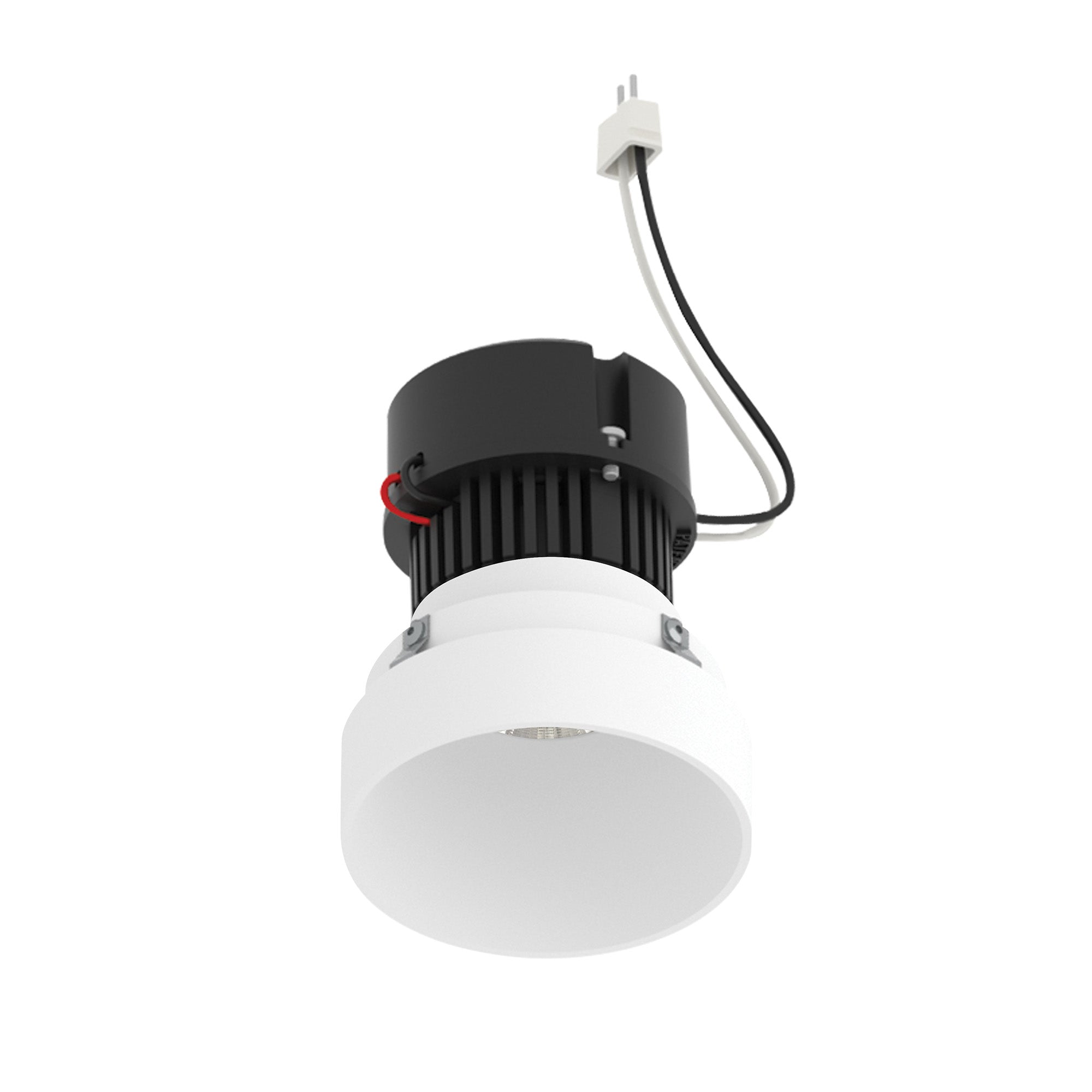

Details of the Nora Lighting NPRLV-4RTLNDC40XWW 4" Pearl 12V LED Round Trimless Retrofit Downlight, 1150lm / 10W, 4000K - Warm White Finish

The Nora Lighting NPRLV-4RTLNDC40XWW 4" Pearl LED Round Trimless Retrofit Downlight delivers bright, efficient illumination in a clean, modern trimless design. Featuring a 12VAC input, 10W LED source, 1150 lumens, 4000K color temperature, and 90+ CRI, this retrofit downlight provides high-quality lighting with excellent color rendering.

Designed for retrofit applications in compatible recessed housings, the Pearl series uses a deep-regressed cone reflector to optimize visual cutoff and reduce glare. The fixture includes three field-changeable optics—Spot, Narrow Flood, and Flood—allowing the light distribution to be customized for different spaces. Triac and ELV dimming provide flexible lighting control, while the trimless construction creates a seamless appearance with no exposed trim flange beyond the ceiling plane.

The NPRLV-4RTLNDC40XWW is cULus classified for wet locations and features an integral dimmable driver, making it suitable for residential, hospitality, retail, and other architectural lighting applications where a refined recessed appearance is desired. A compatible trimless mud ring is required for installation.

Key Features

• 4" Pearl LED round trimless retrofit downlight
• 12VAC low-voltage input
• 1150 lumens output
• Efficient 10W LED light source
• 4000K neutral white color temperature
• 90+ CRI for high-quality color rendering
• Warm White finish
• Deep-regressed cone reflector for improved visual cutoff
• Three field-changeable optics included: Spot, Narrow Flood, and Flood
• 27° Spot, 37° Narrow Flood, and 58° Flood beam options
• Integral dimmable driver
• Compatible with Triac and ELV dimming
• cULus classified for wet locations
• Designed for retrofit installation in compatible 4" and 6" recessed housings
• Requires NPR-TLMR-4R or NPR-TLMR-6R trimless mud ring
• 50,000-hour rated LED life at L70
• 5-year limited warranty

Technical Specifications

• Brand: Nora Lighting
• Series: Pearl
• Model: NPRLV-4RTLNDC40XWW
• Product Type: Round Trimless Retrofit Downlight
• Aperture: 4"
• Input Voltage: 12VAC, 60Hz
• Socket: GU5.3
• Wattage: 10W
• Light Output: 1150 Lumens
• Color Temperature: 4000K
• CRI: 90+ CRI
• Beam Spread: 27° Spot / 37° Narrow Flood / 58° Flood
• Optics: Spot, Narrow Flood, and Flood; field changeable
• Dimming: Triac or ELV
• Finish: Warm White
• LED Driver: Integral dimmable driver
• Operating Temperature: 0°C to 25°C
• Rated Life: 50,000 hours at L70
• Location Rating: cULus Classified for Wet Locations
• Certifications: RoHS Compliant, California Title 24 JA8-2025
• Warranty: 5-Year Limited Warranty

Dimensions

• Nominal Aperture: 4"
• Required Trimless Mud Ring: NPR-TLMR-4R or NPR-TLMR-6R
• Installation: Retrofit installation into compatible recessed housings
• Physical dimensions: Refer to the manufacturer's installation/specification drawing for exact fixture dimensions.

Applications

• Residential recessed lighting
• Living rooms and bedrooms
• Kitchens and dining areas
• Retail stores
• Hospitality spaces
• Hotels and restaurants
• Corridors and common areas
• Architectural and decorative lighting
• Wet-location retrofit applications
• Remodel and renovation projects
