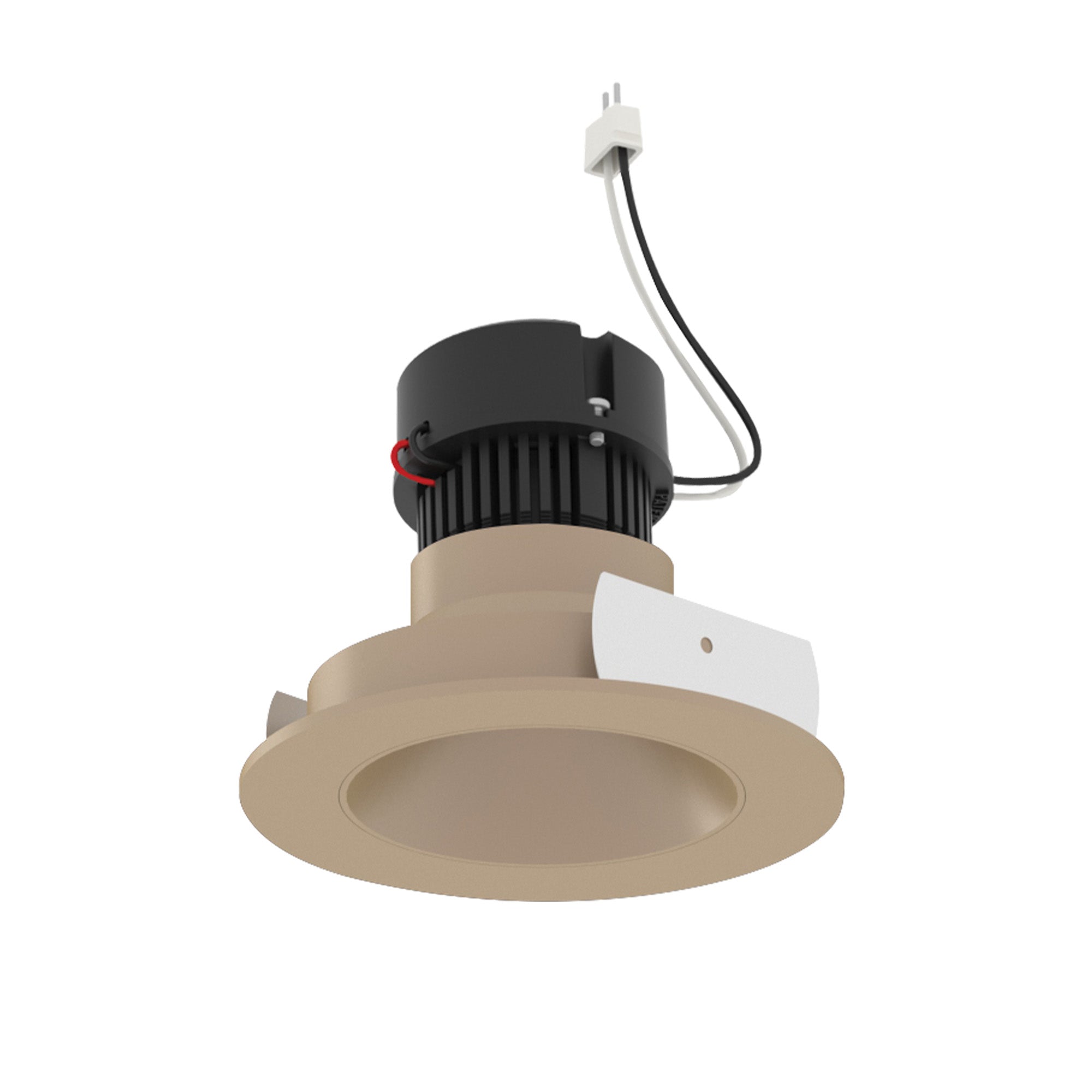

Details of the Nora Lighting 4" Pearl 12V LED Round Retrofit Reflector, 700lm / 10W, Comfort Dim - Wheat Diffused Reflector / Wheat Diffused Flange

The Nora Lighting NPRLV-4RNDCCDXWD 4" Pearl LED Round Retrofit Reflector delivers comfortable, high-quality illumination with Nora's Comfort Dim technology. Designed for 12VAC low-voltage applications, this 10W retrofit downlight provides up to 700 lumens and gradually warms the light output from approximately 3000K to 2000K as it is dimmed, creating a warm and inviting atmosphere.

The Pearl retrofit series features a deep-regressed cone reflector that helps provide an optimized visual cutoff while maintaining efficient illumination. Three field-changeable optics—Spot, Narrow Flood, and Flood—offer flexibility for different lighting requirements. The Wheat Diffused Reflector and Wheat Diffused Flange provide a soft, understated appearance suitable for a variety of interior environments.

The NPRLV-4RNDCCDXWD uses a GU5.3 socket and integral dimmable driver with Triac or ELV dimming. It is cULus classified for wet locations and is designed for installation in compatible recessed housings.

Key Features

• 4" Pearl LED round retrofit reflector
• 12VAC low-voltage operation
• 700 lumens with Comfort Dim
• Efficient 10W LED source
• Comfort Dim warm-dimming technology
• Color temperature gradually adjusts from approximately 3000K to 2000K when dimmed
• Wheat Diffused Reflector
• Wheat Diffused Flange
• Deep-regressed cone reflector for optimized visual cutoff
• Three field-changeable optics included: Spot, Narrow Flood, and Flood
• Integral dimmable driver
• Triac and ELV dimming compatible
• GU5.3 socket
• cULus classified for wet locations
• Designed for compatible IC and Non-IC recessed housings
• Die-cast aluminum construction for heat dissipation
• Friction blades provide secure housing installation
• 50,000-hour rated LED life at L70
• 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Series: Pearl
• Model: NPRLV-4RNDCCDXWD
• Product Type: Round LED Retrofit Reflector
• Aperture: 4"
• Input Voltage: 12VAC, 60Hz
• Socket: GU5.3
• Wattage: 10W
• Light Output: 700 Lumens with Comfort Dim
• Light Source: LED, Comfort Dim
• Color Temperature: Comfort Dim, approximately 3000K to 2000K
• CRI: 90+ for standard Pearl CCT versions
• Optics: Spot, Narrow Flood, and Flood; field changeable
• Dimming: Triac or ELV
• Reflector Finish: Wheat Diffused
• Flange Finish: Wheat Diffused
• Location Rating: cULus Classified for Wet Locations
• Construction: Die-cast aluminum
• Rated Life: 50,000 hours at L70
• Warranty: 5-Year Limited Warranty
