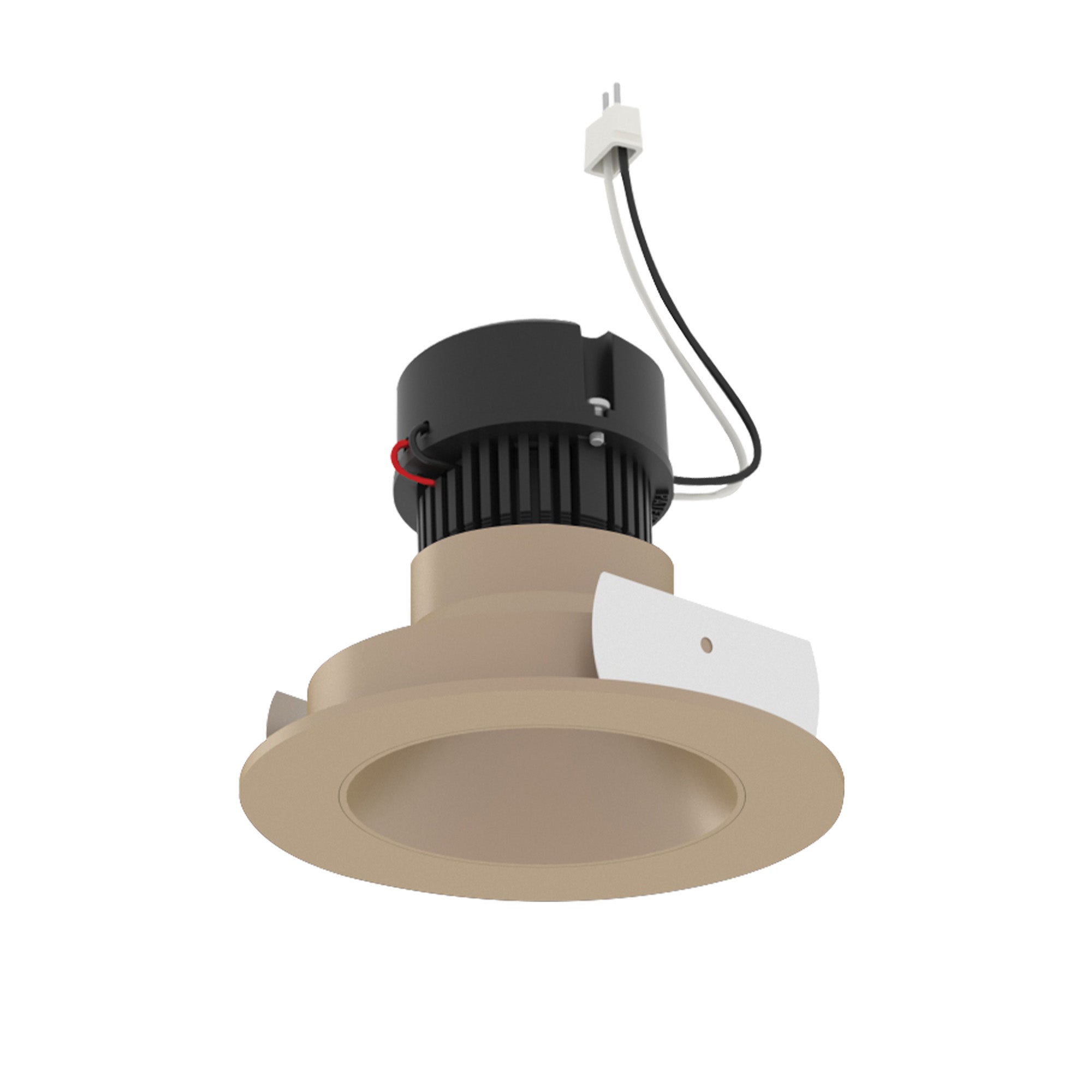

Details of the Nora Lighting 4" Pearl 12V LED Round Retrofit Reflector, 1150lm / 10W, 4000K - Wheat Diffused Reflector / Wheat Diffused Flange

The Nora Lighting NPRLV-4RNDC40XWD 4" Pearl LED Round Retrofit Reflector provides bright, efficient illumination with a refined Wheat Diffused finish. Designed for 12VAC low-voltage applications, this 10W LED retrofit produces approximately 1150 lumens at 4000K and delivers high-quality illumination with 90+ CRI.

The Pearl retrofit series features a deep-regressed cone reflector that provides optimized visual cutoff while maintaining strong light output. Three field-changeable optics—Spot, Narrow Flood, and Flood—allow the light distribution to be customized for different spaces and lighting requirements.

The NPRLV-4RNDC40XWD uses a GU5.3 socket and integral dimmable driver with Triac or ELV dimming. Its Wheat Diffused Reflector and Wheat Diffused Flange create a soft, understated appearance, while cULus classification for wet locations makes it suitable for a wide range of residential and commercial applications.

Key Features

• 4" Pearl LED round retrofit reflector
• 12VAC low-voltage operation
• 1150-lumen LED output
• Efficient 10W LED source
• 4000K neutral white color temperature
• 90+ CRI for excellent color rendering
• Wheat Diffused Reflector
• Wheat Diffused Flange
• Deep-regressed cone reflector for optimized visual cutoff
• Three field-changeable optics included: Spot, Narrow Flood, and Flood
• 28° Spot, 40° Narrow Flood, and 62° Flood beam options
• Integral dimmable driver
• Compatible with Triac and ELV dimming
• GU5.3 socket
• cULus classified for wet locations
• Compatible with existing 4" IC and Non-IC recessed housings
• Die-cast aluminum construction for effective heat dissipation
• Secure friction-blade mounting system
• 50,000-hour rated LED life at L70
• 5-year limited warranty

Technical Specifications

• Brand: Nora Lighting
• Series: Pearl
• Model: NPRLV-4RNDC40XWD
• Product Type: Round LED Retrofit Reflector
• Aperture: 4"
• Input Voltage: 12VAC, 60Hz
• Socket: GU5.3
• Wattage: 10W
• Light Output: 1150 Lumens
• Color Temperature: 4000K
• CRI: 90+ CRI
• Optics: Spot, Narrow Flood, and Flood; field changeable
• Beam Spread: 28° Spot / 40° Narrow Flood / 62° Flood
• Dimming: Triac or ELV
• Reflector Finish: Wheat Diffused
• Flange Finish: Wheat Diffused
• Construction: Die-cast aluminum
• Operating Temperature: 0°C to 25°C
• Rated Life: 50,000 hours at L70
• Location Rating: cULus Classified for Wet Locations
• Certifications: RoHS Compliant; California Title 24 JA8
• Warranty: 5-Year Limited Warranty
