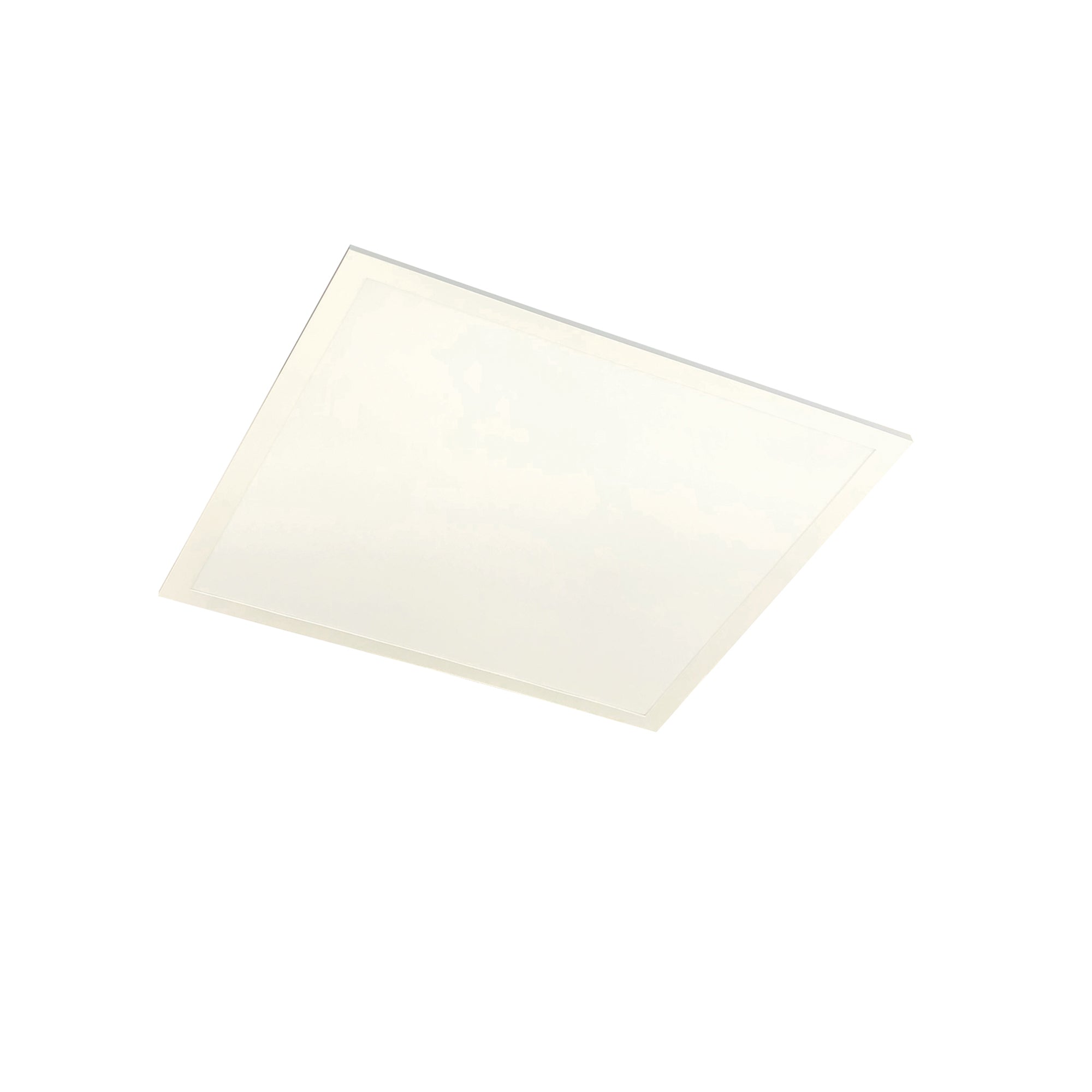

Nora Lighting NPDBLSW-E22/334WEM 2'x2' LED Backlit Panel with Selectable Lumens & CCT, White Finish, Emergency with Remote Test Switch

Details of the Nora Lighting NPDBLSW-E22/334WEM 2'x2' LED Backlit Panel with Selectable Lumens & CCT, White Finish, Emergency with Remote Test Switch

2'x2' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Input Voltage: 120-277VAC Lumens: Selectable Lumens (2655lm to 3759lm) Wattage: Selectable Wattage (20W to 30W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Listing: cULus Listed for Damp Locations

Specification

• Brand: Nora Lighting
• SKU: NPDBLSW-E22/334WEM
• UPC: 732180409105
• Product Line: LE24
• Product Family: Panel
• Product Type: Panel
• Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
• Wattage: Selectable Wattage (20W / 25W / 30W)
• Lumens: Selectable Lumens (2655lm / 3127lm / 3759lm)
• CRI: 80
• Product Dimensions (W x H x L): 23.75 x 3.625 x 23.75
• Finish Color: White
• Product Weight (lb): 10.4
