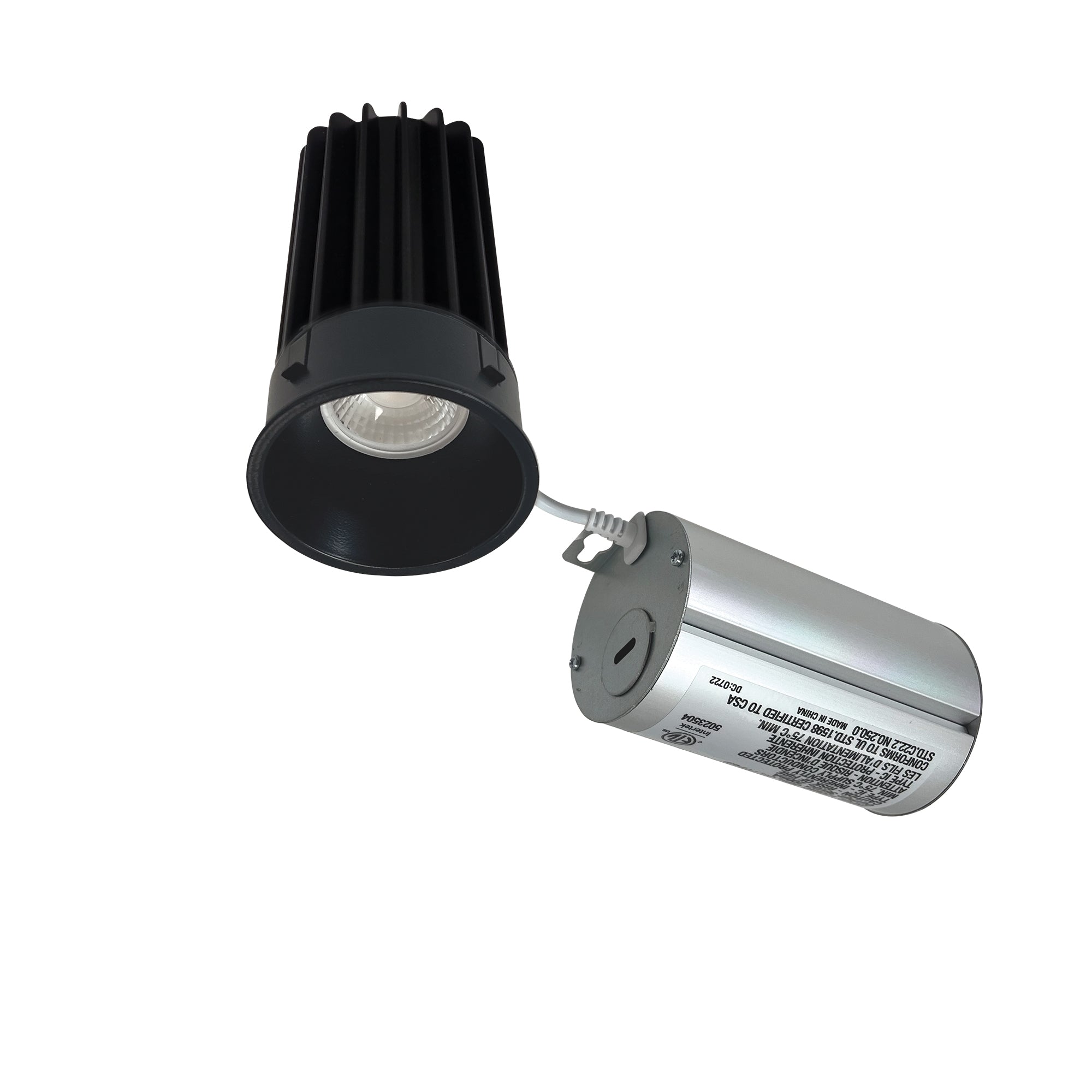

Nora Lighting NM2-2RTLDC8527BB 2" M2 Round Trimless LED Downlight, 850lm, 2700K, Matte Black finish

Details of the Nora Lighting NM2-2RTLDC8527BB 2" M2 Round Trimless LED Downlight, 850lm, 2700K, Matte Black finish

2" M2 trimless downlights features quality and convenience with easy installation for insulated or non-insulated applications. Each installation requires a mud plate that mounts to drywall and hold LED luminaire to ceiling without any housing. Input Voltage: 120V Lumens / Wattage: 900lm / 10W CCT / CRI: 2700K / 90 CRI Finish: Matte Black Dimming: Triac or ELV Optics: 43° Narrow Flood Trimless Mud Plate Required: NM2-TLMR-R Accessories: Extension cables and new construction frame available Listing: cETLus Listed for Damp Locations

Features

• No housing required “ IC Air-Tight rated
• Trimless mud plate required (NM2-TLMR-R)
• Easy installation for remodel or new construction applications
• Deep regressed downlight
• Quick disconnect cables allow for extended lengths
• Triac or ELV dimming
• 5-year limited warranty
• Certified to the high efficacy requirements of California Title 24 JA8-2022

Specification

• Brand: Nora Lighting
• SKU: NM2-2RTLDC8527BB
• UPC: 732180999910
• Product Line: LE76
• Product Family: M2
• Product Type: Recessed
• Color Temperature: 2700K
• Wattage: 10W
• Lumens: 850lm
• CRI: 90
• Product Dimensions (W x H x L): 2.375 x 2.5 x 2.375
• Finish Color: Matte Black
• 0.9

Accessories:

• NF-R246: Universal New Construction Frame-In

• NMA-EW-4: 4² Quick Connect Extension Cable

• NMA-EW-10: 10² Quick Connect Extension Cable

Photometric Layout
