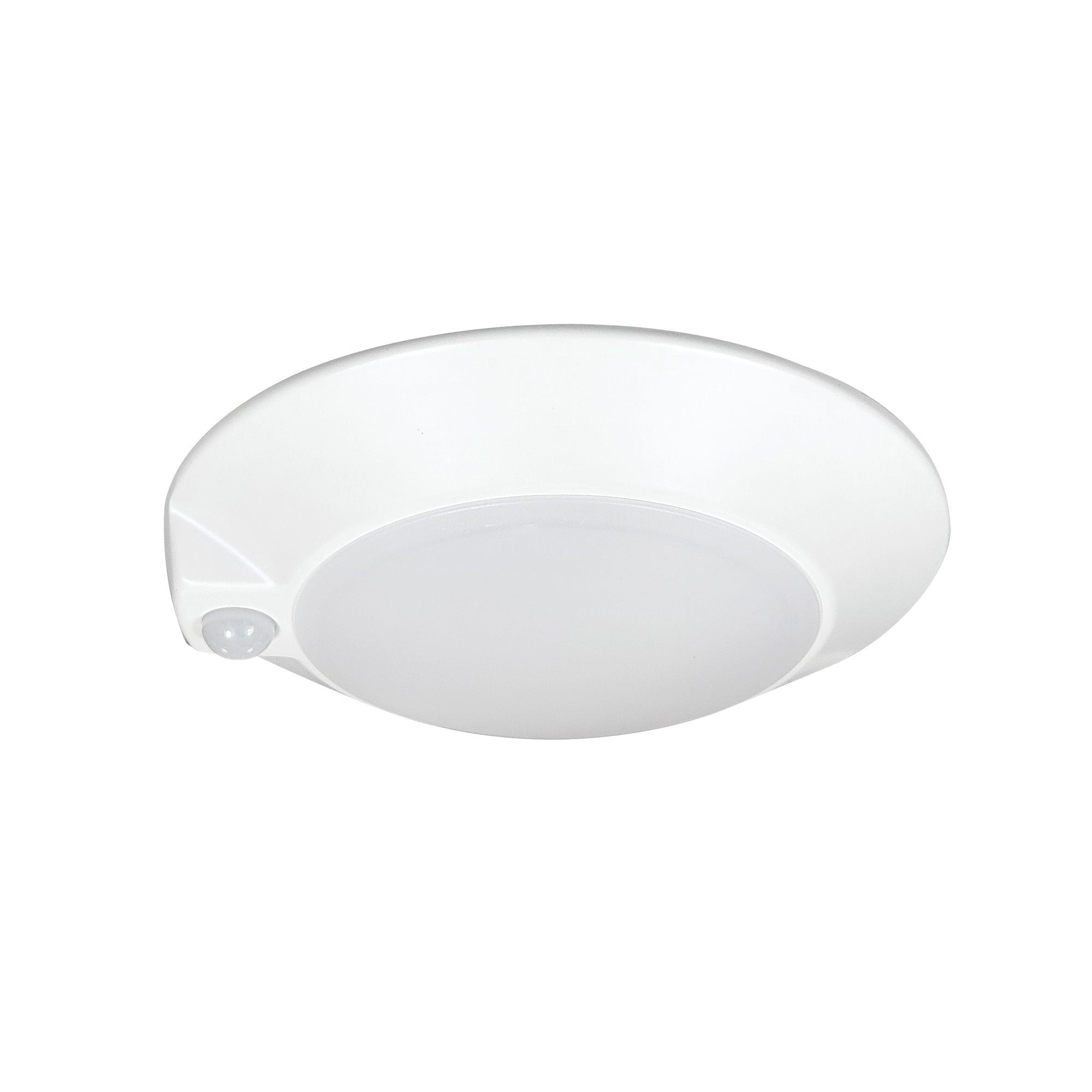

Nora Lighting NLOPAC-R7MSTWW 7" AC Opal LED Surface Mount with PIR Motion Sensor, 950lm / 14W, Selectable CCT, White Finish

Details of the Nora Lighting NLOPAC-R7MSTWW 7" AC Opal LED Surface Mount with PIR Motion Sensor, 950lm / 14W, Selectable CCT, White Finish

The AC Opal Motion Sensor LED Series is designed to surface mount over a standard junction box. The low-profile luminaire produces even illumination and the integral PIR sensor activates when motion is detected. After one minute of no motion, the fixture automatically turns off.

Features:

• Surface mounts to most standard junction boxes
• Five color temperatures in each fixture
• PIR (passive infrared) motion sensor for easy on/off operation
• PIR sensor can detect motion up to 16² diameter pattern at 8² mounting height
• Surface mounted or retrofit into an existing recessed housing with torsion spring kit (ordered separately)
• Suitable for use in closets when installed in accordance to NEC® Section 410.16 (A)(1) and 410.16 (C)(1)

Specification

• Brand: Nora Lighting
• SKU: NLOPAC-R7MSTWW
• UPC: 732180832002
• Product Line: LE44
• Product Family: Opal
• Product Type: Surface
• Color Temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
• Wattage: 14W
• Lumens: 950lm
• CRI: 90
• Product Dimensions (W x H x L): 7.5 x 1.25 x 7.5
• Finish Color: White
• 0.6

Photometric Layout
