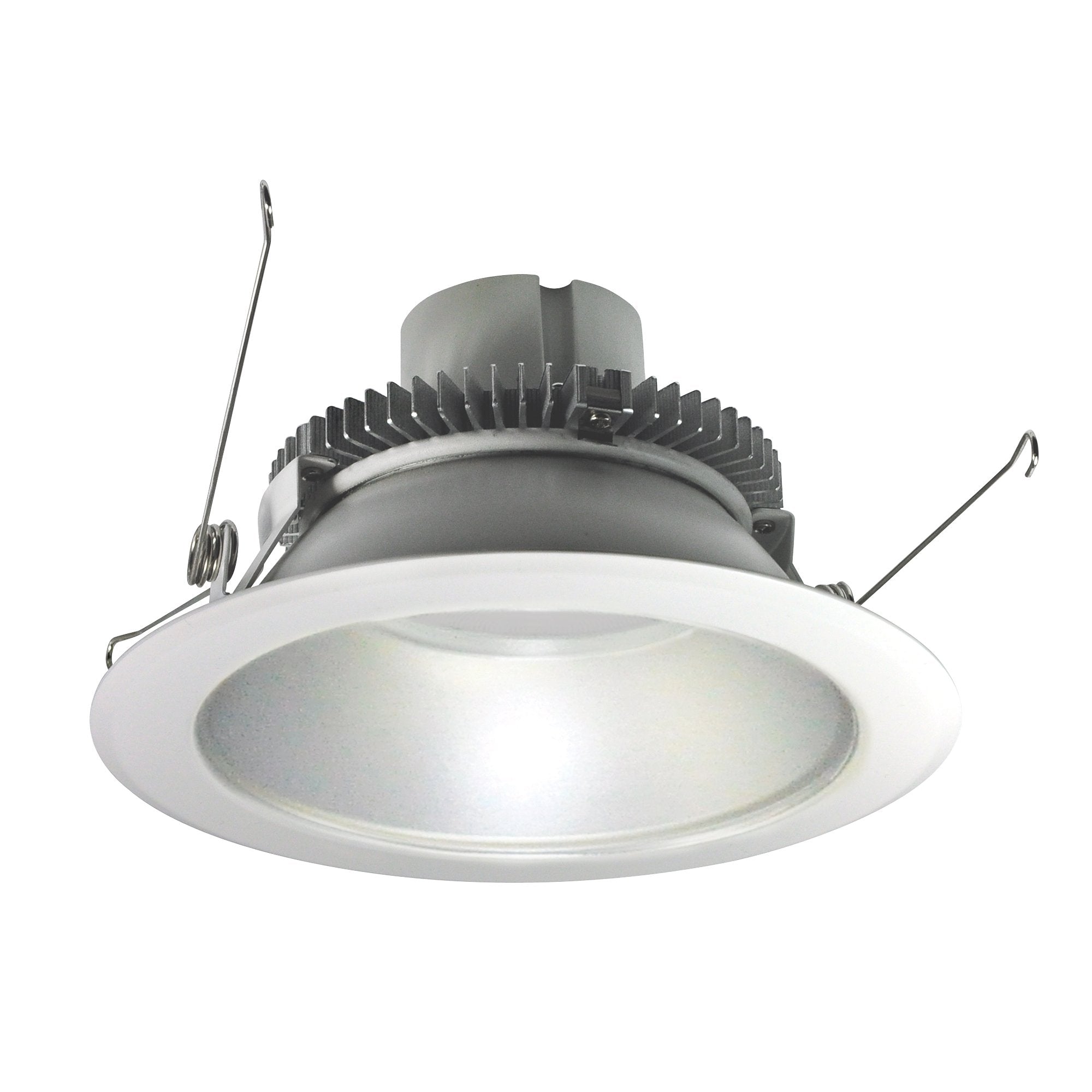

Details of the Nora Lighting NLCBC2-651TWDMPW/10 6" Cobalt Click Round Retrofit Reflector, 1000lm, 13.5W, Diffused Clear - Bright White Flange

The 6″ Cobalt Click LED retrofit series is cULus classified for use in existing IC or non-IC housings manufactured by Nora and others. The patented “Click” system allows the aluminum spun trim to be easily changed in the field, and spring mounting clips properly secure it to the LED module.

Key Features

• 6-inch Cobalt Click round LED retrofit reflector
• Delivers up to 1,000 lumens of bright, uniform illumination
• Energy-efficient 13.5W LED performance
• Selectable 5CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K
• Diffused clear reflector with bright white flange finish
• Patented Cobalt Click system allows field-changeable trims
• High 90+ CRI for accurate color rendering
• Compatible with Triac and ELV dimming controls
• Includes medium-base retrofit adapter for easy installation
• Suitable for most 6" IC and Non-IC recessed housings
• Wet-location rated for indoor and covered outdoor applications
• California Title 24 JA8-2022 compliant
• Long-life LED technology reduces maintenance costs
• Ideal for residential, retail, hospitality, office, and commercial projects
• Backed by a 5-year limited warranty

Specifications

• Brand: Nora Lighting
• Model: NLCBC2-651TWDMPW/10
• Series: Cobalt Click Retrofit
• Product Type: Round Retrofit Reflector
• Aperture Size: 6 Inches
• Light Output: 1,000 Lumens
• Wattage: 13.5W
• Color Temperature: Selectable 5CCT (2700K / 3000K / 3500K / 4000K / 5000K)
• CRI: 90+
• Reflector Finish: Diffused Clear
• Flange Finish: Bright White
• Input Voltage: 120V
• Dimming: Triac / ELV
• Mounting: Retrofit Installation
• Housing Compatibility: Most 6" IC and Non-IC Housings
• Location Rating: Wet Location
• Compliance: California Title 24 JA8-2022
• Warranty: 5-Year Limited Warranty

Download PDF File

• Photometric Layout
