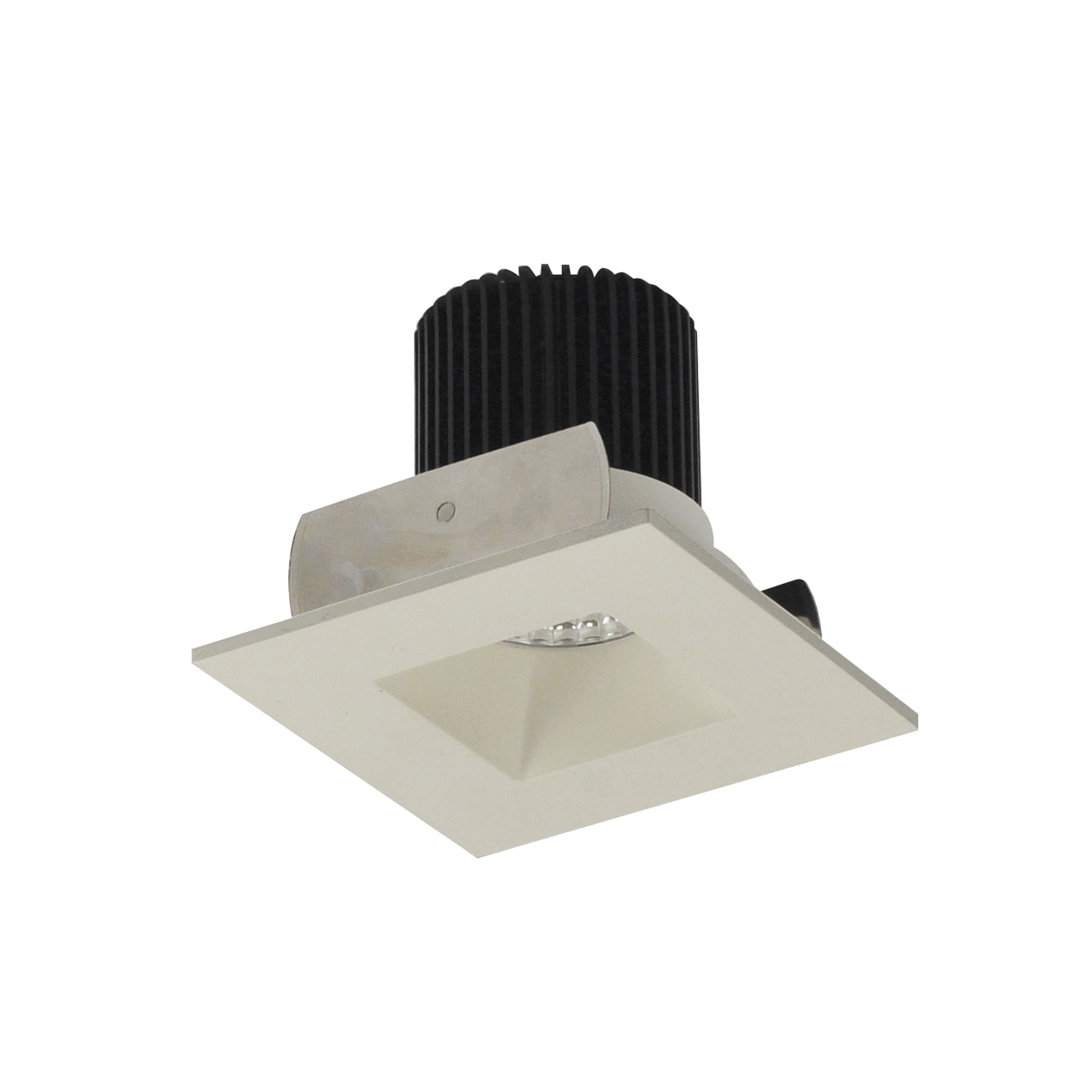

Details of the Nora Lighting 2" Iolite LED Square Reflector with Square Aperture, 800lm / 14W, 5000K - Warm White Reflector / Warm White Flange

The Nora Lighting NIOB-2SNDSQ50XWW is a 2" Iolite LED Square Reflector with a square aperture, designed for use with dedicated Iolite new construction or remodel housings. Its deep-regressed cone helps optimize visual cutoff while providing clean, controlled recessed illumination. This model delivers 800 lumens at 14W with a 5000K color temperature and 90 CRI.

The reflector features a Warm White reflector and Warm White flange and includes three field-changeable optics for flexible beam distribution. It is cULus listed for wet locations and supports accessories including NIO-AS, NIO-HC, and NIO-FMMR-2S.

Key Features

• 2" Iolite LED square reflector with square aperture
• 800 lumens at 14W
• 5000K cool white color temperature
• 90 CRI for high-quality color rendering
• Deep-regressed cone for optimized visual cutoff
• Three field-changeable optics included
• Warm White reflector and Warm White flange
• Requires a dedicated Iolite new construction or remodel housing
• Compatible with 800–1000 lumen Iolite housings
• cULus listed for wet locations
• Compatible with NIO-AS, NIO-HC, and NIO-FMMR-2S accessories
• Designed for recessed downlight applications

Specifications

• Brand: Nora Lighting
• Model: NIOB-2SNDSQ50XWW
• Product Type: LED Square Reflector
• Series: Iolite
• Aperture Size: 2"
• Aperture Shape: Square
• Lumens: 800 lm
• Wattage: 14W
• Color Temperature: 5000K
• CRI: 90
• Reflector Finish: Warm White
• Flange Finish: Warm White
• Optics: Three field-changeable optics
• Optic Options: Spot, Narrow Flood, and Flood
• Compatible Housings: NHIOICD-28, NHIOICDCP-28, NHRIOIC-28
• Construction Types: New Construction, Chicago Plenum, Remodel, Air-Tight IC
• Location Rating: Wet Location
• Listing: cULus
• Accessories: NIO-AS, NIO-HC, NIO-FMMR-2S
