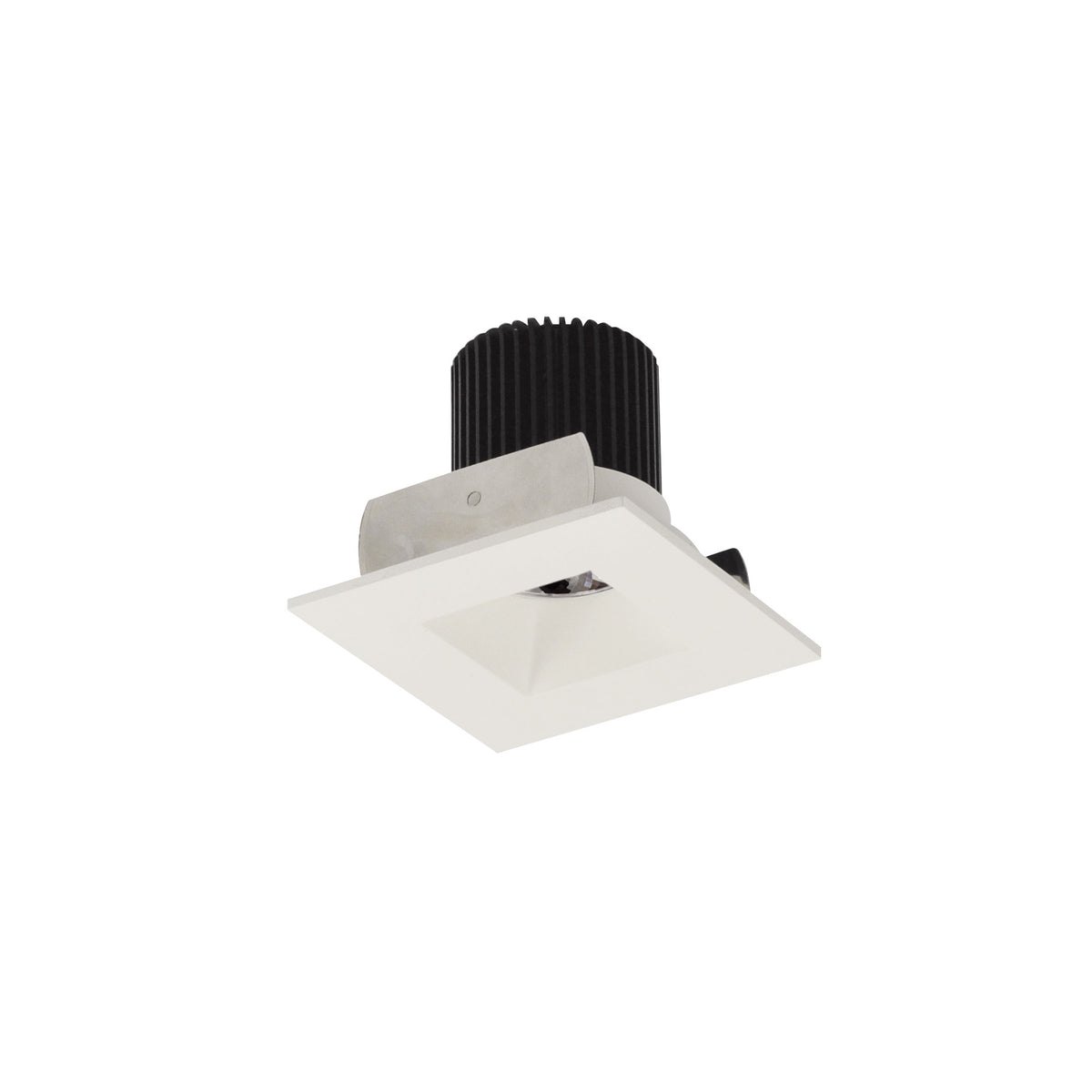

Details of the Nora Lighting 2" Iolite LED Square Reflector with Square Aperture, 10-Degree Optic, 800lm / 12W, 4000K - Warm White Reflector / Warm White Flange

The Nora Lighting NIOB-2SNDSQ40QWW is a 2" Iolite LED Square Reflector with a square aperture and fixed 10° spot optic, designed for dedicated Iolite new construction or remodel housings. It delivers 800 lumens at 12W with a 4000K color temperature and 90 CRI, while its deep-regressed cone helps optimize visual cutoff for clean, controlled recessed illumination.

The reflector features a Warm White reflector and Warm White flange and provides a focused 10° spot beam for accent and task lighting. It is cULus listed for wet locations and is compatible with NHIOICD-28, NHIOICDCP-28, and NHRIOIC-28 housings, along with several Iolite accessories.

Key Features

• 2" Iolite LED square reflector with square aperture
• 800 lumens at 12W
• 4000K neutral white color temperature
• 90 CRI for high-quality color rendering
• Fixed 10° narrow-spot optic
• Approximately 12° photometric beam spread
• Deep-regressed cone for optimized visual cutoff
• Warm White reflector and Warm White flange
• Designed for dedicated Iolite new construction or remodel housings
• Compatible with NHIOICD-28, NHIOICDCP-28, and NHRIOIC-28 housings
• cULus listed for wet locations
• Compatible with NIO-AS, NIO-HC, and NIO-FMMR-2S accessories

Specifications

• Brand: Nora Lighting
• Model: NIOB-2SNDSQ40QWW
• Product Type: LED Square Reflector
• Series: Iolite
• Aperture Size: 2"
• Aperture Shape: Square
• Lumens: 800 lm
• Wattage: 12W
• Color Temperature: 4000K
• CRI: 90
• Optic: 10° Narrow Spot
• Beam Spread: Approximately 12° spot
• Reflector Finish: Warm White
• Flange Finish: Warm White
• Compatible Housings: NHIOICD-28, NHIOICDCP-28, NHRIOIC-28
• Construction: New Construction / Remodel
• Application: Downlight
• Location Rating: Wet Location
• Listing: cULus
• Accessories: NIO-AS, NIO-HC, NIO-FMMR-2S

Download PDF File

Specification

Installation Guide

Sales Sheet

Video Link
