Description

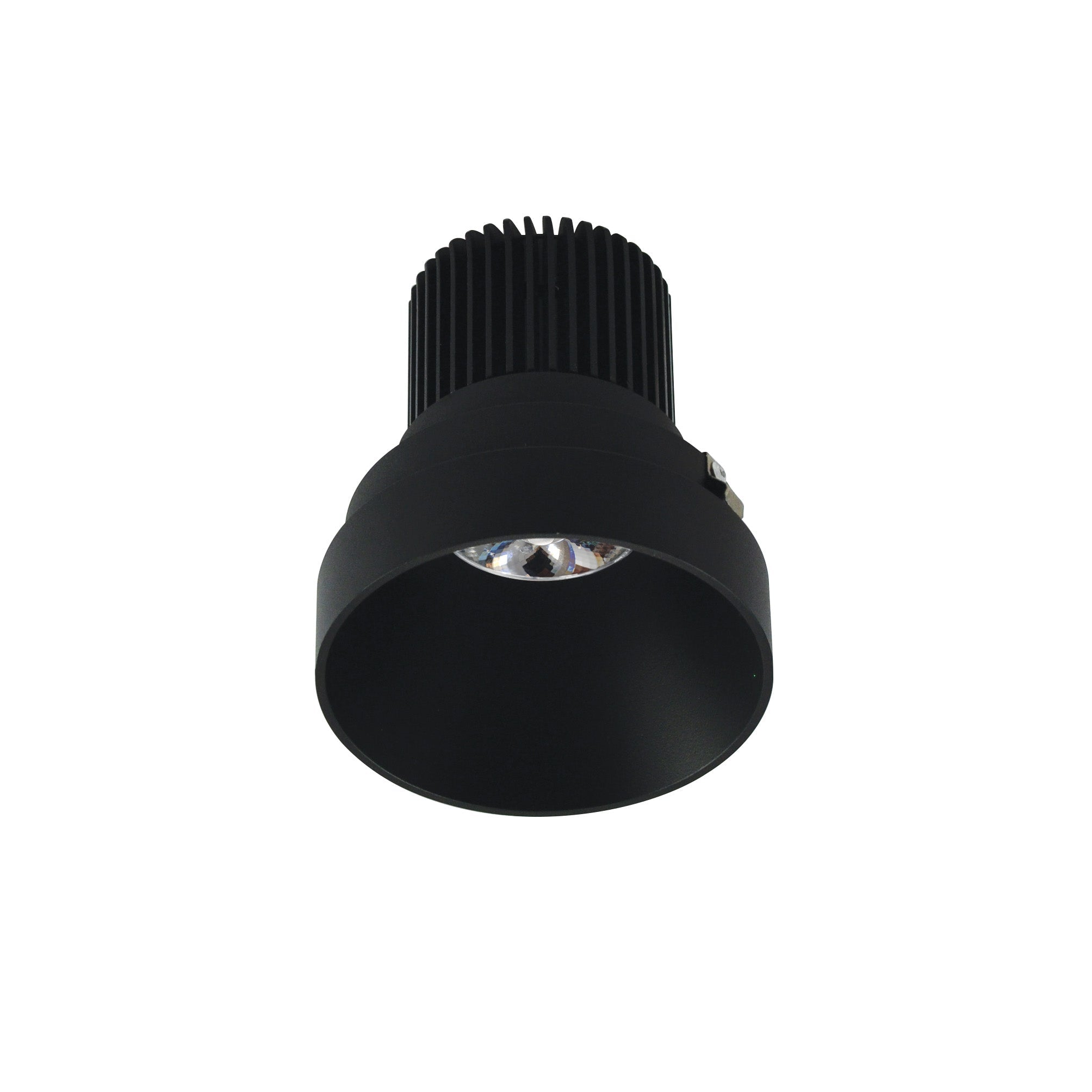

4″ Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
Color Temperatures: 3000K
Lumens / Wattage:
- 800lm / 14W (NHIOICD-48, NHIOICDCP-48)
- 1000lm / 14W (NHIOICD-48, NHIOICDCP-48)
- 1500lm / 20W (NHIOICD-415, NHIOICDCP-415)
- 2000lm / 24W (NHIOICD-420, NHIOICDCP-420)
- 2500lm / 28W (NHIOICD-425, NHIOICDCP-425)
Optics: Field Changeable (Spot, Narrow Flood, Flood) or 10° Narrow Spot
Required: Trimless Mud Plate (NIO-TLMR-4RA) or Flange Accessory (NIO-4RTFA)
Suction cup (NIO-TLSUCTION) available for removal from the finished ceiling
