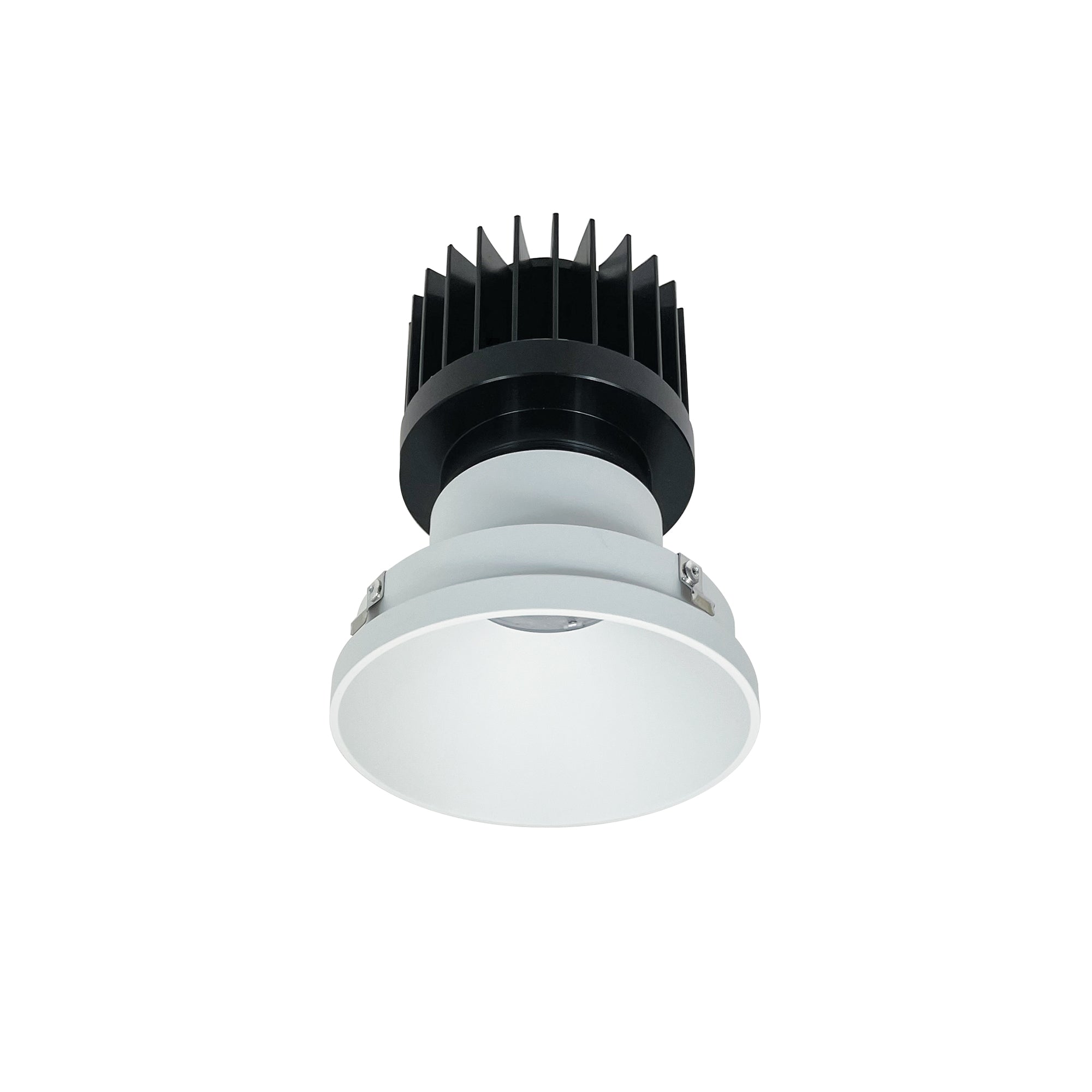

Nora Lighting NIO-4PRTLNDCCDXMPW/HL 4" Iolite PLUS Round Trimless Downlight, 1500lm/2000lm/2500lm (varies by housing), Comfort Dim, Matte Powder White Finish

Details of the Nora Lighting NIO-4PRTLNDCCDXMPW/HL 4" Iolite PLUS Round Trimless Downlight, 1500lm/2000lm/2500lm (varies by housing), Comfort Dim, Matte Powder White Finish

4" PLUS Trimless Iolite downlights have no exposed flange and do not extend beyond the ceiling plane. Iolite PLUS Trimless requires a PLUS Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off. Required Trimless Mud Plate: NIO-TLMR-4PR Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICD-425, NHIOICDCP-415, NHIOICDCP-420, NHIOICDCP-425 Lumens / Wattage: Up to 2500lm / 28W (varies by housing) Color Temperature: Comfort Dim (3000K-2000K) Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Matte Powder White Listing: cULus listed for wet locations Accessories: NIO-AS, NIO-HC, NIO-4PRTFA

Specification

• Brand: Nora Lighting
• SKU: NIO-4PRTLNDCCDXMPW/HL
• UPC: 732180568000
• Product Line: LE46
• Product Family: 4" Iolite Dedicated Trimless
• Product Type: Recessed
• Color Temperature: Comfort Dim (3000K-2000K)
• Wattage: 20W / 24W / 28W
• Lumens: 1500lm / 2000lm / 2500lm (varies by housing)
• CRI: 90
• Product Dimensions (W x H x L): 3.625 x 4.5 x 3.625
• Finish Color: Matte Powder White
• 0.85

Photometric Layout
