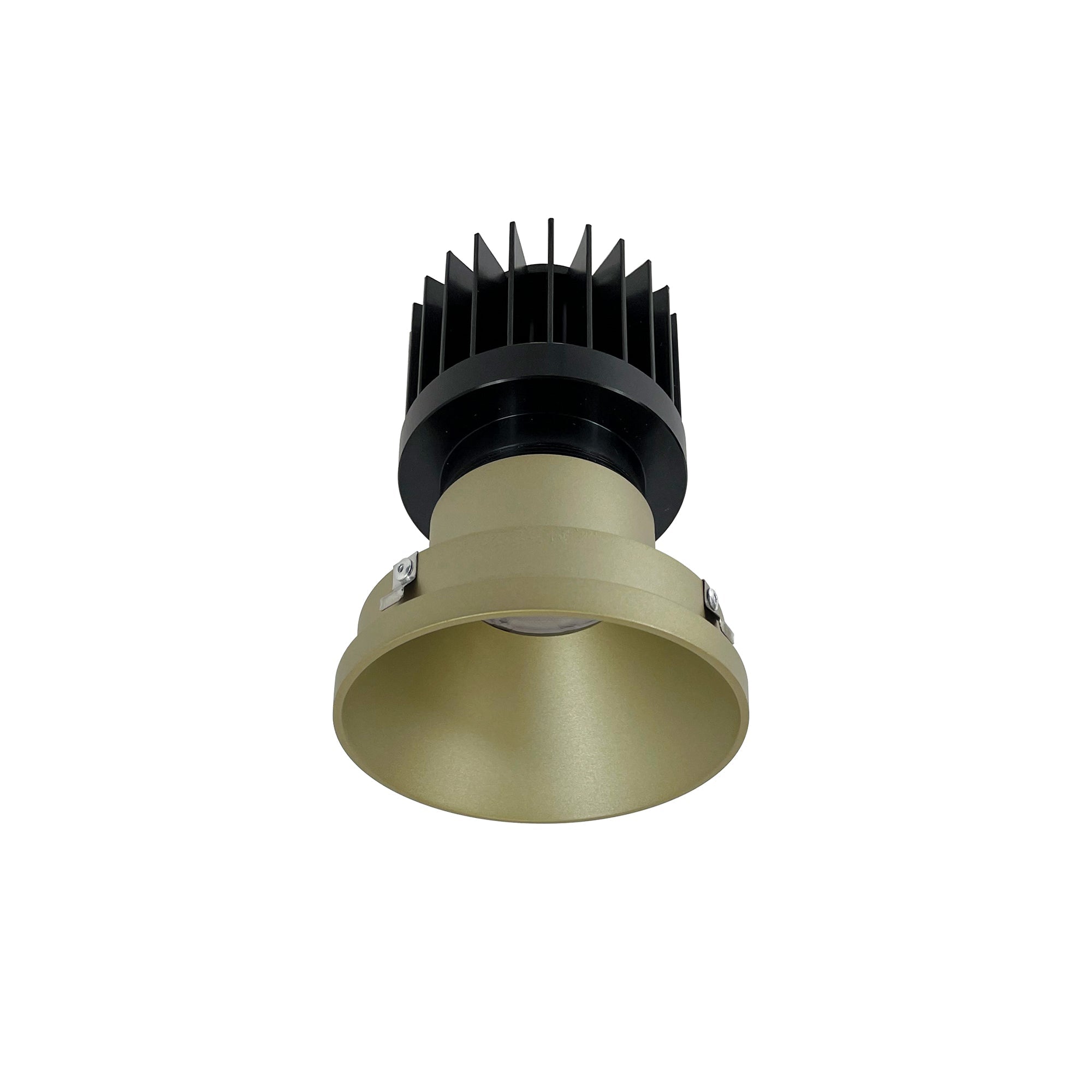

Nora Lighting NIO-4PRTLNDCCDXCH/HL 4" Iolite PLUS Round Trimless Downlight, 1500lm/2000lm/2500lm (varies by housing), Comfort Dim, Champagne Haze Finish

Details of the Nora Lighting NIO-4PRTLNDCCDXCH/HL 4" Iolite PLUS Round Trimless Downlight, 1500lm/2000lm/2500lm (varies by housing), Comfort Dim, Champagne Haze Finish

4" PLUS Trimless Iolite downlights have no exposed flange and do not extend beyond the ceiling plane. Iolite PLUS Trimless requires a PLUS Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off. Required Trimless Mud Plate: NIO-TLMR-4PR Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICD-425, NHIOICDCP-415, NHIOICDCP-420, NHIOICDCP-425 Lumens / Wattage: Up to 2500lm / 28W (varies by housing) Color Temperature: Comfort Dim (3000K-2000K) Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Champagne Haze Listing: cULus listed for wet locations Accessories: NIO-AS, NIO-HC, NIO-4PRTFA

Specification

• Brand: Nora Lighting
• SKU: NIO-4PRTLNDCCDXCH/HL
• UPC: 732180567980
• Product Line: LE46
• Product Family: 4" Iolite Dedicated Trimless
• Product Type: Recessed
• Color Temperature: Comfort Dim (3000K-2000K)
• Wattage: 20W / 24W / 28W
• Lumens: 1500lm / 2000lm / 2500lm (varies by housing)
• CRI: 90
• Product Dimensions (W x H x L): 3.625 x 4.5 x 3.625
• Finish Color: Champagne Haze
• 0.85

Photometric Layout
