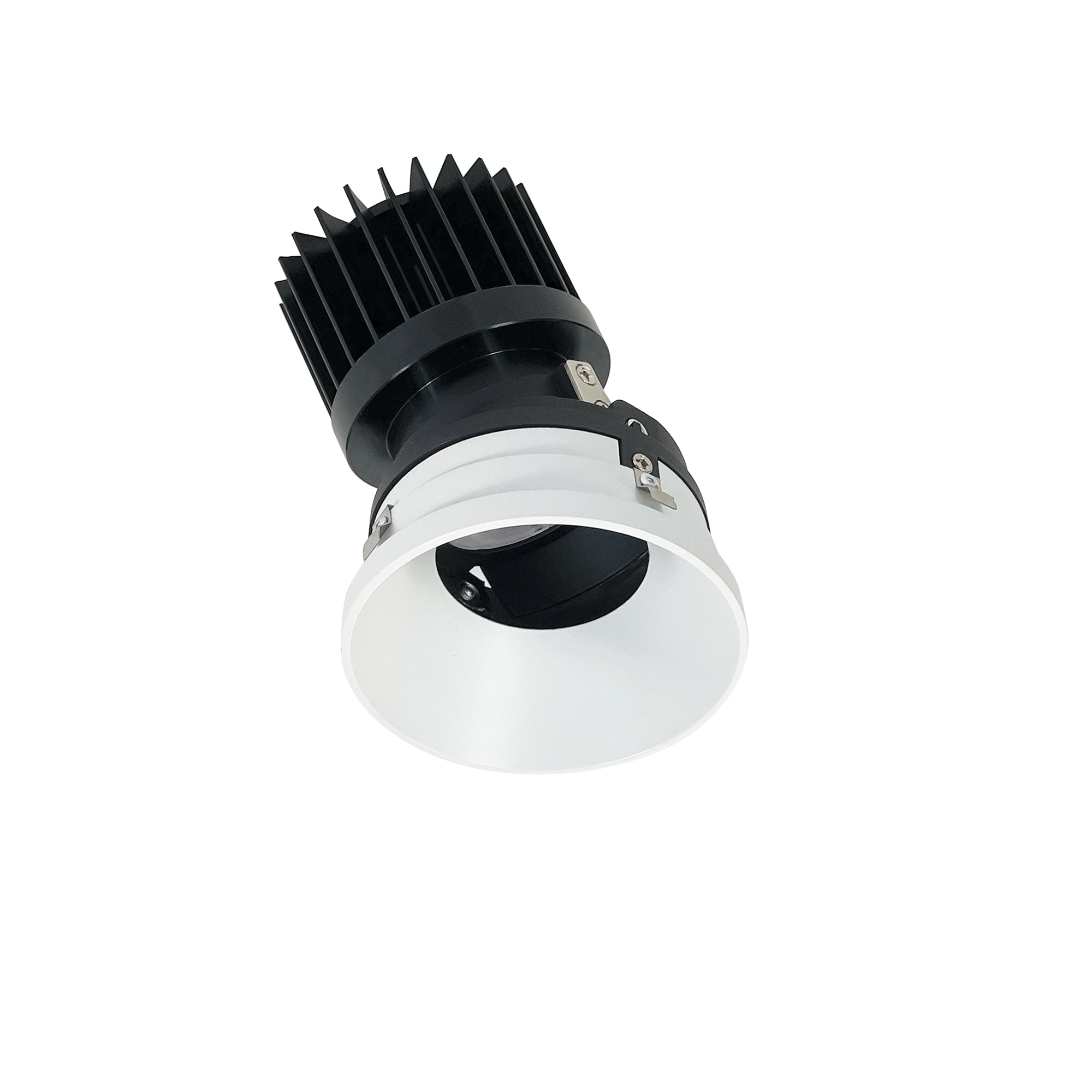

Nora Lighting NIO-4PRTLACDXMPW/HL 4" Iolite PLUS Round Trimless Adjustable, 1500lm/2000lm (varies by housing), Comfort Dim, Matte Powder White Finish

Details of the Nora Lighting NIO-4PRTLACDXMPW/HL 4" Iolite PLUS Round Trimless Adjustable, 1500lm/2000lm (varies by housing), Comfort Dim, Matte Powder White Finish

4" PLUS Trimless Iolite downlights have no exposed flange and do not extend beyond the ceiling plane. Iolite PLUS Trimless requires a PLUS Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off and adjust up to 35°. Required Trimless Mud Plate: NIO-TLMR-4PR Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICDCP-415, NHIOICDCP-420 Lumens / Wattage: Up to 2000lm / 24W (varies by housing) Color Temperature: Comfort Dim (3000K-2000K) Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Matte Powder White Listing: cULus listed for damp locations Accessories: NIO-AS, NIO-HC, NIO-4PRTFA

Specification

• Brand: Nora Lighting
• SKU: NIO-4PRTLACDXMPW/HL
• UPC: 732180567942
• Product Line: LE46
• Product Family: 4" Iolite Dedicated Trimless
• Product Type: NIO-4PRTLA
• Color Temperature: Comfort Dim (3000K-2000K)
• Wattage: 20W or 24W
• Lumens: 1500lm or 2000lm (varies by housing)
• CRI: 90
• Product Dimensions (W x H x L): 3.625 x 4.75 x 3.625
• Finish Color: Matte Powder White
• Product Weight (lb): 1

Photometric Layout
