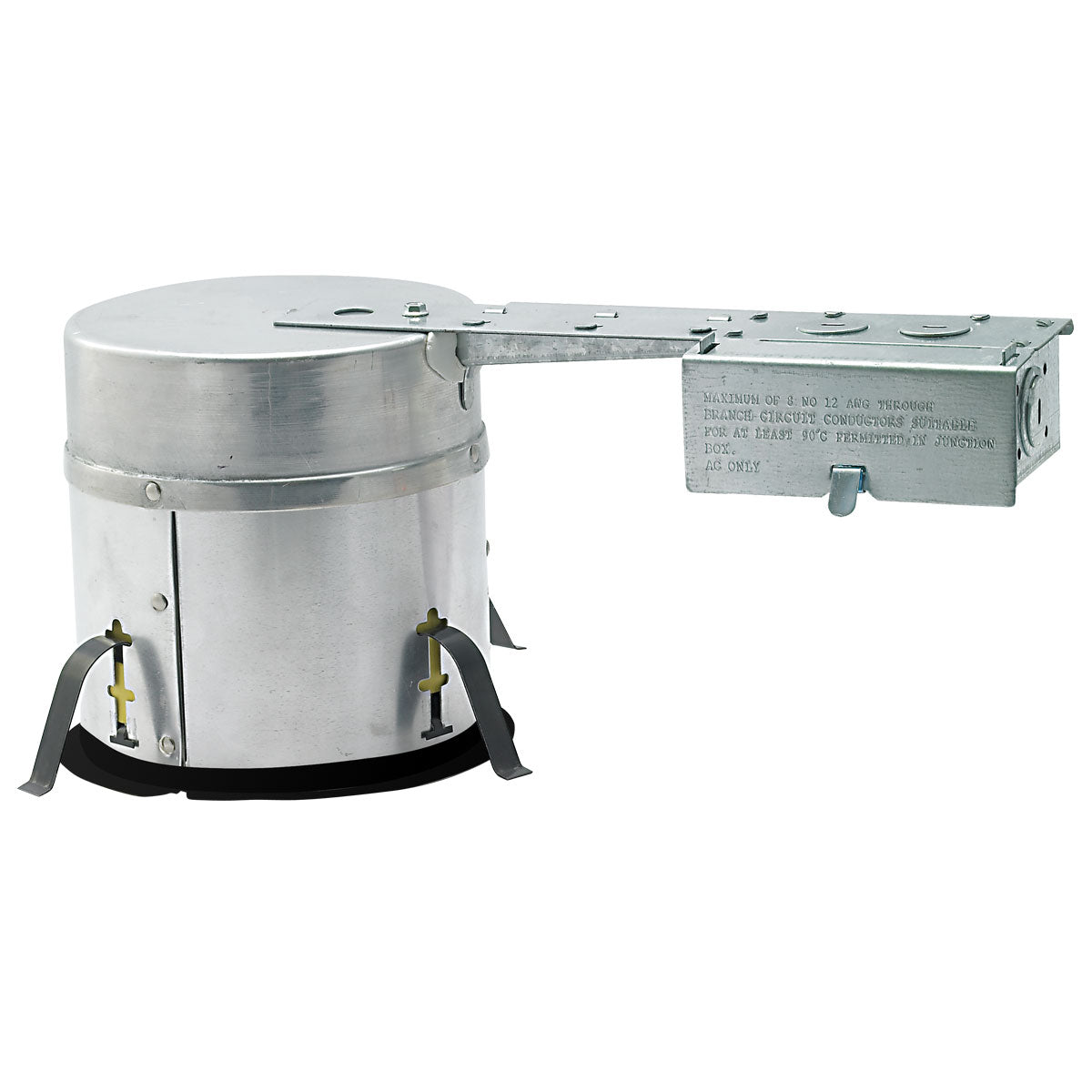

Universal recessed housing is the base standard for line voltage recessed fixtures. Designed for IC applications, it offers the widest range and variety of high quality, attractive finishing trims for lamps ranging from simple A-type to larger PAR sources.

Minimum Clearances: Direct contact allowed; no clearances are required

Ceiling Thickness: Accepts 3/8³-1-3/8³ to accommodate various ceiling thicknesses

Lamp Position: Socket clips directly to back of trim for perfect 90º vertical alignment of lamp socket. Socket is automatically positioned for optimum performance and lamp position consistency when socket is installed on trim or reflector.

Installation: High tensions tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience

Junction Box: Junction box is listed for through branch circuit wiring and contains seven 1/2³ knockouts and four Romex® with strain relief

Electrical: Quick Connector provided

Maximum Wattage: 50W (actual wattage varies with trim)

Dimensions:
Length: 13-1/4³
Width: 5-1/2³
Depth: 5-7/8³
Ceiling Opening: 5-5/8³

Listings:
cULus Damp Location w/ Feed Through
cULus Wet Location (only with designated trims)
WSEC ASTM E283 for Air-Tight
