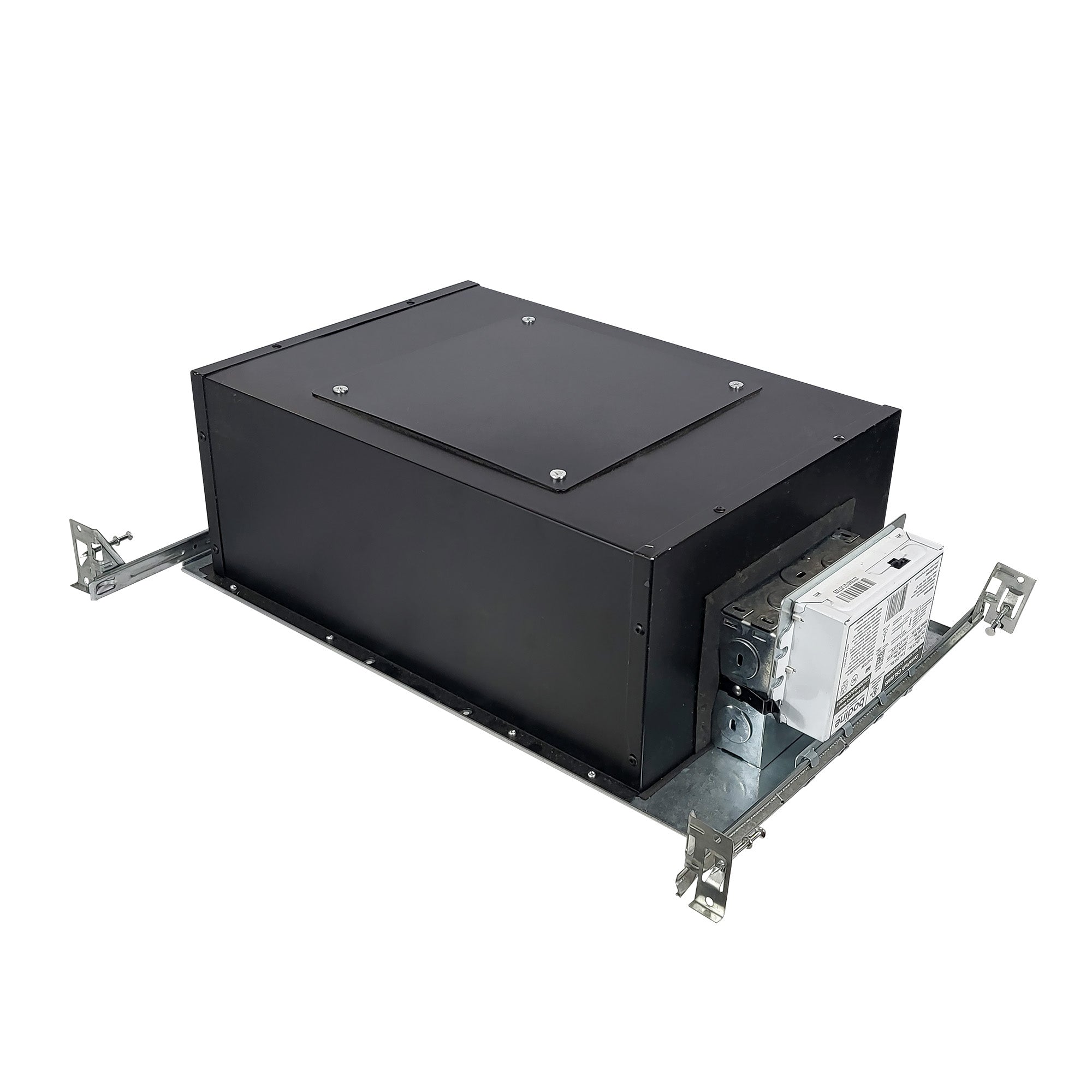

Nora Lighting NHIOICD-420LE4/EM2 4" Iolite LED Dedicated IC Air-Tight New Construction Housing w/ EM Driver, 27W, 120/277V input; Triac / ELV / 0-10V dimming

Details of the Nora Lighting NHIOICD-420LE4/EM2 4" Iolite LED Dedicated IC Air-Tight New Construction Housing w/ EM Driver, 27W, 120/277V input; Triac / ELV / 0-10V dimming

New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver. Input Voltage: 120/277V Wattage: 24W + 3W emergency battery Dimming: Phase (Triac or ELV) or 0-10V Ceiling Thickness: Up to 0.5in. Extension collar accessory for ceilings up to 2", ordered separately (NIO-4EXTC2) Compatible Trims: NIO-4PRTLA, NIO-4PRTLNDC, NIO-4RC, NIO-4RD, NIO-4RG, NIO-4RNB, NIO-4RNDC, NIO-4RPH, NIO-4RPHA, NIO-4RSL, NIO-4RSLA, NIO-4RTLA, NIO-4RTLNDC, NIO-4RW, NIO-4SC, NIO-4SD, NIO-4SDSQ, NIO-4SG, NIO-4SNB, NIO-4SNDC, NIO-4SNDSQ, NIO-4SW Emergency: 6W integrated emergency driver included with remote test switch included Listing: cULus Listed for Damp Locations (Wet locations when used with compatible trim)

Features:

• IC Air-Tight rated
• Emergency options
• Dimmable
• 5-year limited warranty
• 24-1/2³ hanger bars with alignment feet and nails included
• cULus listed for damp location (wet location when used with specific downlights)

Specification

• Brand: Nora Lighting
• SKU: NHIOICD-420LE4/EM2
• UPC: 732180567539
• Product Line: LE46
• Product Family: 4" Iolite Dedicated Housing
• Product Type: Recessed
• Wattage: 27W
• Product Dimensions (W x H x L): 10.75 x 5.75 x 17.125
• Finish Color: Unfinished
• Product Weight (lb): 6.5
