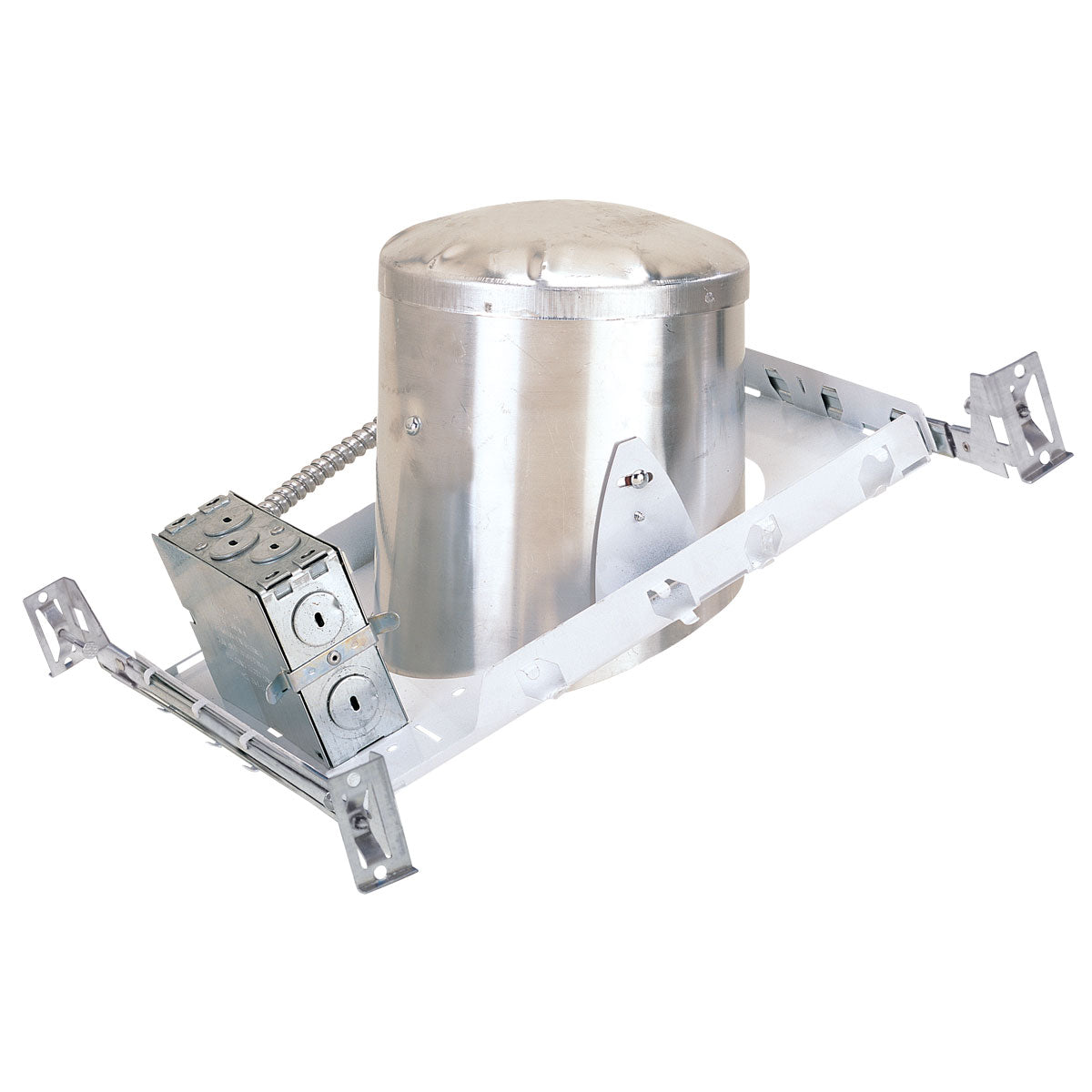

Nora Lighting NHIC-926QAT 6" Line Voltage IC AT Sloped Ceiling New Construction Housing

Sloped ceilings offer a clear path of unobstructed light from a 6/12 pitch (22-1/2 degree) ceiling to any floor or work plane. Airtight housing additionally reduces energy costs by decreasing the flow of air escaping through the ceiling. Rated for direct contact with insulation and adjacent ceiling structures, Nora™s sloped IC housings are easy and quick to install and accept standard down light or adjustable finishing trims. Also available as remodel.

Minimum Clearances: œIC� Housings are direct contact rated; no minimum clearance is required

Slope Angle:
Pitch: Minimum Pitch: 2/12, Maximum Pitch 6/12
Angle: Miminum Angle: 4.75°, Maximum Angle: 26.5°

Bar Hangers: Bar hangers are adjustable from 13-5/8³ to 24-1/2³ and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.

Maximum Wattage: 75W (actual wattage varies with trim)
