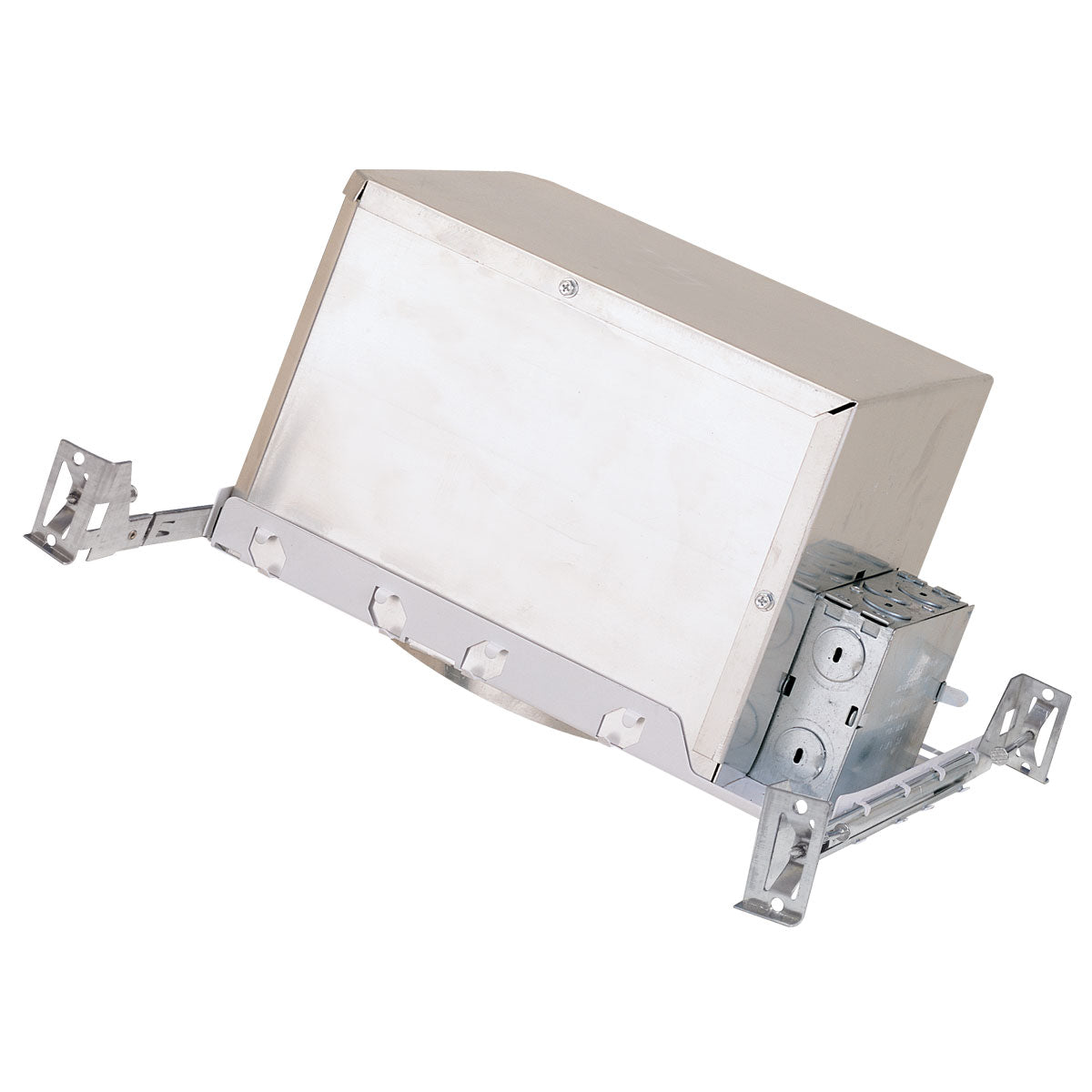

Nora Lighting NHIC-926DWQAT 6" Line Voltage IC AT Sloped Ceiling New Construction Double Wall Housing

Nora LightingSKU: NHIC-926DWQAT

Price:
Sale price$42.75

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

IC double wall housing for sloped ceilings offers a clear path of unobstructed light from a 6/12 pitch (22-1/2 degree) ceiling to any floor or work plane. Double wall construction allows use of larger PAR38/R40 light source to deliver more illumination and provide a better finished appearance. Rated for direct contact with insulation and adjacent ceiling structures, Nora’s sloped IC housings are easy and quick to install and accept standard down light or adjustable finishing trims.

Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required

Slope Angle:
Pitch: Minimum Pitch: 2/12, Maximum Pitch 6/12
Angle: Miminum Angle: 4.75°, Maximum Angle: 26.5°

Bar Hangers: Bar hangers are adjustable from 13-5/8″ to 24-1/2″ and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.

Maximum Wattage: 100W (actual wattage varies with trim)

Additional information

Aperture Size

Light Source

Construction Type

,

Application

Download PDF File

Specification
