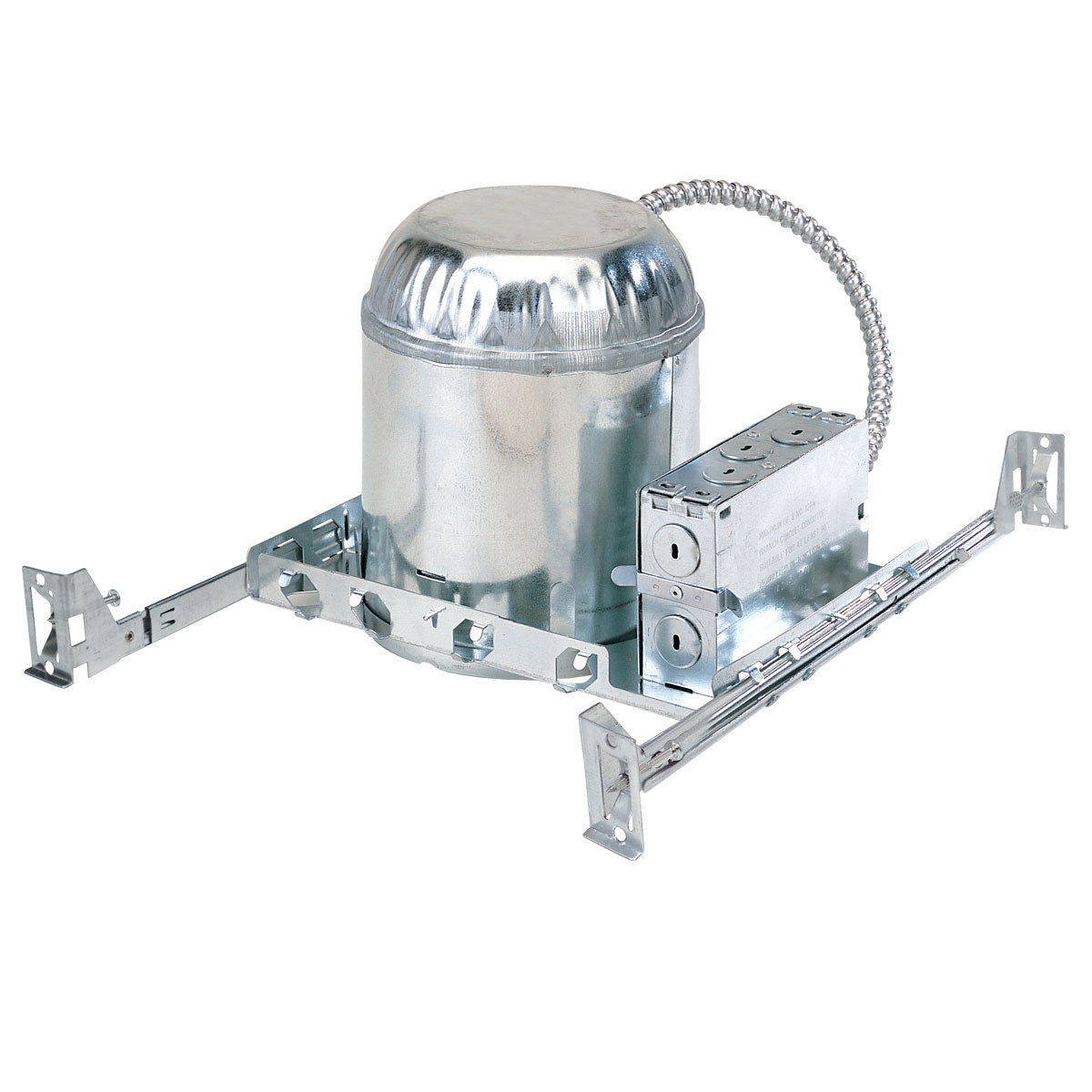

Nora Lighting NHIC-6G24ATFL 6" CFL IC AT New Construction Housing, Max 13-26W GU24

6³ GU24 Compact Fluorescent IC Airtight housings offers affordable solutions for energy savings in insulated ceiling environments. NO ballast are required for GU24 lamps, as the ballast is incorporated into the lamp itself, which means the end user can select the wattage by simply changing the lamps. Rated for direct contact with thermal insulation and meets air tight (AT) standards. IC housings offer trouble free installation and accept a wide variety of attractive finishing trims suitable for any interior.

Socket: Floating GU24 socket attaches to the top of the trim

Lamp Types:
26W GU24 CFL Max. (wattage varies per trim)
LED Retrofit (sold separetely)

Minimum Clearance: IC housings are rated for direct contact and does not have any minimum clearance requirements

Installation: Bar hangers are adjustable from 13-5/8³ to 24-1/2³ and can be repositioned 90 degrees

Dimensions:
Length: 10-1/8³
Width: 7³
Height: 7-1/2³
Ceiling Opening: 6-3/8³

Listings:
cULus Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
Washington State ASTM-283 for Air-Tight
