Description

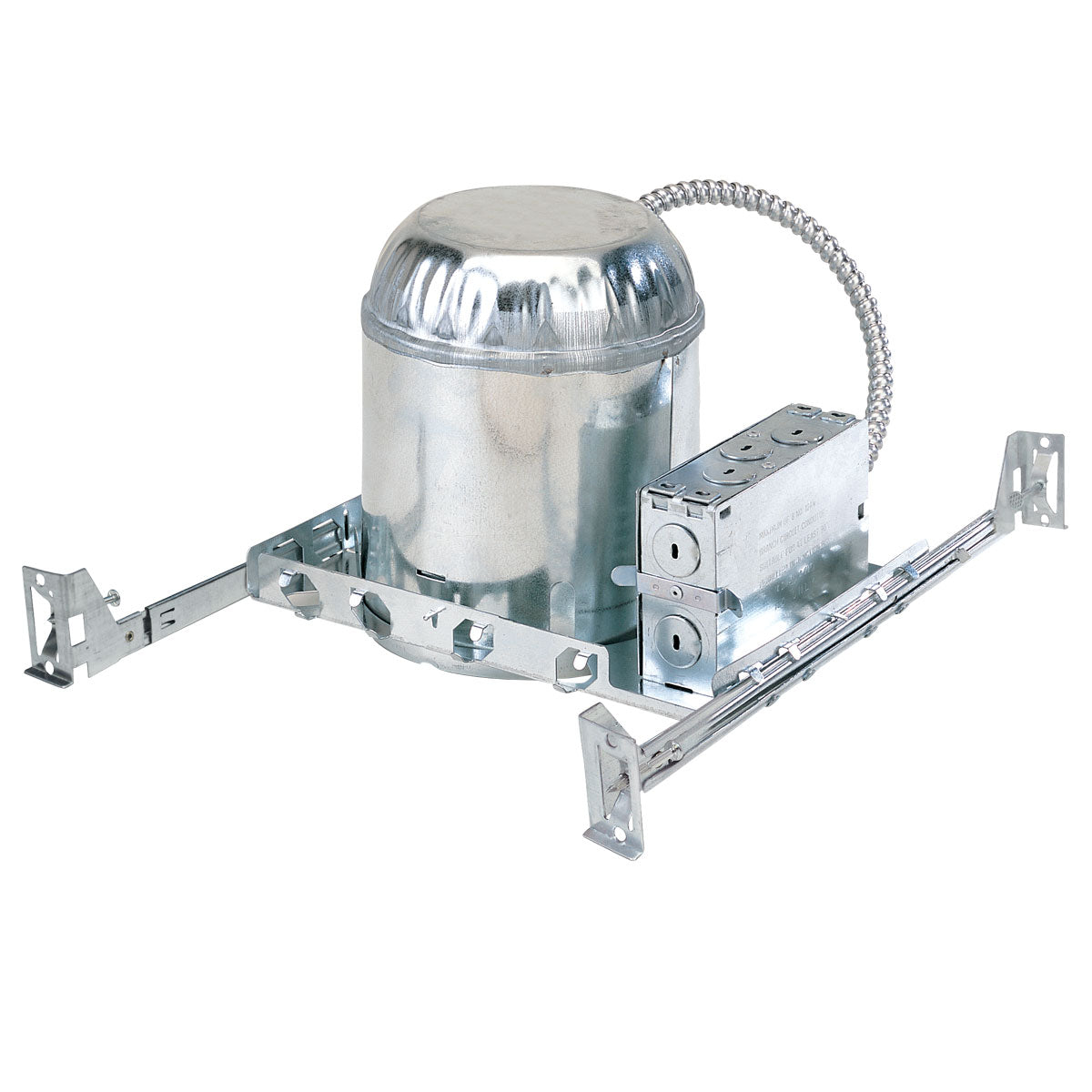

IC Recessed housings are high quality, light weight units ideal for use in insulated ceilings. Air-tight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation (except spay foam insulation) and combustive materials, IC housings are easy and quick to install and accept a wide variety of high quality, attractive finishing trims.
Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required
Floating Socket: Socket is free floating and installs on trim
Bar Hangers: Bar hangers are adjustable from 13-5/8″ to 24-1/2″ and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.
Maximum Wattage: 100W (actual wattage varies with trim)
FIRE BOX
NRA-126: Nora Lighting’s Fire Rated Recessed Light Enclosure allows architects, specifiers and installers to easily maintain the integrity of fire rated ceilings for one-hour. (Add: /FX)
