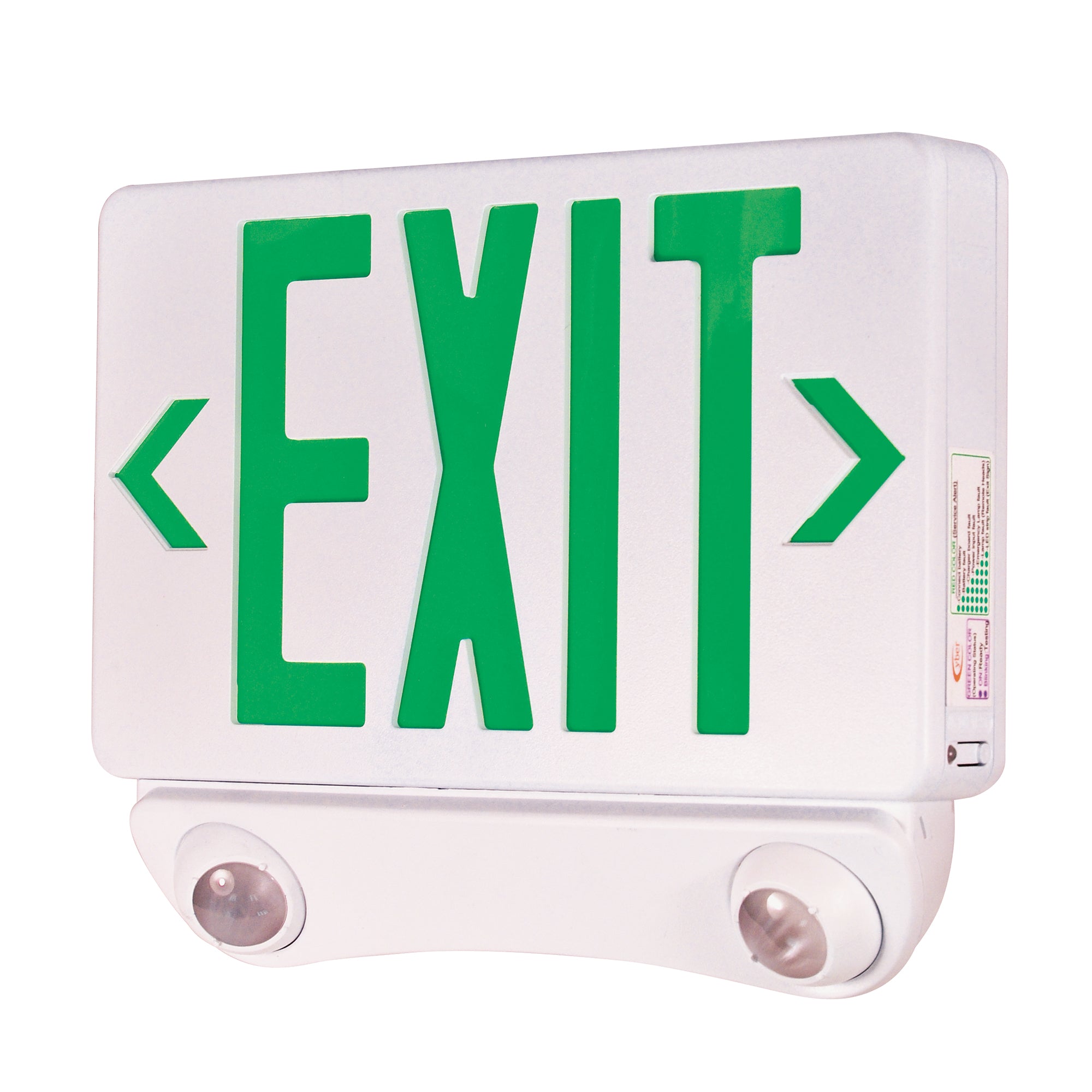

Nora Lighting NEX-730-LED/G LED Exit and Emergency Combination With Adjustable Heads, Green Letters / White Housing - White

LED Exit sign with dual emergency fixtures feature Ball and Socket LED lights for full adjustability. The exit sign is powered by LED source for maximum life without maintenance; Expected life 100,000 hours. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.

FEATURES
Fully adjustable 2.8 watt high-intensity LED head
Universal mounting “ Wall or ceiling
UL listed and meets or exceeds UL924, NEC, OSHA and NFPA 101 Life Safety Code requirements
Injection molded high impact and scratch resistant corrosion-proof and UL94 5V-0 flame retardant housing
Push-To-Test switch
Maintenace free NiCad battery
120V or 277V AC input
Field selectable Chevrons
6³ High and 3/4³ stroke letters
External LED status indicator
Available in Black or White
Damp location listed
Wet location shield accessory available (NEG-60). Sold separately.

Finishes: Black (B), or White (W)

Battery: 4.8V Replaceable 1.0Ah NiCad

Input Voltage: 120V or 277V AC

Dimensions:
Width: 1-3/4³
Height: 7-1/4³
Length: 11-3/4³
Max Extension: 9-1/2³
