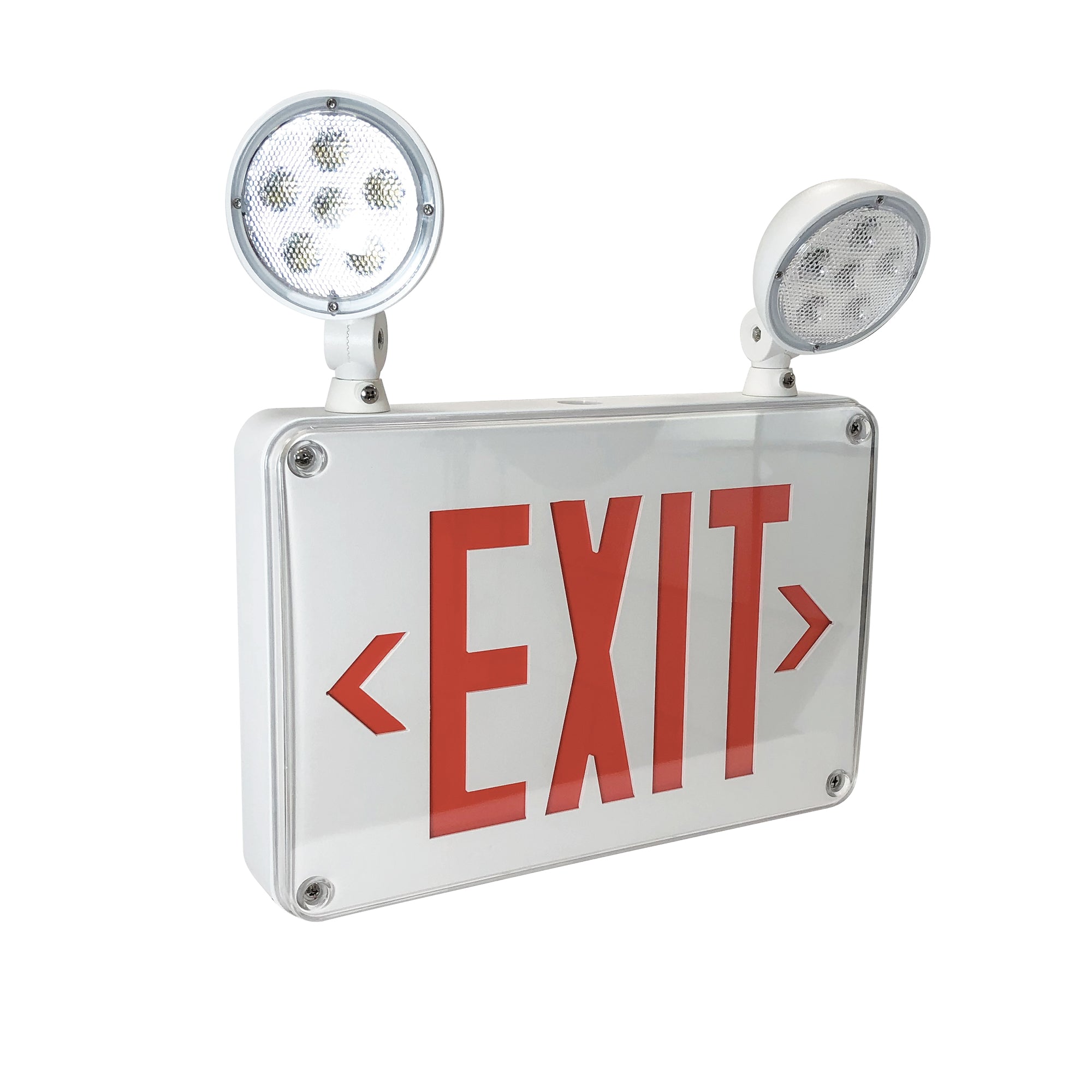

Nora Lighting NEX-720-LED/R-CC LED Self-Diagnostic Wet/Cold Location Exit & Emergency Sign With Battery Backup & Remote Capability Housing With Red Letters, Cold Weather Location - White

LED exit sign with adjustable dual LED emergency heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, both sign
and heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur.

FEATURES
Fully adjustable 0.75W LED emergency heads
Universal Mounting “ Wall or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test switch
Self Diagnostic Testing
Remote Capable with additional battery
High temperature maintenance free NiCad batteries
120V or 277V AC input
6³ Letters and 3/4³ stroke
Cold weather option includes heating pad to maintain operating temperature

ELECTRICAL
Voltage: 120/277VAC 60Hz input
Lumens / Wattage:
Normal Operation: 3.2W
Emergency Operation: 90lm / 0.75W per head
Batteries: (2) 3.6V Replaceable 1000mAh NiCad
Recharge Time: 24 hours
Operating Temperature: 0°C to 50°C (standard) / -25°C to
50°C (cold weather option)
Remote Capability: 3.6V 1.5W max.
