Application | |
---|---|
Light Source | |
Remote Capable |
Yes |
Options |
Description

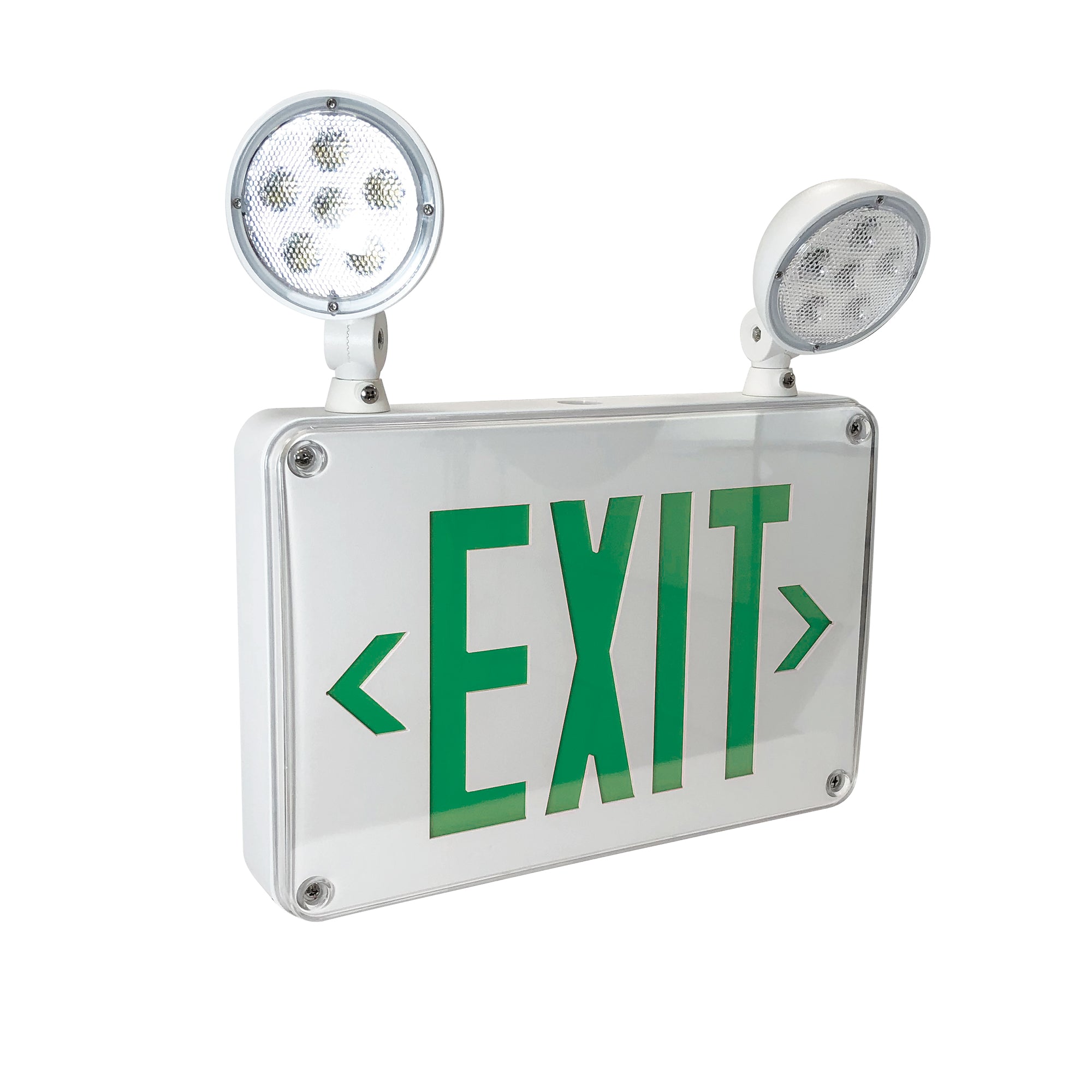

LED exit sign with adjustable dual LED emergency heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, both sign
and heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur.
FEATURES
• Fully adjustable 0.75W LED emergency heads
• Universal Mounting – Wall or Side Mounting
• UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
• Polycarbonate plastic enclosure with flame retardant and wet location rated
• Push-To-Test switch
• Self Diagnostic Testing
• Remote Capable with additional battery
• High temperature maintenance free NiCad batteries
• 120V or 277V AC input
• 6″ Letters and 3/4″ stroke
• Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Lumens / Wattage:
Normal Operation: 3.2W
Emergency Operation: 90lm / 0.75W per head
Batteries: (2) 3.6V Replaceable 1000mAh NiCad
Recharge Time: 24 hours
Operating Temperature: 0°C to 50°C (standard) / -25°C to
50°C (cold weather option)
Remote Capability: 3.6V 1.5W max.
