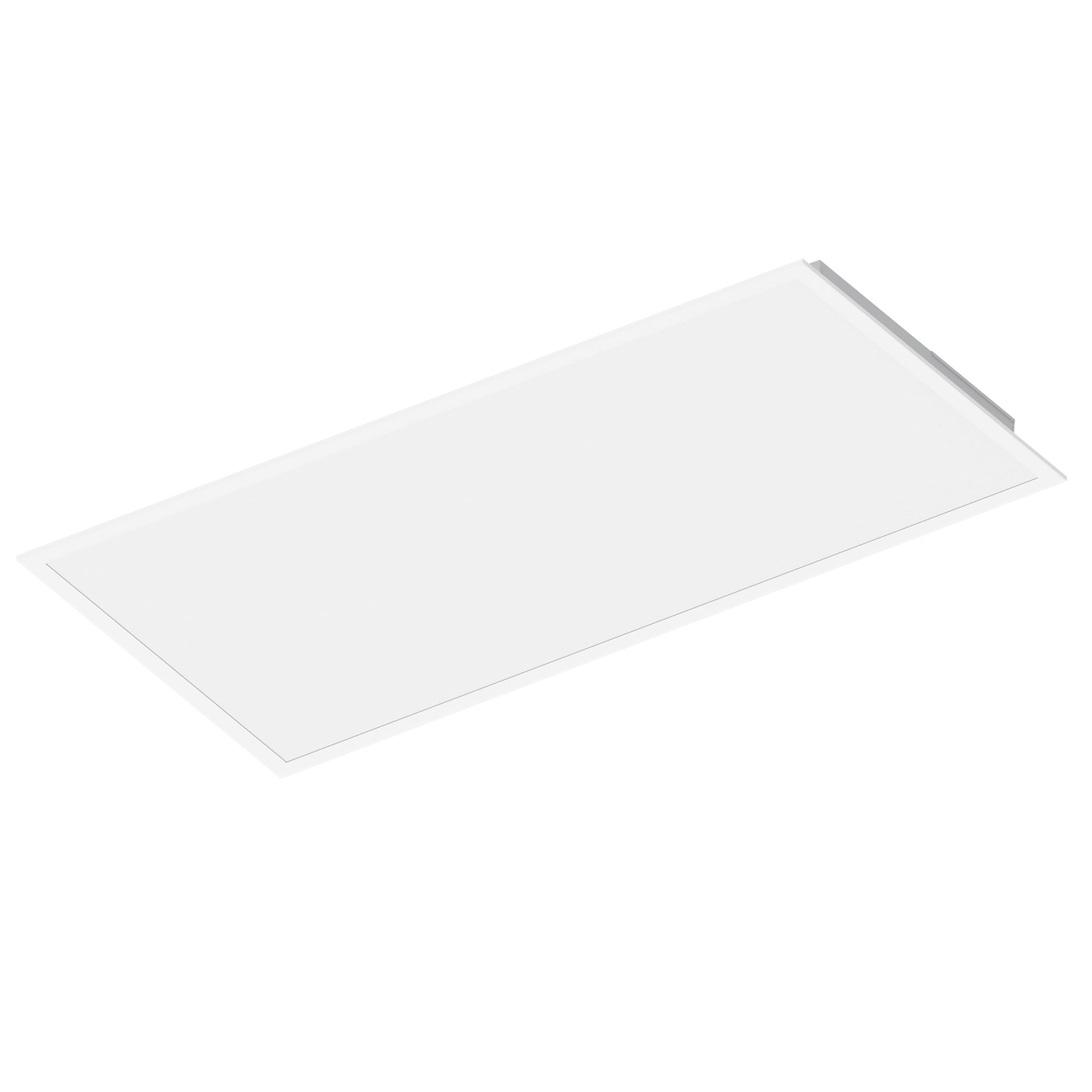

Nora Lighting NCSP-24/334W 2'x4' Contractor Series LED Backlit Panel with Selectable Lumens & CCT (3000/3500/4000K), White (4-Pack)

Details of the Nora Lighting NCSP-24/334W 2'x4' Contractor Series LED Backlit Panel with Selectable Lumens & CCT (3000/3500/4000K), White (4-Pack)

2'x4' LED Backlit can be utilized in offices, conference rooms, libraries, and other task areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allow the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Contractor Series are sold in bulk packs (Pack of 4). Input Voltage: 120-277VAC Lumens: Selectable Lumens (4700lm / 5200lm / 5700lm) Wattage: Selectable Wattage (35W / 40W / 45W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit or Surface Mount Kit (ordered separately) Listing: cETLus Listed for Damp Locations

Specification

• Brand: Nora Lighting
• SKU: NCSP-24/334W
• UPC: 732180816873
• Product Line: CS01
• Product Family: Contractor
• Product Type: Panel
• Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
• Wattage: Selectable Wattage (35W / 40W / 45W)
• Lumens: Selectable Lumens (4700lm / 5200lm / 5700lm)
• CRI: 80
• Product Dimensions (W x H x L): 47.75 x 1.75 x 23.75
• Finish Color: White
• Product Weight (lb): 9.5

Photometric Layout
