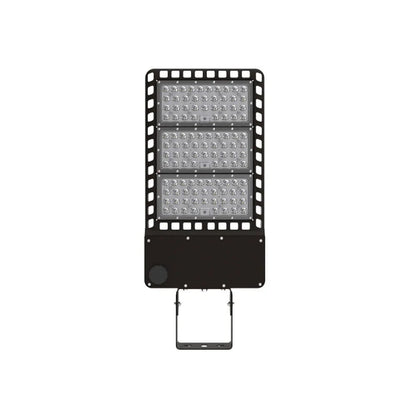

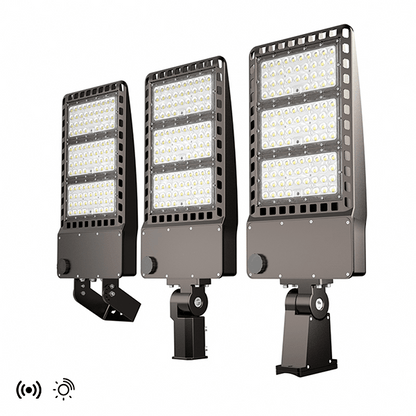

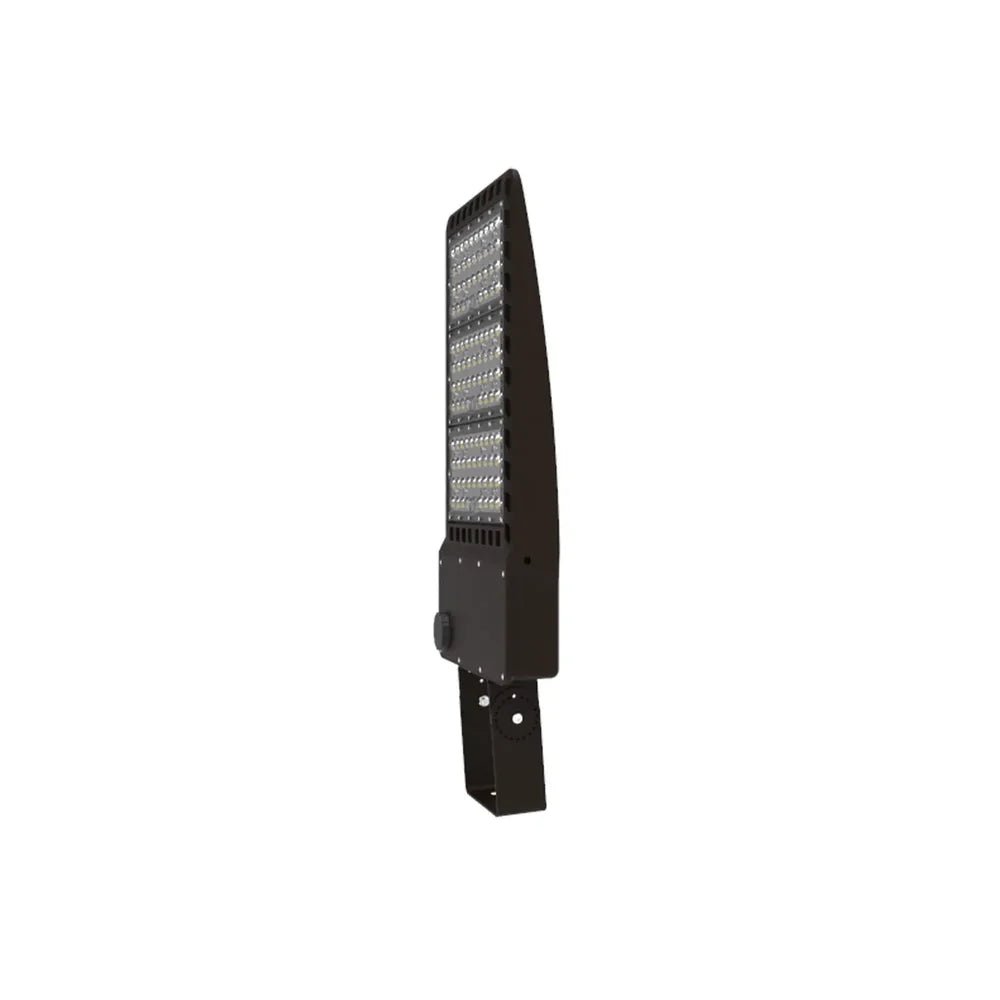

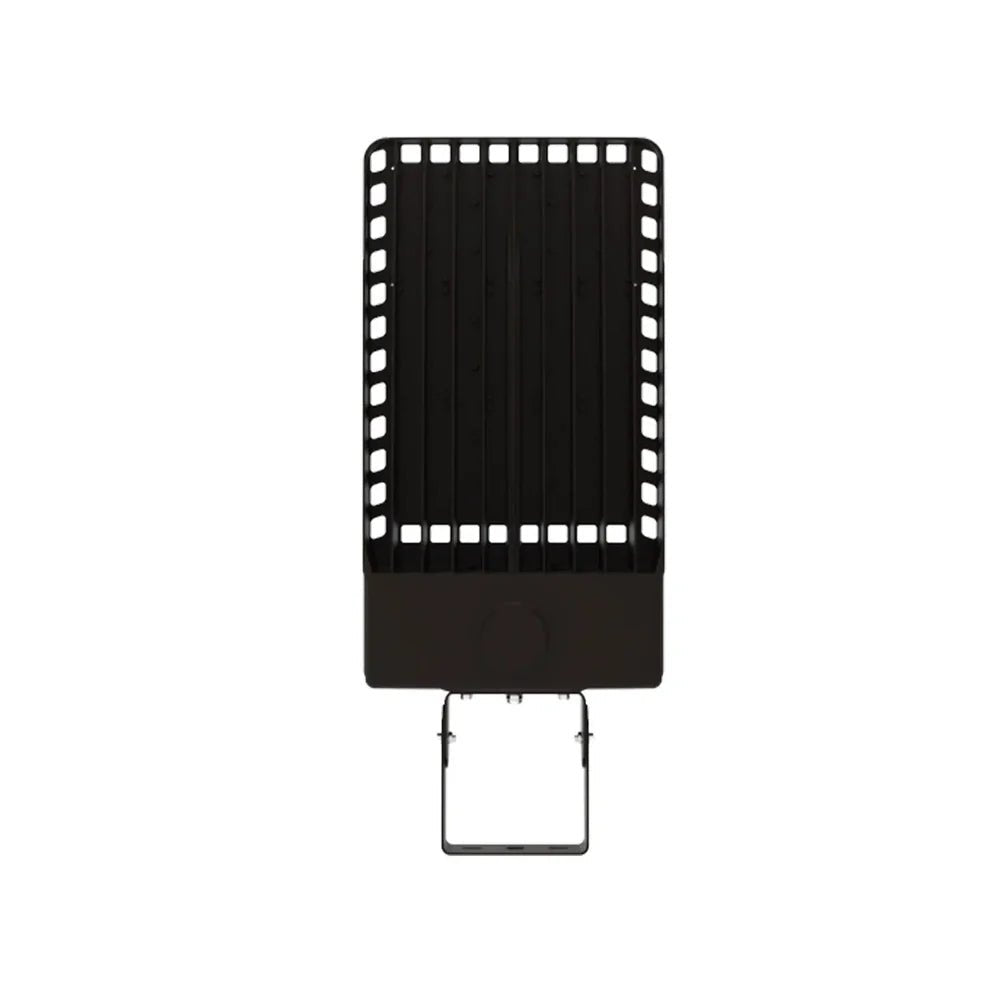

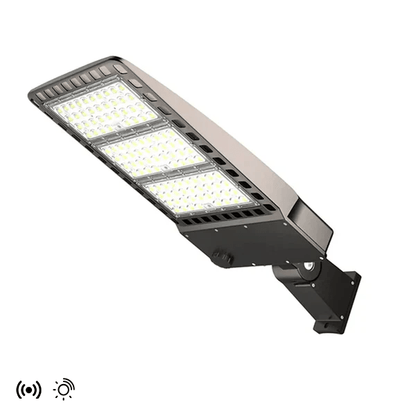

The Malibu Selectable Wattage LED Shoebox Area Light is a versatile and powerful lighting solution designed for large outdoor spaces. With selectable wattage options of 200W, 240W, and 300W, this fixture is ideal for parking lots, streets, and public spaces. It supports 277-480V input, providing flexibility for high-voltage applications.

Delivering a high luminous efficacy of 150 lm/W, this light ensures bright and uniform illumination. Preset to a 5000K cool white color temperature, it offers crisp, clear lighting for enhanced visibility. The 0-10V dimming capability allows for adjustable brightness, optimizing energy use. Built for durability, the die-cast aluminum housing is IP65-rated for water and dust resistance, ensuring reliable performance in harsh outdoor conditions.

The fixture offers multiple lens angle options (T3, T4, T5) for customized light distribution. With a 50,000-hour average lamp life, this shoebox light provides long-lasting performance with minimal maintenance.

Key Features

• Wattage Options: 200W/240W/300W
• Color Temperature: 5000K Cool White (preset at factory)
• Dimming: 0-10V
• Input Voltage: 120-347V/480V
• Efficacy: 150 lm/W
• Certifications: ETL, FCC, DLC listed
• Lens Angle Options: T3, T4, T5 for customizable light distribution
• Durability: IP65 waterproof and dustproof rating
• Operating Temperature: -22°F to 104°F
• Housing: Die-cast aluminum with dark bronze finish
• Package Quantity: 1 fixture
• Warranty: 5 years

Dimensions

• Fixture Size: 22.17” x 12.99” x 3.74"
• Weight: 14.1 lbs

This 277-480V compatible Malibu Selectable Wattage LED Shoebox Area Light is designed for outdoor areas requiring reliable, high-performance lighting. With selectable wattage and multiple lens options, this fixture is a durable and adaptable solution for various lighting needs.

Downloads

• Specification Sheet
