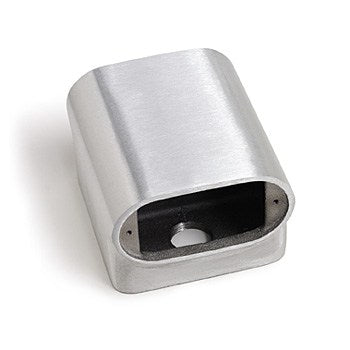

Lew Electric FDN-200-A Aluminum Double Face Nozzle W/ Partition

The Lew Electric FDN-200-A is an aluminum floor nozzle, it is double sided and each side requires 1 sold separately plate.  Each side can hold up to 1 duplex receptacle. The box is partitioned, each side has a 3/4" opening to affix your rigid conduit to. The box includes a 3/4" threaded pipe nipple, reducing washer, and lock nut, as well as a neoprene gasket. The box is 4.75" wide, 3" tall, and 4.25" deep. The nozzle is UL listed for the USA, and cUL listed for Canada. The nozzle can also be used in countertops.

***Outlets in second picture sold separately***

Specifications:

• Material: Die cast aluminum
• Can hold up to 2 duplex receptacles
• Dual sided
• Each side requires 1 sold separately plate
• UL listing # 489H
• UL listed for USA
• cUL listed for Canada
• Partioned, two 3/4" conduit openings
• Dimensions:  4.75"W x 3"H x 4.25"D
• Includes: Pipe nipple, reducing washer, lock nut, gasket
• Warranty:  1 year

Lew Electric FDN-200-A Drawing (PDF)
Lew Electric FDN-200-A Installation Instructions (PDF)
