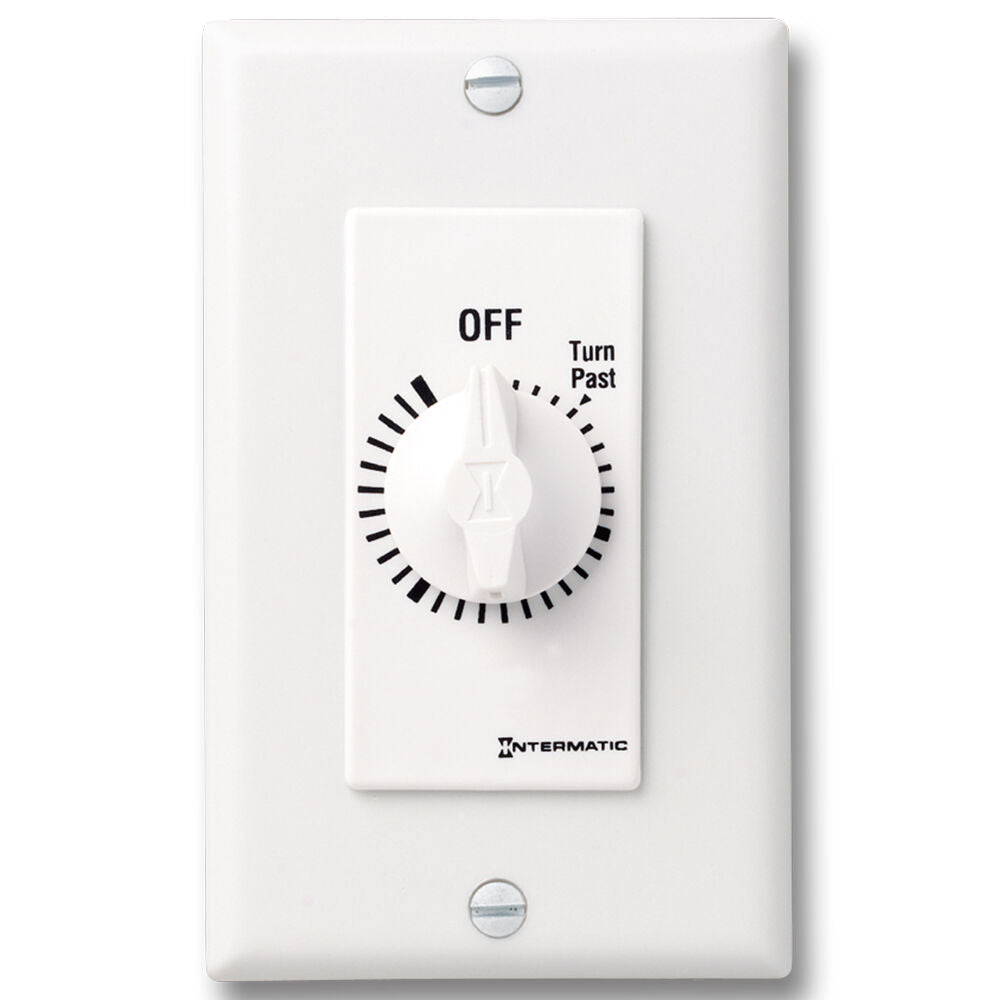

Intermatic Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 2 Hour Max, Without Hold, White

IntermaticSKU: FD2HW

Price:
Sale price$36.53

Shipping calculated at checkout

Stock:
Only 5 units left

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

  • 2-Hour timer
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
Color White Input Voltage Range(s) 125-277 VAC, 50/60 Hz
Mechanism Type Analog/Mechanical Operation Mode Countdown
Switch Type SPST Wiring Configurations Single
Hold Mode Included No Wall Plate Configurations Single-Gang, Multi-Gang
Countdown Time 2 hrs Neutral Connection Required No
Warranty Period 1-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
CAProp65Message Please see the Warning @ www.P65Warnings.ca.gov Country Of Origin Tunisia
Motor Load Ratings Ranges 1 HP, 125 VAC; 2 HP, 250 VAC Resistive Heater 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
RoHS Certification X Tungsten (Incandescent) Range(s) 7 A, 125 VAC, 50/60 Hz, 875 W
Tungsten Incandescent 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W Auto Start/Stop False
Check Valve False DOE Compliant False
Freeze protection False Leaf Screen False
Operating Temperature Max (°C) 49 Operating Temperature Max (°F) 120
Operating Temperature Min (°C) 4 Operating Temperature Min (°F) 40
Product Depth (in) 1.25 Product Depth (mm) 31.8
Product Height (in) 4.125 Product Height (mm) 104.8
Product Width (in) 1.75 Product Width (mm) 44.5
Self Priming False Submersible False
