Description

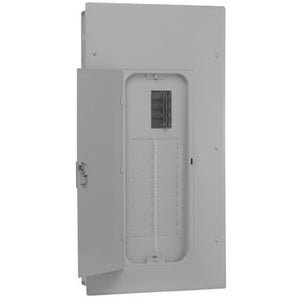

GE PowerMark Gold TSM1610CSCU 1-Phase 3-Wire 32-Spaces Standard Ring Type Narrow Meter Socket Load Center, 100 AMP, 120/240 VAC, 22 KAMP Interrupt Rating
SPECIFICATIONS
- PowerMark Gold Meter Socket Load Center,
- Standard Residential Ring Type Narrow,
- Size: 14.49 IN W x 5.86 IN D x 27.29 IN HT,
- Voltage Rating: 120 - 240 VAC,
- Amperage Rating: 100 AMP,
- 1 Phase,
- Surface Mount,
- NEMA Type 3R Enclosure,
- Wire Size: 12 - 2/0 AWG CU/AL,
- 32 Spaces, 16 Circuit, 1 Poles,
- Wiring Configuration: 3-Wire,
- Interrupt Rating: 22 KAMP,
- THHQL Circuit Breaker,
- Surface Cover,
- Includes: Bonded Neutrals
FEATURES
- Accepts field installed fifth jaw terminal in the 3 or 9 o’clock position
- Devices include removable closing cap
- Surface mounted units have two hub provisions on top end wall
- Residential
Applications: Suitable for use as service entrance equipment when Installed in accordance with the National Electrical Code
Standards: UL Listed, EUSERC Certified
