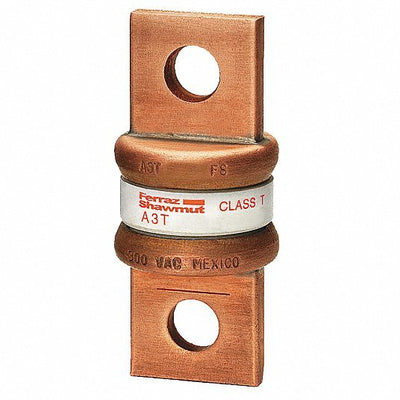

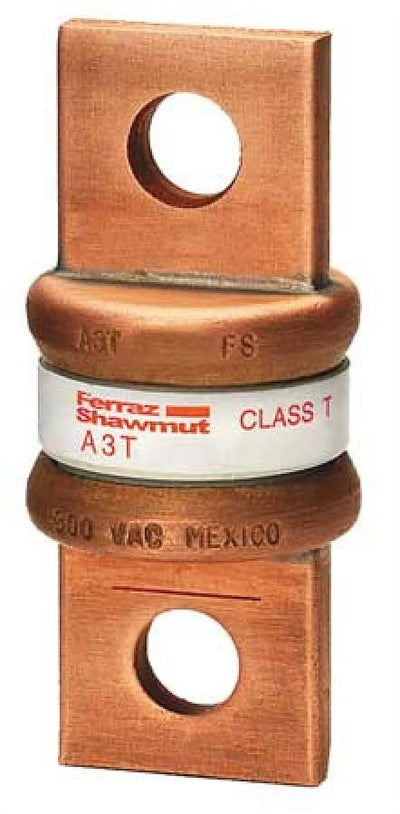

Fuse Amp-Trap® 300V 15A Fast-Acting Class T A3T Series

MersenSKU: A3T15

Price:
Sale price$14.00

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

APPROVALS & STANDARDS

  • UL listed to standard 248-15 File E2137
  • CSA certified to standard C22.2 no. 248.15
  • DC listed to UL standard 248

KEY FEATURES & BENEFITS

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

  • Extremely current-limiting for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Small physical size for greater design flexibility

APPLICATIONS

  • Load centers
  • Panelboards
  • Switchboards
  • Circuit breakers
  • Metering centers





DOCUMENTS & RESOURCES

DATASHEET

DRAWINGS

CURVES

COMPLIANCE


SPECIFICATIONS

  • Item Number: A3T800
  • Item Description (ERP): 300V 800A T FUSE
  • Short Description: Fuse Amp-Trap® 300V 800A Fast-Acting Class T A3T Series
  • EAN/UPC Code: 782001890810
  • Rated voltage AC UL: 300   V
  • Rated voltage DC UL: 160   V
  • Ampere Rating: 800   A
  • ROHS Compliant: Yes
  • Fuse Class: Class T
  • Speed/Characteristic: Fast-Acting
  • Mounting: Bolted
  • AC Max I.R./Breaking Capacity: 200   kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG
  • Product Diameter: 52.8   mm
  • Product Length: 85.9   mm
  • Product Weight: 0.4082   kg
COMPATABILITY
  • A3T- Mersen
  • JJN - Bussman
  • JLLN - Little Fuse
  • TJN - Edison
