- Brand: Federal Pacific
- Part #: UBIF260N

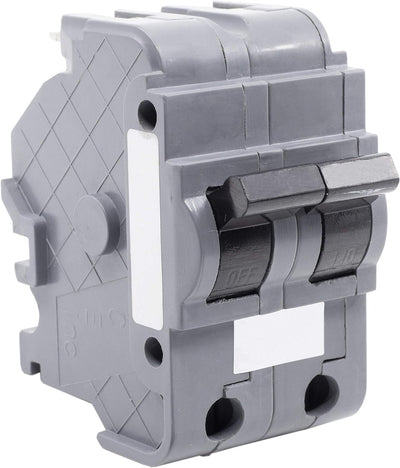

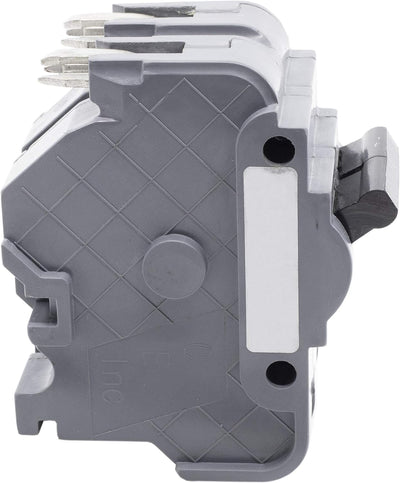

Connecticut Electric UBIF260N 60-Amp 2-Pole 120/240V Stab-Lok Replacement Circuit Breaker
Couldn't load pickup availability
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
Connecticut Electric UBIF260N 60-Amp 2-Pole 120/240V Stab-Lok Replacement Circuit Breaker
In Stock
Ships in 1–3 Business Days
Free Nationwide Shipping
30-Day Returns
Product Details
Description
Specifications
- Manufacturer: Connecticut Electric
- Part Number: UBIF260N
- Common Part Number: UBIF260
- Replacement For: Federal Pacific NA260
- Product Type: Replacement Circuit Breaker
- Series / Type: UBIF / Type NA Style
- Panel Compatibility: Federal Pacific Stab-Lok Load Centers
- Amperage: 60A
- Number of Poles: 2-Pole
- Voltage: 120/240VAC
- Interrupting Rating: 10kA (10,000 AIC)
- Phase: Single Phase
- Trip Type: Thermal
- Mounting Type: Plug-In / Push-On
- Breaker Width: 2"
- Height: 2.55"
- Depth: 3.36"
- Number of Spaces: 2
- Certification: Intertek ETL Listed
- Standard: UL 489
- Application: Replacement breaker for compatible Federal Pacific Stab-Lok panels
- Condition: New
- UPC: 094925019445
- GTIN: 00094925019445
- Weight: 0.50 lbs.
- Warranty: 10-Year Manufacturer Warranty
Product Description
The Connecticut Electric UBIF260N is a 60 Amp, 2-pole, 120/240VAC replacement circuit breaker designed for compatible Federal Pacific Stab-Lok electrical panels and load centers that accept full-size Type NA breakers.
The UBIF260N corresponds to the Federal Pacific NA260 configuration and features a full-size 2-inch-wide, 2-pole design that occupies two 1-inch panel spaces. It uses a plug-in / push-on connection for installation in compatible Federal Pacific Stab-Lok load centers.
Rated at 60 Amps and 120/240VAC, the UBIF260N provides a 10,000 AIC interrupting rating for overcurrent and short-circuit protection.
Unlike discontinued original Federal Pacific breakers, the UBIF260N is newly manufactured by Connecticut Electric as a replacement breaker. It is Intertek ETL Listed for use in compatible Federal Pacific panels.
Key Features
- 60 Amp
- 2-Pole
- 120/240VAC
- 10,000 AIC
- Newly manufactured by Connecticut Electric
- UBIF / Type NA-style design
- Replacement for Federal Pacific NA260
- Designed for compatible Federal Pacific Stab-Lok load centers
- Full-size 2-inch-wide body
- Occupies two 1-inch panel spaces
- Plug-in / push-on mounting
- Intertek ETL Listed
- Listed to applicable UL 489 requirements
- New condition
- 10-year manufacturer warranty
Important Compatibility Information
The UBIF260N is a newly manufactured replacement breaker for compatible Federal Pacific Stab-Lok panels that accept Type NA-style breakers. It corresponds to the original Federal Pacific NA260 60A, 2-pole configuration.
Before ordering, verify the existing panel type, breaker configuration, 60A rating, 2-pole configuration, 120/240V rating, 2-inch body size, and Stab-Lok connection.
The UBIF260N should not be confused with thinner Federal Pacific Type NC breakers or Connecticut Electric's bolt-on Federal Pacific replacement breakers.
