Specifications

• Manufacturer: Federal Pacific Electric (FPE)
• Part Number: NJL631200
• Type: NJL
• Product Type: Molded Case Circuit Breaker
• Amperage: 200A
• Poles: 3
• Maximum Voltage: 600VAC
• Voltage Rating: 480VAC / 600VAC Class
• DC Rating: 250VDC
• Interrupting Rating: 30kA at 480VAC
• Trip Type: Thermal-Magnetic
• Connection: Load-Side Lugs
• Application: Commercial / Industrial
• Condition: Refurbished
• UPC: Not Available
• Status: Obsolete / No Longer in Production

Product Description

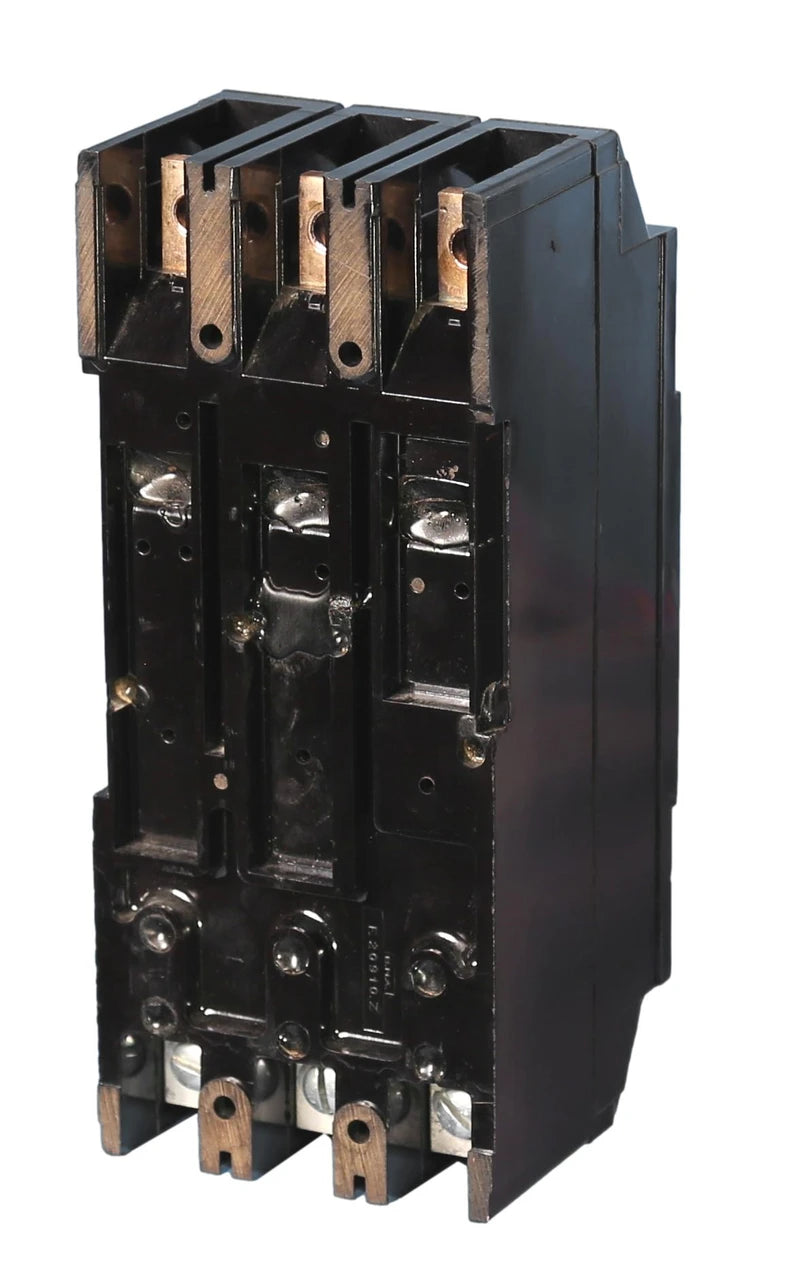

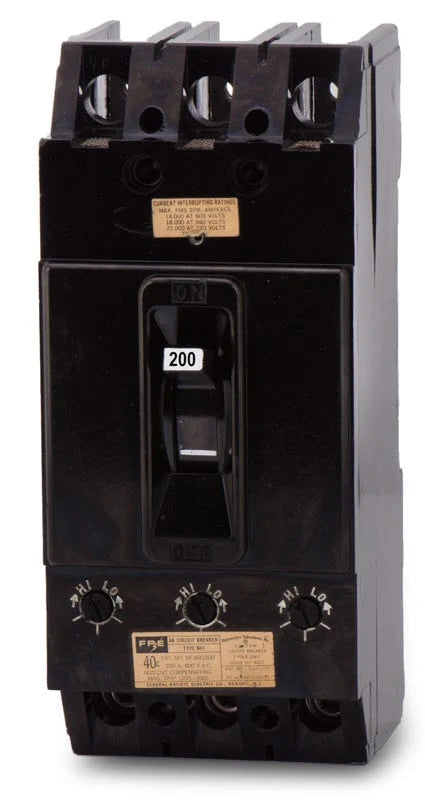

The Federal Pacific NJL631200 is a 200-Amp, 3-pole Type NJL molded case circuit breaker designed for legacy Federal Pacific commercial and industrial electrical equipment.

The breaker is rated up to 600VAC, with a 30kA interrupting rating at 480VAC, and uses thermal-magnetic overcurrent protection. The NJL631200 is an obsolete Federal Pacific breaker intended for applications requiring an exact replacement for existing compatible equipment.

Key Features

• 200-Amp rated current
• 3-pole configuration
• Type NJL molded case circuit breaker
• Up to 600VAC
• 250VDC rating
• 30,000 AIC at 480VAC
• Thermal-magnetic protection
• Load-side lugs
• Original Federal Pacific Electric / FPE equipment
• Obsolete legacy circuit breaker

Condition

Refurbished – Previously installed legacy circuit breaker that has been prepared for resale. Cosmetic appearance, labeling, and signs of prior installation may vary from unit to unit.

Important Compatibility Information

The NJL631200 is an obsolete legacy Federal Pacific molded case circuit breaker. Verify the NJL631200 catalog number, 200A rating, 3-pole configuration, voltage rating, physical dimensions, mounting configuration, and electrical equipment compatibility before ordering.

Do not select a replacement based solely on amperage and pole count.
