Specifications

• Manufacturer: Federal Pacific Electric (FPE)
• Part Number: NA315
• Product Type: Molded Case Circuit Breaker
• Series / Type: NA / Stab-Lok
• Amperage: 15A
• Number of Poles: 3-Pole
• Voltage: 240VAC
• Phase: 3-Phase
• Interrupting Rating: 10kA (10,000 AIC) at 240VAC
• Trip Type: Thermal-Magnetic
• Trip Functions: Long-Time / Instantaneous (LI)
• Trip Configuration: Common Trip
• Mounting Type: Plug-In / Stab-Lok
• Breaker Style: Full-Size Type NA
• Width: Approximately 3"
• Width Per Pole: 1"
• Application: Replacement breaker for compatible Federal Pacific / Stab-Lok panels and load centers
• Condition: Refurbished
• Manufacturer Status: Discontinued / Obsolete
• UPC: 722372887576
• Weight: Approximately 1 lb.

Product Description

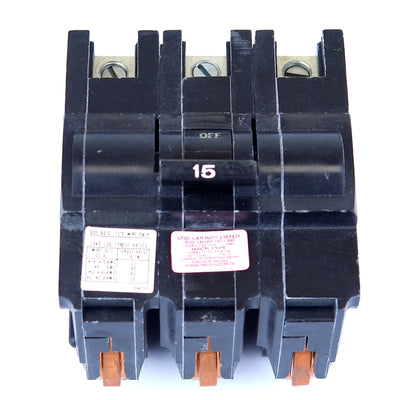

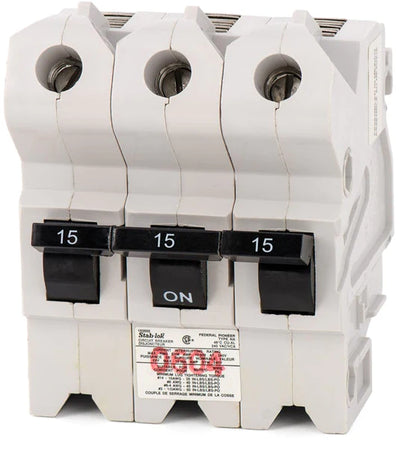

The Federal Pacific NA315 is a 15 Amp, 3-pole, 240VAC Type NA Stab-Lok circuit breaker designed for use in compatible Federal Pacific Electric (FPE) electrical panels and load centers.

The NA315 features a full-size 3-pole Stab-Lok design with plug-in mounting and is designed for compatible 3-phase electrical applications requiring a 15 Amp, 3-pole breaker. Its full-size Type NA configuration is approximately 3 inches wide, with one inch of width per pole.

The breaker provides thermal-magnetic overload and short-circuit protection with long-time and instantaneous trip functions and a 10,000 AIC interrupting rating at 240VAC.

The NA315 is a discontinued legacy circuit breaker commonly used as a replacement for an existing Federal Pacific NA315 in compatible Stab-Lok electrical equipment.

Key Features

• 15 Amp
• 3-Pole
• 240VAC
• 3-Phase
• 10,000 AIC at 240VAC
• Federal Pacific Stab-Lok
• Type NA
• Full-size 3-pole design
• Approximately 3 inches wide
• Plug-in / Stab-Lok mounting
• Common-trip configuration
• Thermal-magnetic protection
• Long-time and instantaneous trip functions
• Part number NA315
• Designed for compatible Federal Pacific Stab-Lok panels
• Refurbished condition
• Discontinued legacy replacement breaker

Condition

Refurbished: This is a previously installed circuit breaker that has been prepared for resale. Refurbished breakers may show cosmetic signs of previous installation, including minor scratches, markings, discoloration, or other normal wear. Product appearance, labeling, case style, and handle style may vary from the images shown.

Important Compatibility Information

The NA315 is a 15A, 3-pole, 240VAC full-size Type NA Stab-Lok circuit breaker.

Before ordering, verify the Federal Pacific manufacturer, NA315 part number, 15A rating, 3-pole configuration, 240VAC rating, physical body style, and Stab-Lok connection against your existing breaker and panel.

Older Federal Pacific breakers may have variations in labeling, handle style, and case appearance. Do not select a replacement breaker based on amperage alone.
