Specifications

• Manufacturer: Federal Pacific Electric (FPE)
• Part Number: NA240
• Product Type: Molded Case Circuit Breaker
• Series / Type: NA / Stab-Lok
• Amperage: 40A
• Number of Poles: 2-Pole
• Voltage: 120/240VAC
• Interrupting Rating: 10kA (10,000 AIC) at 240VAC
• Phase: Single Phase
• Trip Type: Thermal-Magnetic
• Trip Functions: Long-Time / Instantaneous (LI)
• Mounting Type: Plug-In / Stab-Lok
• Breaker Width: 2"
• Breaker Style: Full-Size Type NA
• Terminal Type: Load-Side Lugs
• Wire Range: #14–#2 AWG Copper
• Application: Replacement breaker for compatible Federal Pacific / Stab-Lok load centers
• Condition: New
• Manufacturer Status: Discontinued / Obsolete
• UPC: 646826311762
• Weight: Approximately 0.37 lbs.

Product Description

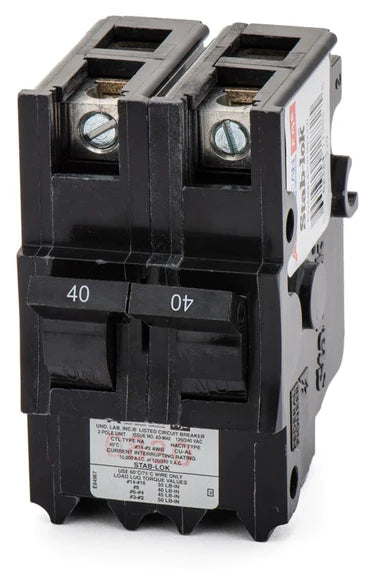

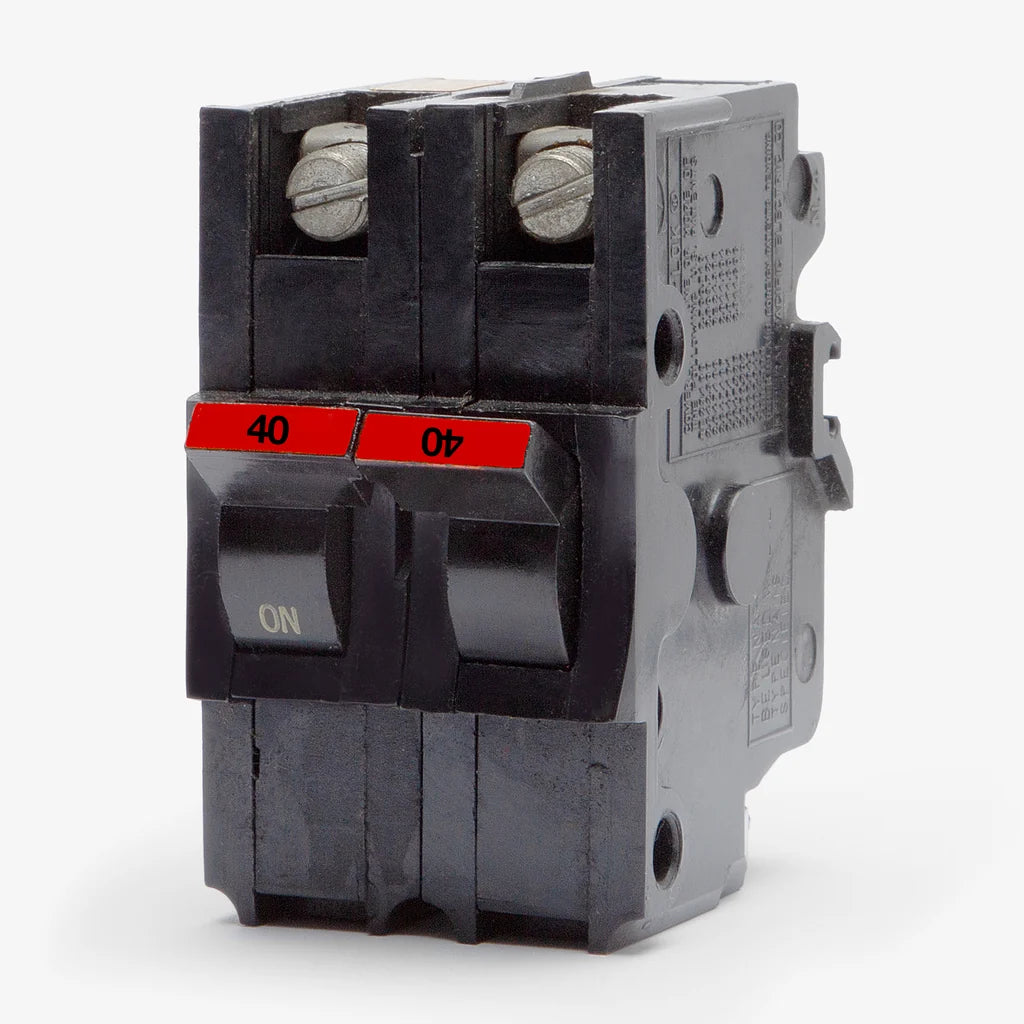

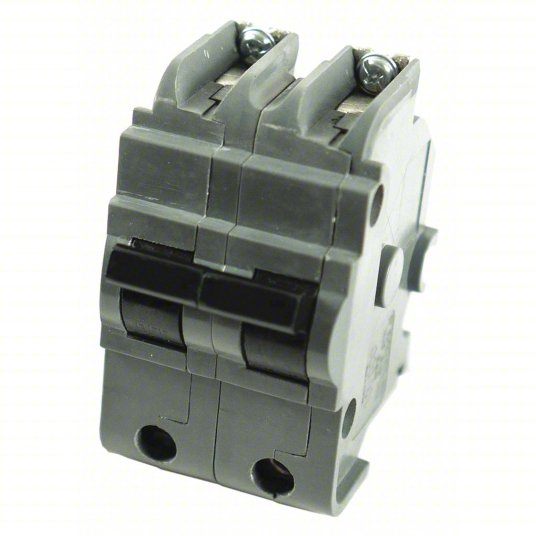

The Federal Pacific NA240 is a 40 Amp, 2-pole, 120/240VAC Type NA Stab-Lok circuit breaker designed for use in compatible Federal Pacific Electric (FPE) electrical panels and load centers.

The NA240 features the original full-size Type NA design with a 2-inch-wide body and plug-in Stab-Lok connection. Its 2-pole configuration provides common circuit protection for compatible 240V and 120/240V applications.

This breaker provides thermal-magnetic overload and short-circuit protection with long-time and instantaneous trip functions and a 10,000 AIC interrupting rating at 240VAC. It accepts #14 through #2 AWG copper conductors.

The NA240 is a discontinued legacy breaker commonly used as a replacement for an existing Federal Pacific NA240 in compatible Stab-Lok panels.

Key Features

• 40 Amp
• 2-Pole
• 120/240VAC
• 10,000 AIC at 240VAC
• Federal Pacific Stab-Lok
• Type NA
• Full-size 2-inch-wide 2-pole design
• Plug-in / Stab-Lok mounting
• Thermal-magnetic protection
• Long-time and instantaneous (LI) trip functions
• #14–#2 AWG copper conductor range
• Load-side lug terminals
• Part number NA240
• Designed for compatible Federal Pacific Stab-Lok load centers
• Discontinued legacy replacement breaker

Condition

New: New old stock or unused legacy inventory. Due to the age and discontinued status of Federal Pacific products, original packaging may not be included and the breaker or packaging may show minor signs of storage.

Refurbished: Previously installed circuit breaker that has been prepared for resale. Refurbished breakers may show cosmetic signs of previous installation, including minor scratches, markings, discoloration, or other normal wear. Product appearance, labeling, and handle style may vary from the images shown.

Important Compatibility Information

The NA240 is a 40A, 2-pole, full-size Type NA Stab-Lok breaker. It should not be confused with thinner Federal Pacific Type NC breakers or with other Stab-Lok breakers that share the same amperage.

Before ordering, verify the Federal Pacific manufacturer, NA240 part number, Type NA configuration, 40A rating, 2-pole configuration, voltage rating, physical size, and Stab-Lok connection against your existing breaker and panel.

Do not select a replacement breaker based on amperage alone.
