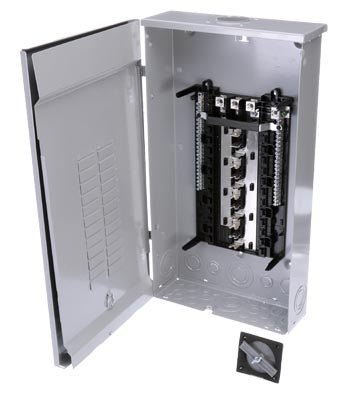

ES Series 125 Amp 12-Space 24-Circuit Main Lug Outdoor 3-Phase Load Center
Pairs well with
The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
- A 3-phase, 120/240 or 120/208-Volt, 125-Amp main lug load center with 12-spaces and 24-circuits
- Aluminum bus
- Ground bar field installed
- Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- Dual side inboard neutral
- Invertible for bottom feed application
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Pre-positioned bond screw eliminated bond straps/screw assemblies and reduces the risk of losing components in the field
- Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
- Rigid, sturdy base pan provides ruggedness required for harsh applications
- NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
- SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER.
- MAIN LUG WITH 12 1-INCH SPACES ALLOWING MAX 24 CIRCUITS.
- 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (125A) 100KA INTERRUPT.
- SPECIAL FEATURES: ALUMINUM BUS, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.
ES Series 125 Amp 12-Space 24-Circuit Main Lug Outdoor 3-Phase Load Center
