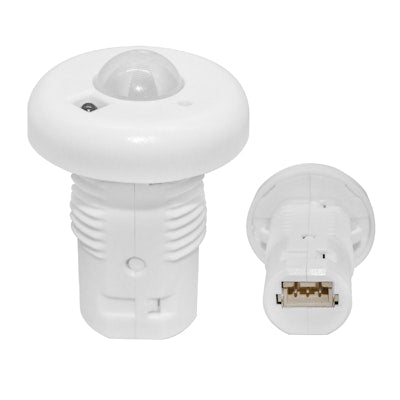

Envision S-SN-PIR-SL Snap On Sensor x SILVAIR Enabled - White

The Snap-On Sensor x SILVAIR Enabled provides advanced 360° detection with PIR motion and daylight sensing, optimizing indoor lighting efficiency. Operating at 10-14V DC with 50mA input, it features a white finish, IP20 damp location rating, and a maximum mounting height of 12 feet. Pre-fabricated onto fixtures, it supports up to 3,000 connected devices per zone and offers a Bluetooth range of up to 328 feet (line of sight), ideal for high-vibration or metal-rich environments.

Specifications:

• Brand: EnvisionLED

• SKU: S-SN-PIR-SL

• UPC: 810143715965

• Input Voltage: 10-14V DC | 50mA

• Operating Temperature: -4-104F°

• Finish: White

• 360° detection

• Max Bluetooth Range: 328’ line of sight

• Highly dependent on surrounding environment

• Bluetooth test recommended for range accuracy

• IP Rating: IP20 Damp Location

• Snap-On: sensor will be pre-fabricated at the factory level onto our various fixtures

• Max Mounting Height: 12ft

• Connect up to 3,000 devices on a zone

• PIR motion sensor: Ideal for indoor environments with clear lines of sight to the area of interest. Detects warm objects, good for high vibration, areas of metal.

• Daylight Sensor: controls power consumption of the fixtures based on sunlight levels
