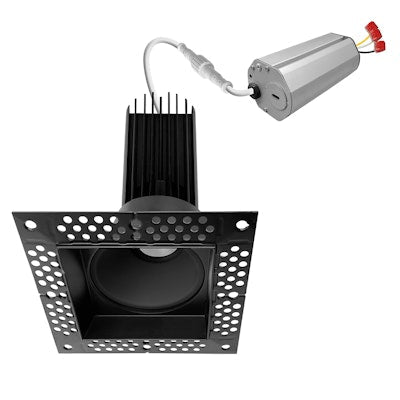

Envision LED-DLJBX-TML-4SQ-15W-5CCT-BLK 4" Square Downlight: Trimless-Line - Black

EnVision's Trimless-Line Square Canless Downlight in black comes in a sleek di-cast aluminum housing for better heat dissipation.

Specification

• Size: 4".

• 15W.

• 120V.

• 1000lm.

• Selectable Color Temperature: 27K, 30K, 35K, 40K, 50K.

• Black.

• Wet Location.

• 38 degree beam angle standard, other options available.

• 90 CRI.

• 2 Step MacAdam Ellipses.

• Operating Temperature -40 degrees Fahrenheit to 114 degrees Fahrenheit.

• Clear Lens.

• 50000 Life Hours.

• Applications: General recessed lighting, residential and multi-family, office and
• meeting rooms, education, healthcare, retail, and hospitality.

• Mud-In ring included in each fixture.

• Metal housing for better heat dissipation.

• Optional emergency backup available.

• Optional new construction plate available.

• This fixture does not fit into a recessed can.

• Can be removed from below the ceiling for service or replacement.

• Pre-wired junction box with circuit wring built in.

• ETL Listed, CSA US, Energy Star, Title 24, JA8 Compliant, CEC Listed, FCC.

• 5 Year Warranty.
