Envision LED-CADM-3M55-30K-UNV 6,8,10" 55W Module: CADM-Line

EnvisionSKU: LED-CADM-3M55-30K-UNV

Price:
Sale price$97.50

Shipping calculated at checkout

Stock:
In stock

Description

EnVision's 20-30W CADM-Line Commercial Downlight in white features the ability to select a desired wattage as well as giving off a soft white light at 3000K. For more high performance LEDs, shop at sonicelectric.com today.
  • Power Selectable: 32W, 40W, 50W.
  • 120-277V.
  • 3200lm, 4000lm, 5000lm.
  • 3000K.
  • White smooth finish.
  • Round or square trims available.
  • Wet Location.
  • Field Adjustable Beam Angle: 24-45 degrees.
  • 90 CRI.
  • 3 Step MacAdam Ellipses.
  • Operating Temperature -40 degrees Fahrenheit to 114 degrees Fahrenheit.
  • Frosted PC lens, non-yellowing.
  • 70000 Life Hours.
  • Applications: General recessed lighting, residential and multi-family, office, hallways, and meeting rooms, education, healthcare, retail, hospitality, and commercial lighting.

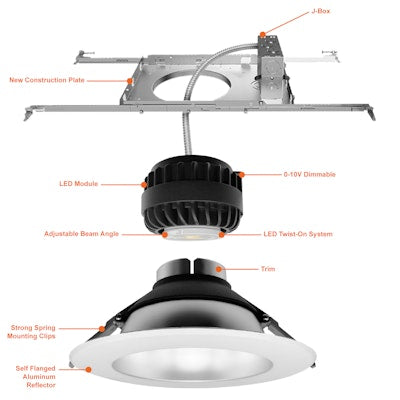

  • Metal housing and trim for better heat dissipation.

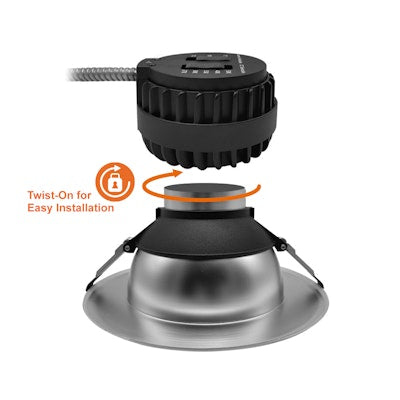

  • Model twists and locks into the trim.
  • SnapTrim Canless: Spring clips with remote J-Box eliminates can.
  • Deep reflector lens reduces glare and optimizes even beam distribution.
  • Select-N-Switch Technology.
  • 0-10V Driver dimmable down to 1%.
  • Flicker Free.
  • Optional new construction plate available.
  • Fixture does not fit into a recessed can.
  • No housing needed in remodel applications.
  • Can be removed from below the ceiling for service or replacement.
  • Pre-wired junction box with circuit wiring built in.
  • ETL Listed, Title 24, FCC, CSA US, JA8 Compliant, Energy Star, CEC.
  • 5 Year Warranty.
