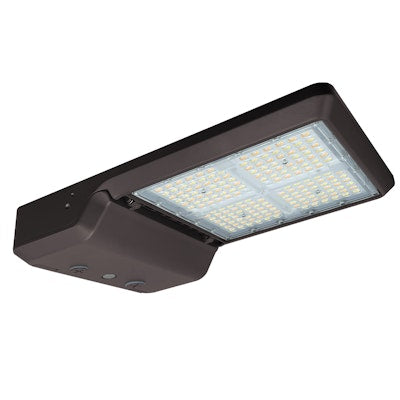

Envision LED-ARL3-5P240-TRI-BZ-UNV Large Area: ARL3 Light G3 Bolt-Line - Bronze

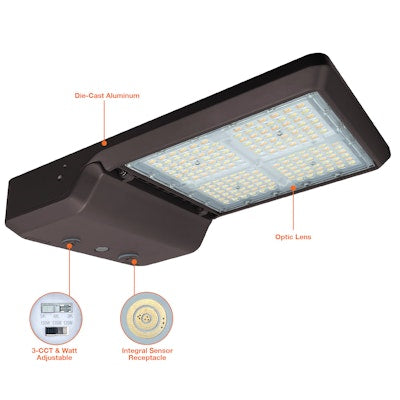

Light up your outdoor area with the new EnVision Bolt Series, our latest line of Area Light fixtures with high lumen per watt efficacy combined with a stunning finish. The EnVision area flood lights are equipped with a die-cast aluminum housing, finished with a matte bronze powder coat paint, and anti-corrosion priming. The Large BOLT series are available in a trunnion, yoke, slip fitter, or straight arm mount. Enjoy lighting up your outdoor are with over 140lm/w+ efficiency.

Specification:

• Watts: 140W/165W/190W/215W/240W

• Lumens: 33,600

• Voltage: 120-277V

• Dimming: 0-10V

• IP Rating: Wet Location

• Beam: Type III

• CRI: 80

• CCT: 3CCT/30K/40K/50K

• Box Qty: 1

• Warranty: 5 Year Limited Warranty

• Emergency:

• Base: N/A

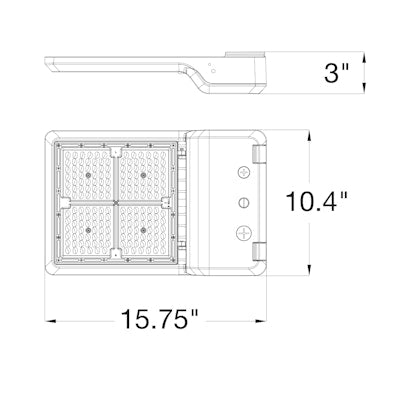

• Size: N/A
