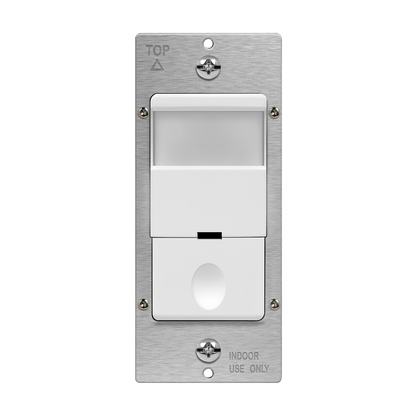

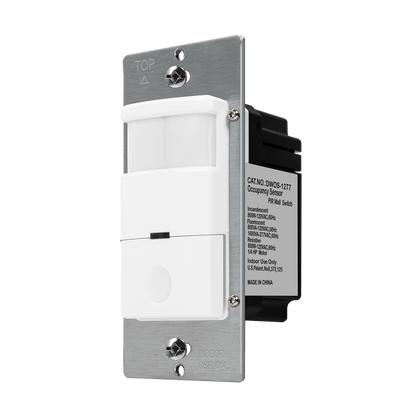

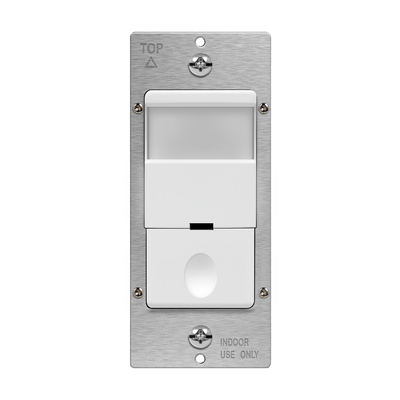

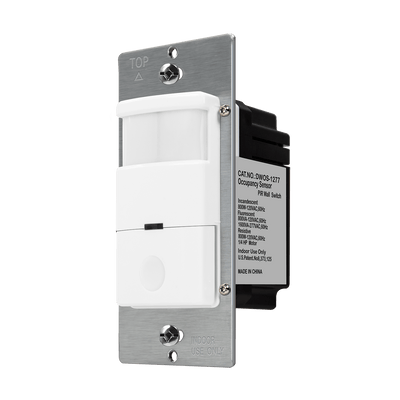

Enerlites DWOS-1277 180° PIR Occupancy/Vacancy Motion Sensor Wall Switch, Single Pole

EnerlitesSKU: DWOS-1277-W

Price:
Sale price$42.00

Shipping calculated at checkout

Stock:
In stock

Description

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch, Neutral Wire Required, Single Pole
DWOS-1277


The ENERLITES DWOS-1277 is a motion sensor wall switch that operates lights using passive infrared (PIR) technology. The motion sensor features a 180° field of view to provide up to 1200 sq.ft. of coverage area. The sensor has 2 modes and operates lights ON/OFF based on occupancy or vacancy in the area. In occupancy mode, lights turn ON automatically when motion is detected, and turn OFF after no motion has been detected for the pre-selected time delay. In vacancy mode, lights must be turned ON manually, and then will turn OFF automatically after no motion has been detected for the pre-selected time delay. The motion sensor's time delay can easily be adjusted from 15 seconds to 30 minutes. The device also includes a manual ON/OFF button. This switch is for single pole use only and it is compatible with incandescent, fluorescent, and LED lights. A neutral wire is required for installation.
Features

  • Passive Infrared Technology (PIR)
  • 180° field of view, up to 1200 sq.ft.
  • Adjustable time delay: 15 sec to 30 min
  • Input voltage: 120/277VAC, 60 Hz
  • Motor: 1/4 HP @ 120VAC
  • Incandescent: 800W @ 120VAC
  • Fluorescent: 800VA @ 120VAC / 1600VA @ 277VAC
  • LED: 150W
  • 2 modes for lighting control: occupancy (auto ON/auto OFF) & vacancy (manual ON/auto OFF)
  • Single pole
  • Neutral wire required
  • Five-year limited warranty
  • UL & CUL Listed
  • Title 24 Compliant
