Description

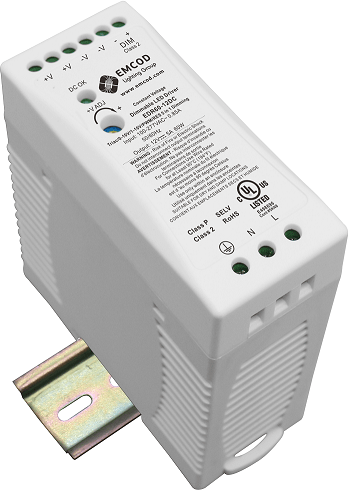

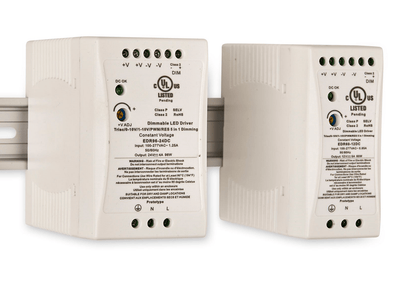

EDR - EMCOD Din Rail Universal Driver EDR ELECTRONIC UNIVERSAL DRIVER Series is Universal Constant Voltage, PWM output, Triac (Phase), 0/1-10V, Resistor, PWM Control, 5 in 1 Dimmable Electronic LED Driver. 5% minimum load. Overload, Short circuit, and Thermal protection. Operating temperature -40C ~ +60C. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Dry and Damp Location. Plastic case for Din Rail installation.
Wattage: 60W, 96W and 100W
Output Voltage: 12V, 24V and 48V PWM 4kHz frequency
Input Voltage: 100V-277V range
All: UL8750 Listed for US and Canada. Class 2 for 12V 60W and for 24V 96W, class P
Part number | Wattage | Output Voltage | Input Voltage | Class 2 | Terminal Block | Secondary Breaker | Num. of circuits |
---|---|---|---|---|---|---|---|
|
60 | 12VDC 4kHz PWM | 100-277V 50/60Hz | ✔ | ✔ | single | |
|
60 | 24VDC 4kHz PWM | 100-277V 50/60Hz | ✔ | ✔ | single | |
|
96 | 24VDC 4kHz PWM | 100-277V 50/60Hz | ✔ | single | ||
|
100 | 12VDC 4kHz PWM | 100-277V 50/60Hz | ✔ | single |
